Operation Table of BCM and Combination Switches: Notes

BCM reads operation status of combination switch using combinations shown in Fig 1 .

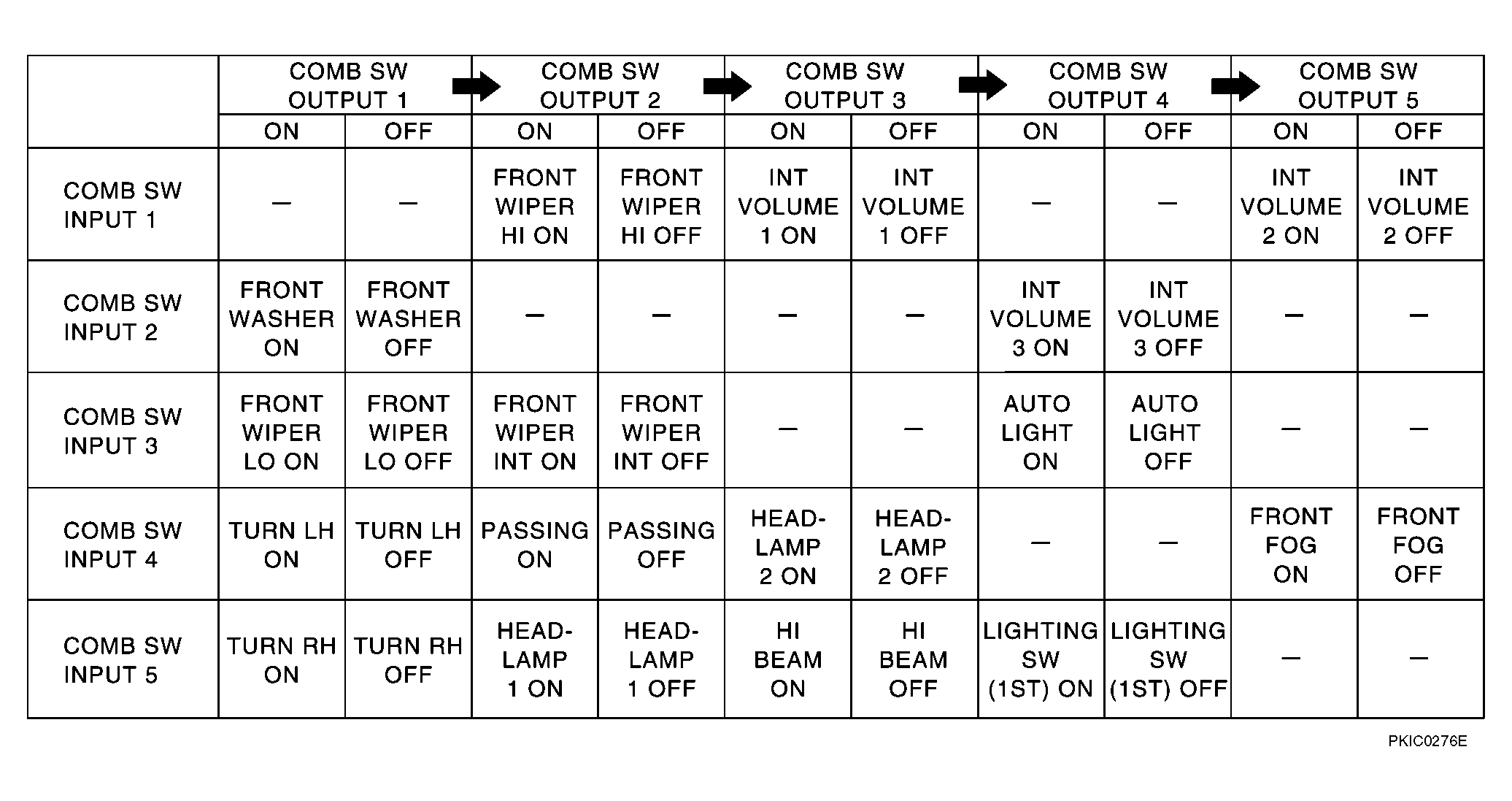

Fig 1: Combination Switches And BCM Operation Table

Courtesy of NISSAN MOTOR CO., U.S.A.
