Input/Output Signal Chart
>>
2WD models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
2WD models

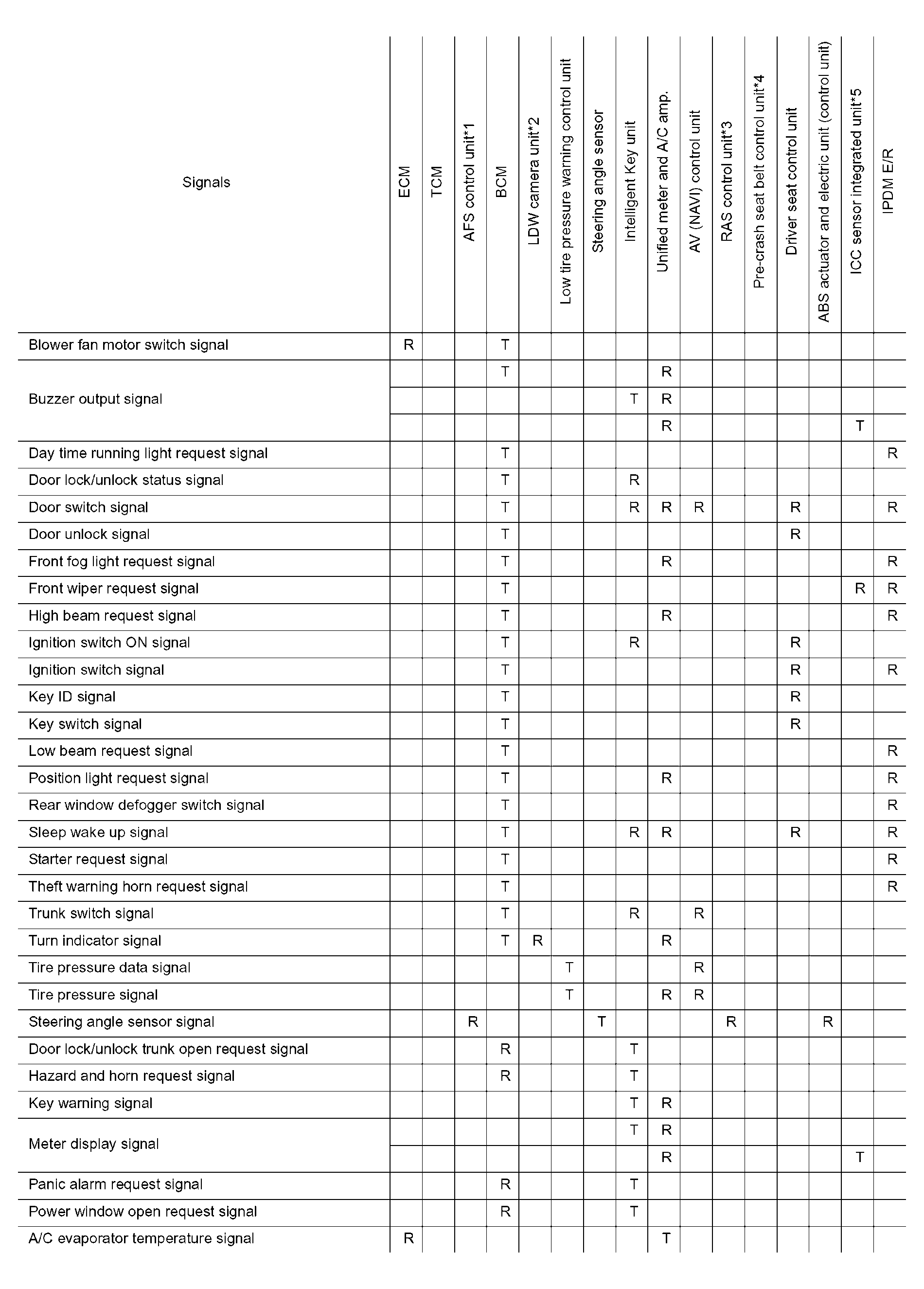

Fig 1: Input/Output Signal Chart - 2WD Models (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

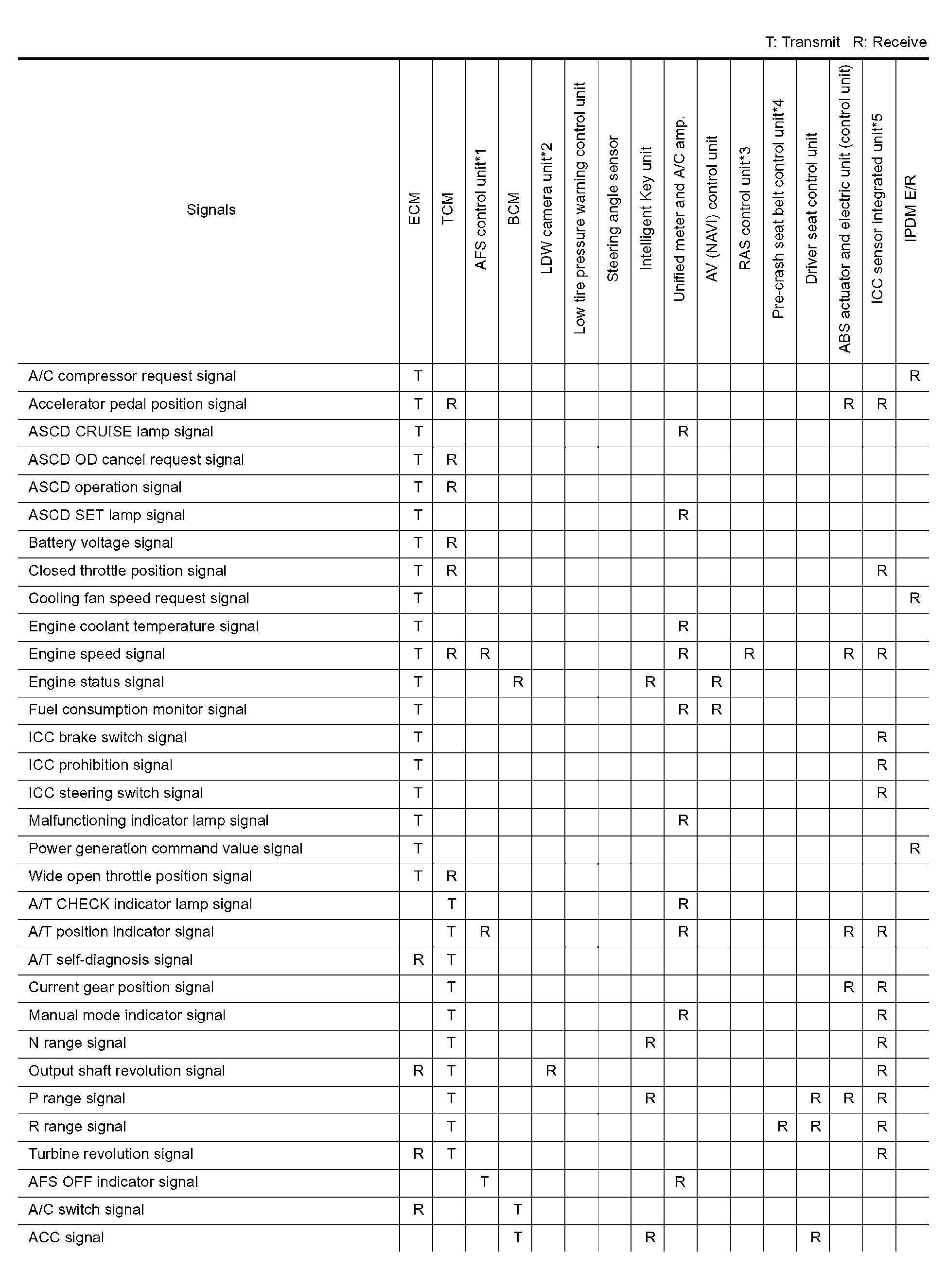

Fig 2: Input/Output Signal Chart - 2WD Models (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

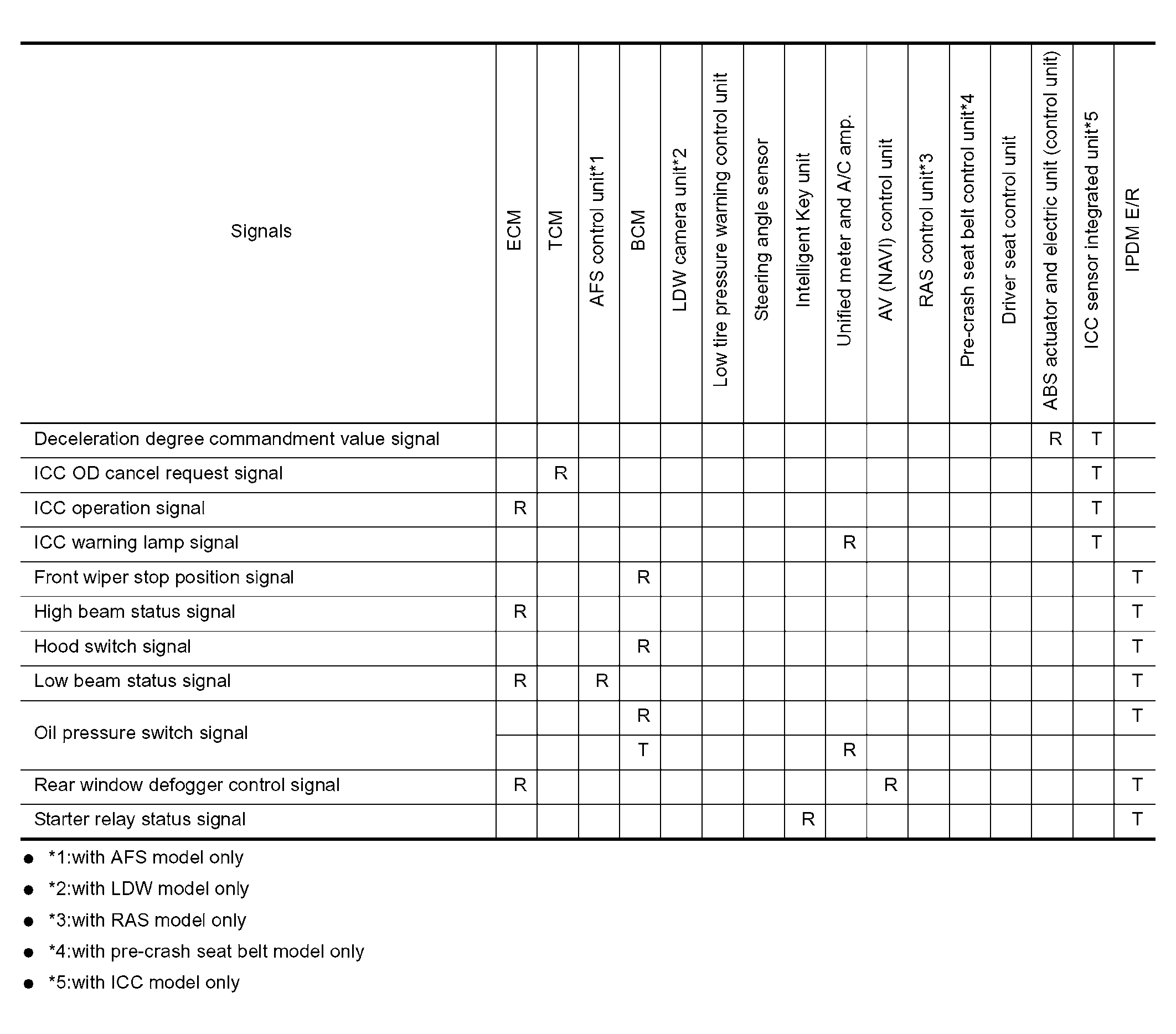

Fig 3: Input/Output Signal Chart - 2WD Models (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

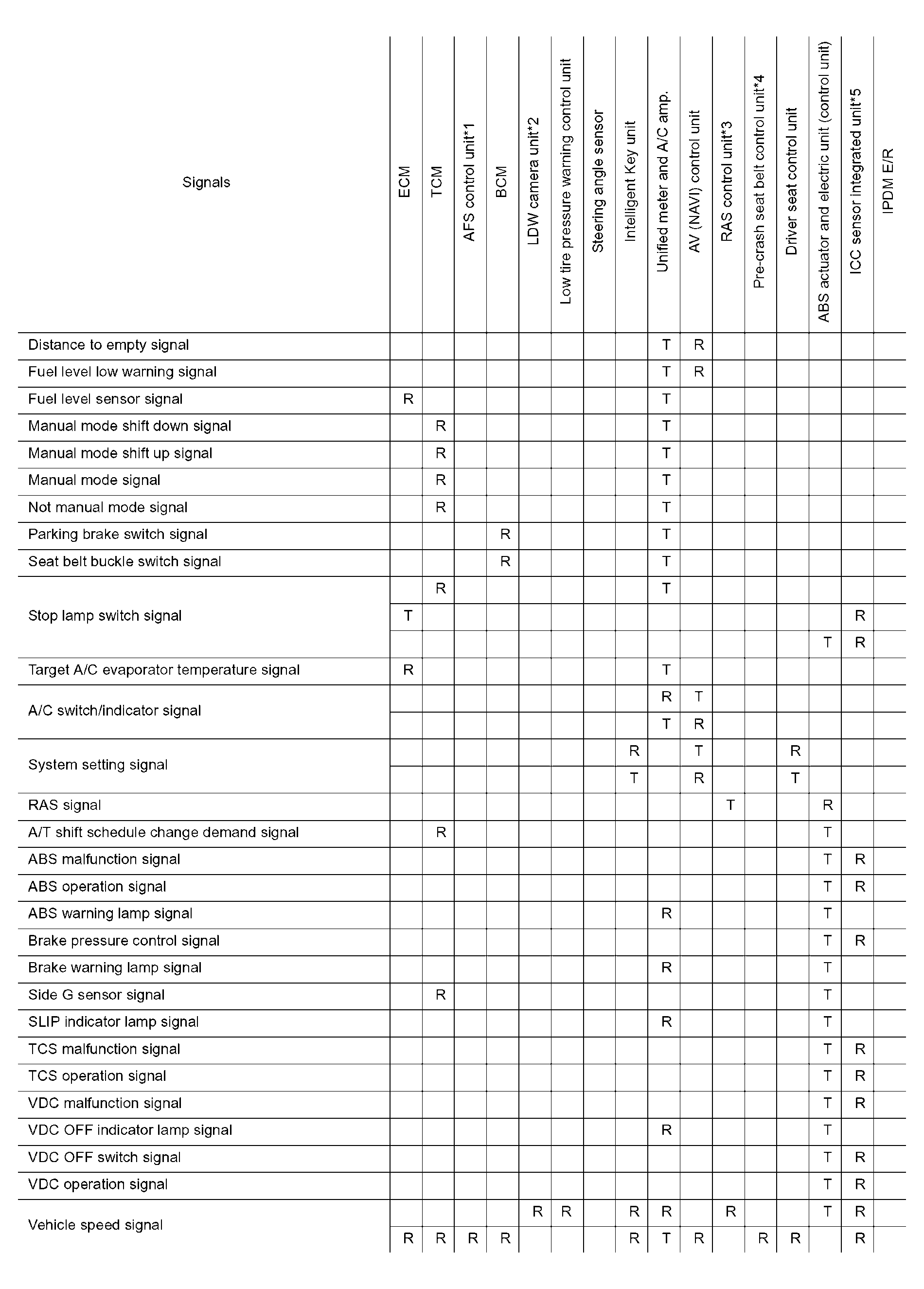

Fig 4: Input/Output Signal Chart - 2WD Models (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
