Rear Fender

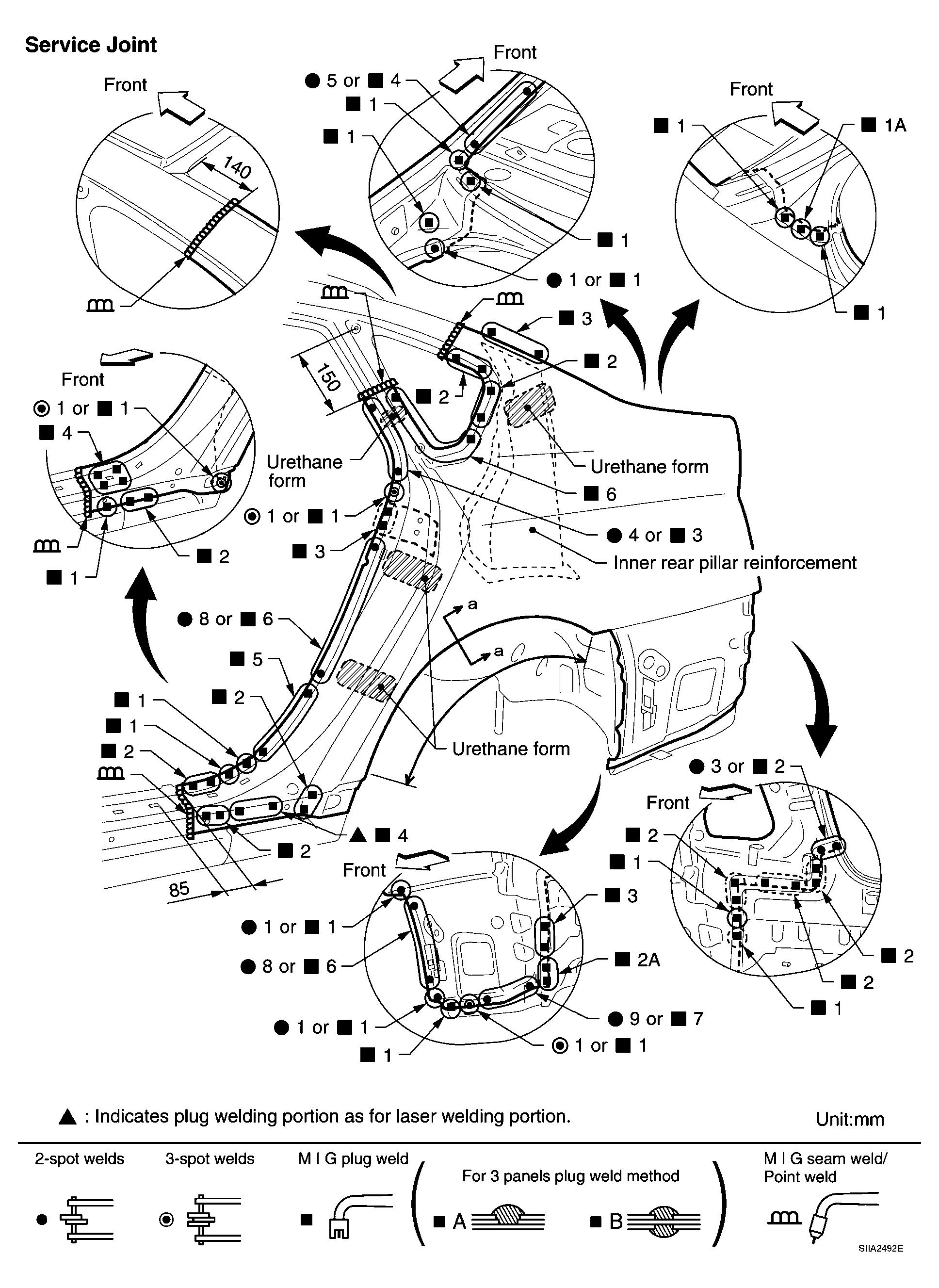

Fig 1: Identifying Rear Fender Service Joints
G04145551Courtesy of NISSAN MOTOR CO., U.S.A.

Change parts

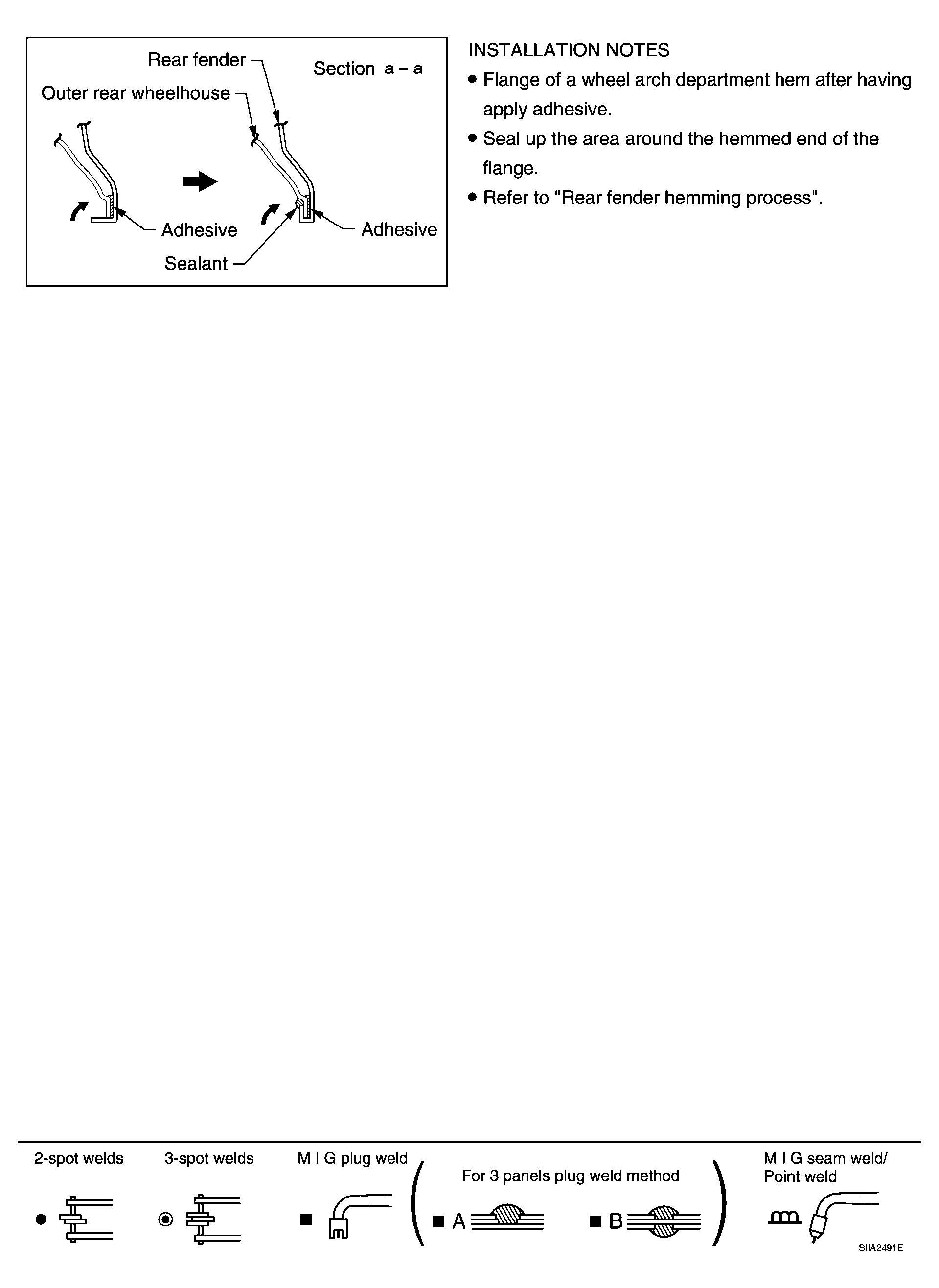

Fig 2: Installing Procedure Of Rear Fender
G04145552Courtesy of NISSAN MOTOR CO., U.S.A.
