Component Parts and Harness Connector Location

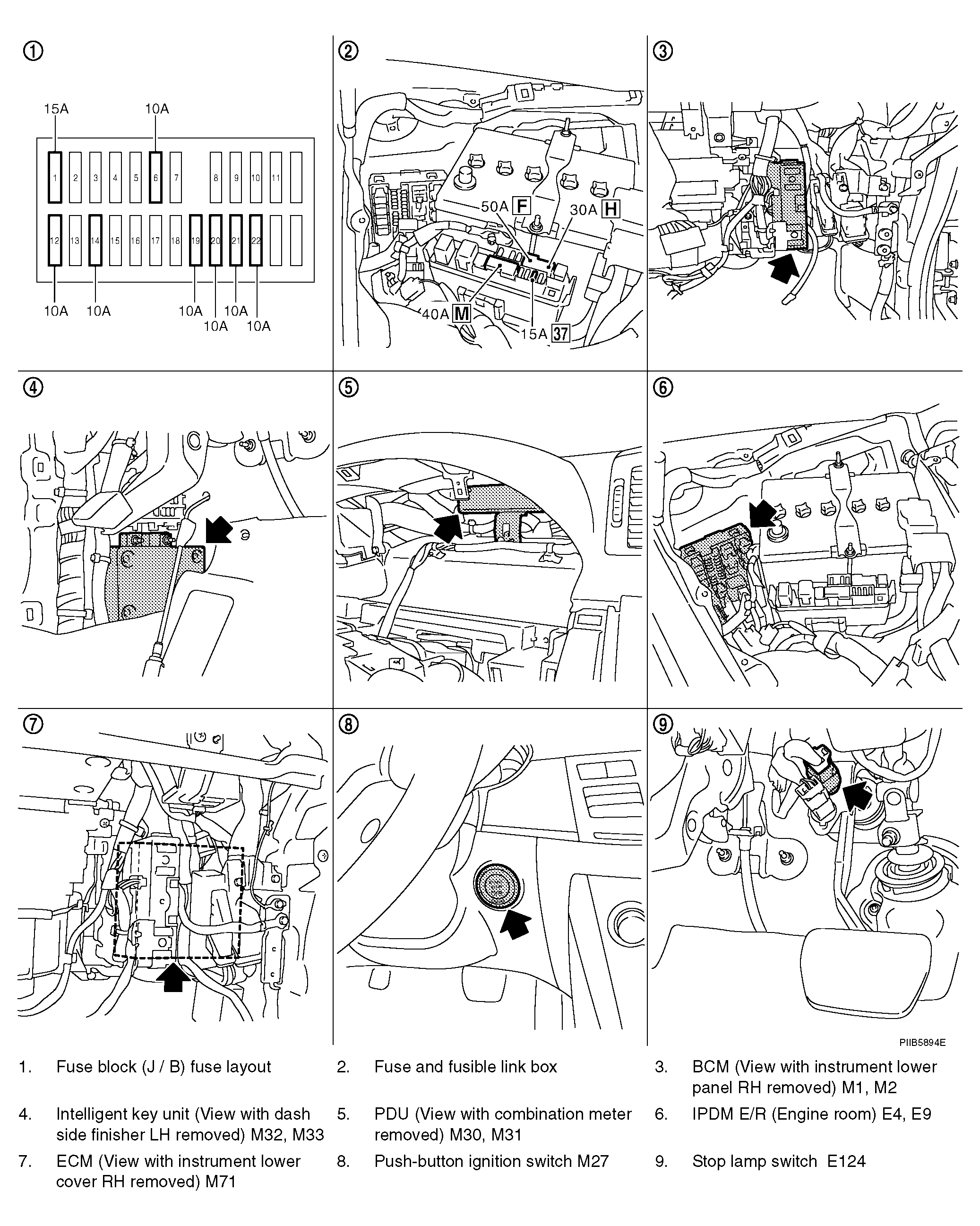

Fig 1: Locating Intelligent Key System/Engine Start Function Parts And Harness Connector (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

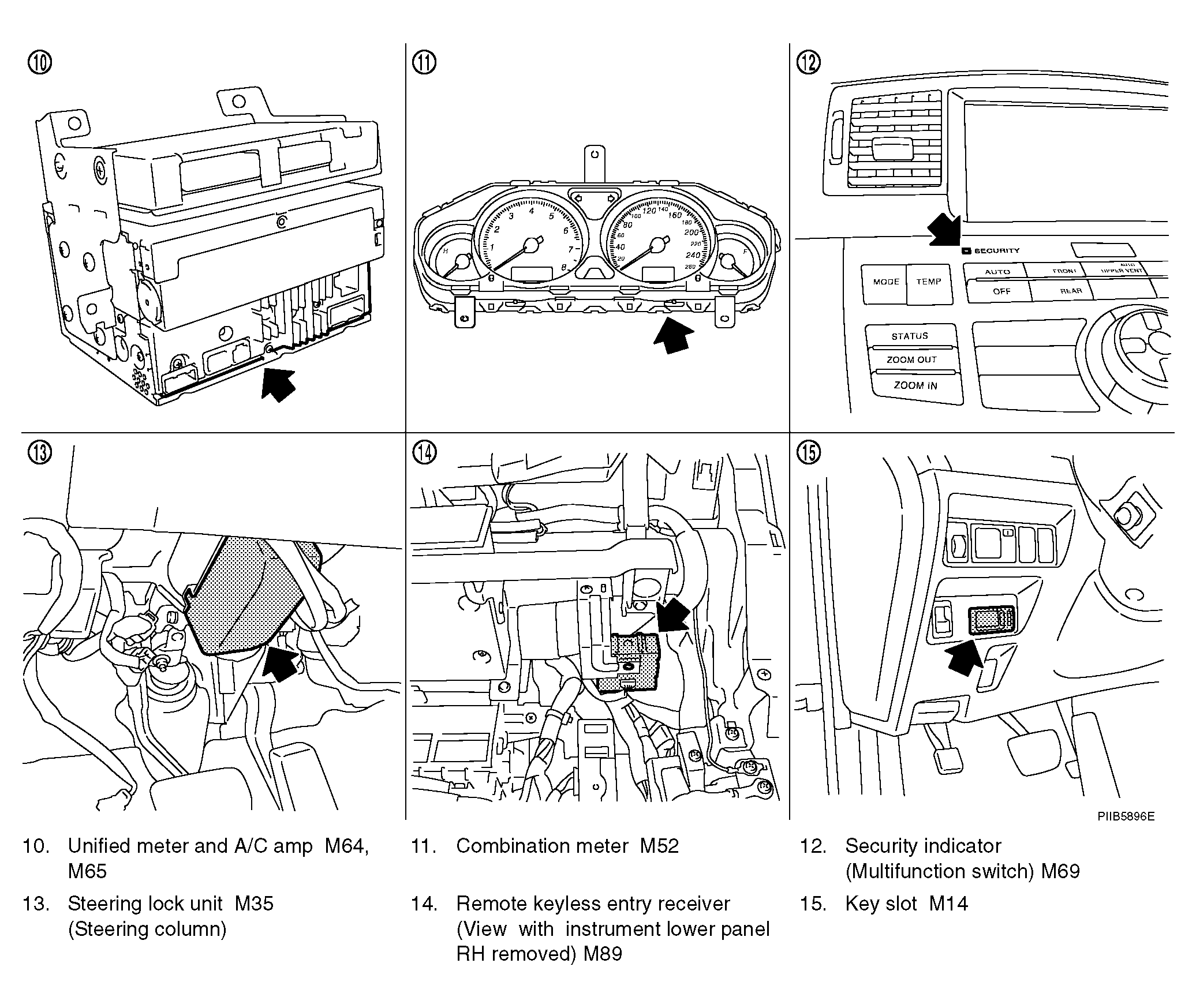

Fig 2: Locating Intelligent Key System/Engine Start Function Parts And Harness Connector (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
