Diagnostic Procedure

1. CHECK STOP LAMP SIGNAL

   With CONSULT-II

   Check ("STOP LAMP SW") in DATA MONITOR mode with CONSULT-II.

   When depressing the break pedal STOP LAMP SW: ON

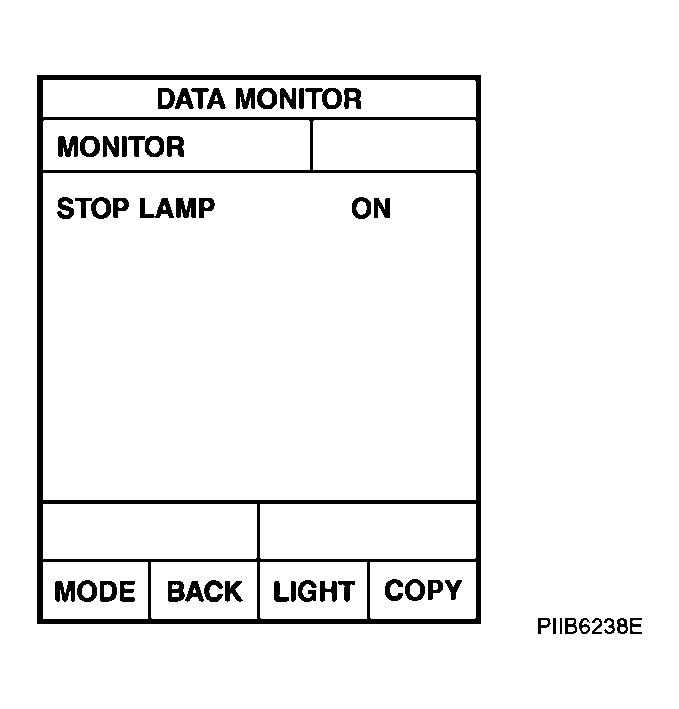

   Fig 1: Display DATA MONITOR Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Without CONSULT-II

   Check voltage between Intelligent Key unit connector and ground.

   VOLTAGE SPECIFICATIONS



   Terminals			Voltage (V)(Approx.)
   (+)		(-)
   Intelligent Key unit connector	Terminal
   M32	11	Ground	Battery voltage

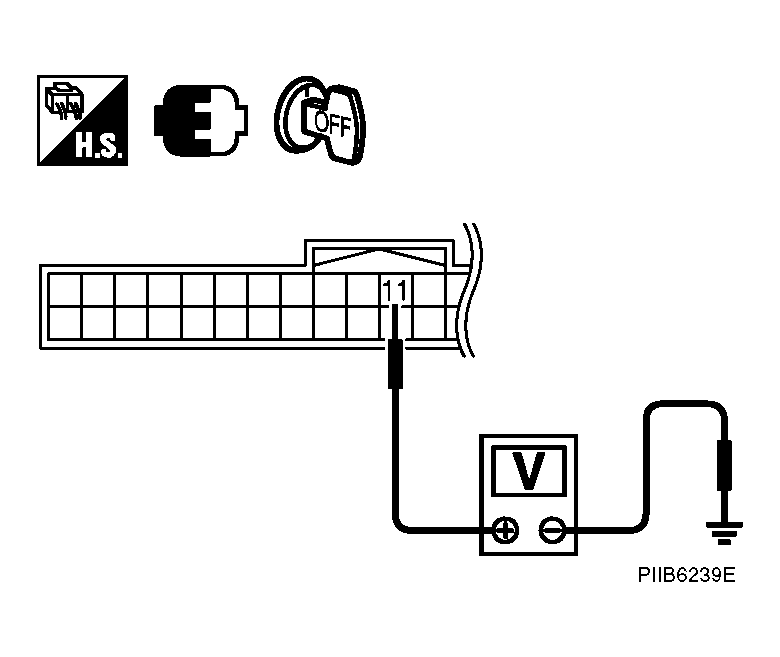

Fig 2: Checking Voltage Between Intelligent Key Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: XXX

NG: Check the following.

• 10A fuse [No.20, located in the fuse block (J/B)]
• Harness for open or short between fuse block and Intelligent Key unit.
