Diagnostic Procedure

1. CHECK HARNESS CONTINUITY
   1. Turn ignition switch OFF.
   2. Disconnect Intelligent Key unit and push-button ignition switch connector.
   3. Check continuity between Intelligent Key unit connector and push-button ignition switch connector.
      CONTINUITY CONDITIONS



      A		B		Continuity
      Intelligent Key unit connector	Terminal	Push-button ignition switch connector	Terminal
      M32	39	M27	4	Yes

   4. Check continuity between Intelligent Key unit connector and ground.
      CONTINUITY CONDITIONS



      A		Ground	Continuity
      Intelligent Key unit connector	Terminal
      M32	39		No

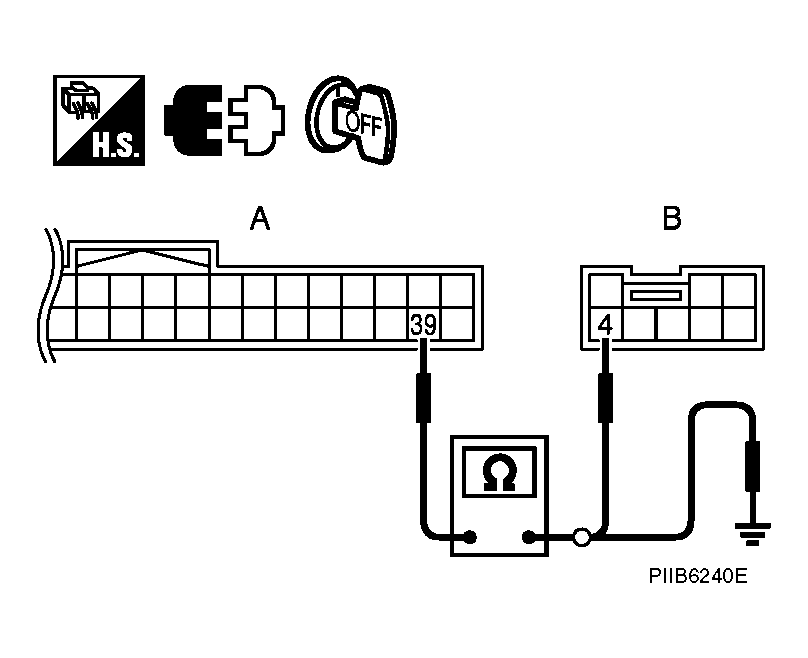

   Fig 1: Checking Continuity Between Intelligent Key Unit Connector, Push-Button Ignition Switch Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: GO TO 2.

   NG: Repair or replace harness.

2. CHECK PUSH-BUTTON IGNITION SWITCH

   Check push-button ignition switch.

   CONTINUITY CONDITIONS



   Terminal		Push-button ignition switch condition	Continuity
   Push-button ignition switch
   1	4	Pushed	Yes
   		Released	No

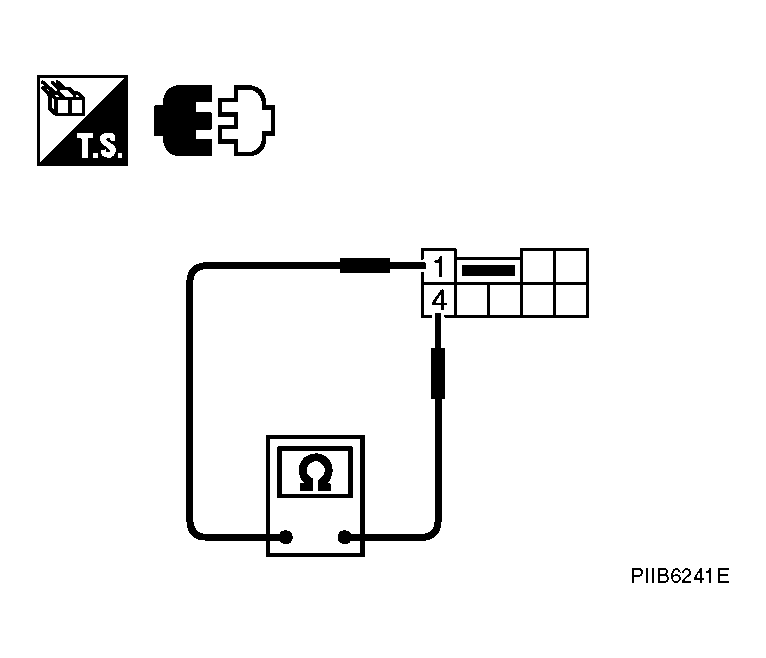

Fig 2: Checking Push-Button Ignition Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the condition of harness and conenctor. If it is OK, check the self-diagnosis results using CONSULT-II again.

NG: Replace push-button ignition switch.
