Check Horn Function

First perform the "SELF-DIAG RESULTS" of "BCM" with CONSULT-II, then perform the trouble diagnosis of malfunction system indicated in "SELF-DIAG RESULTS" of "BCM". Refer to "CAN COMMUNICATION INSPECTION USING CONSULT-II (SELF-DIAGNOSIS) ".

1. CHECK HORN OPERATION

   Check if horn sounds with horn switch.

   Does horn operate?

   YES: GO TO 2.

   NO: Check horn circuit. Refer to "HORN ".

2. CHECK IPDM E/R INPUT SIGNAL

   Check voltage between IPDM E/R connector and ground.

   VOLTAGE SPECIFICATIONS



   Terminals			Voltage (V) (Approx.)
   (+)		(-)
   IPDM E/R connector	Terminal
   E9	48	Ground	Battery voltage

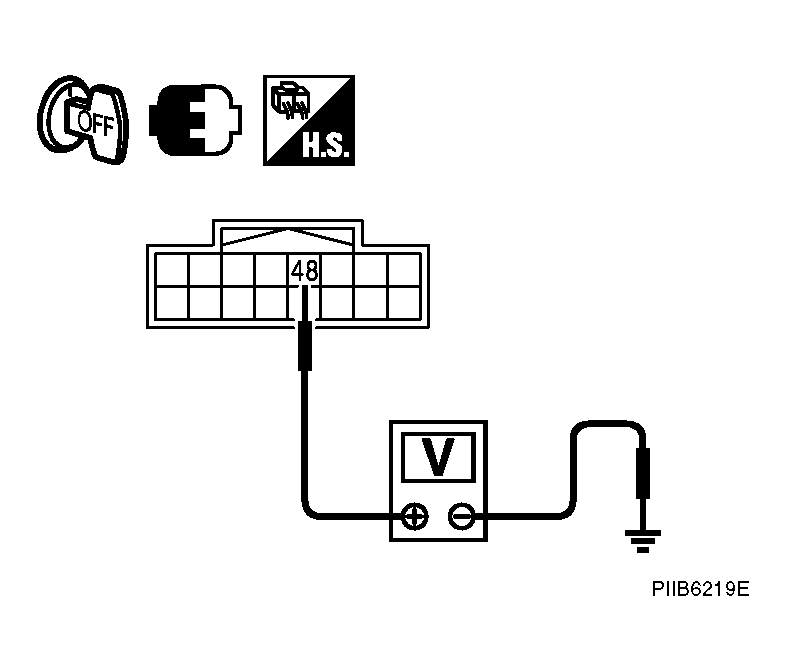

   Fig 1: Checking Voltage Between IPDM E/R Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: Replace IPDM E/R.

   NG: GO TO 3.

3. CHECK HORN RELAY CIRCUIT
   1. Turn ignition switch OFF.
   2. Disconnect IPDM E/R and horn relay connector.
   3. Check continuity between IPDM E/R connector and horn relay connector.
      CONTINUITY CONDITIONS



      A		B		Continuity
      IPDM E/R connector	Terminal	Horn relay connector	Terminal
      E9	48	E20	1	Yes

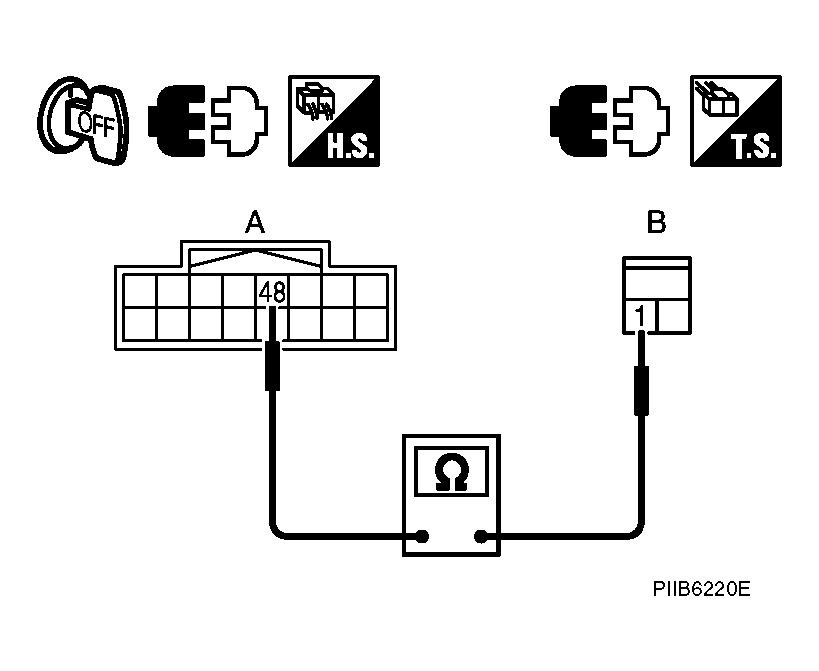

   Fig 2: Checking Continuity Between IPDM E/R Connector And Horn Relay Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   OK: Check harness connection.

   NG: Repair or replace harness.
