Check Ignition Switch Position
- CHECK IGNITION POWER SUPPLY

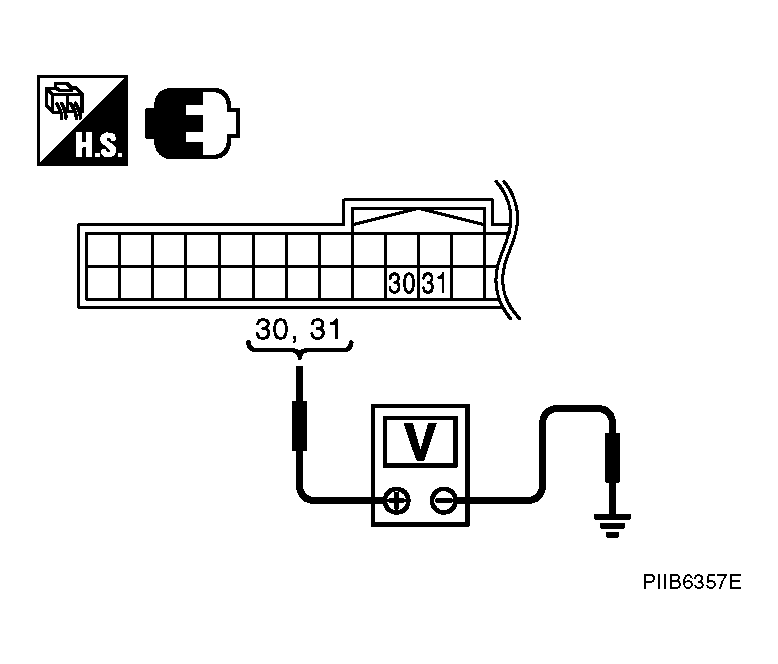

Check voltage between Intelligent Key unit connector and ground.
VOLTAGE SPECIFICATIONSTerminals Ignition switch position (+) (-) Intelligent Key unit connector Terminal OFF ACC ON M32 30 Ground 0 Battery voltage Battery voltage 31 0 0 Battery voltage Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK: Ignition power supply is OK.
NG: Check the following.
- Repair or replace Intelligent Key unit power supply circuit.
- Check 10A fuse [No. 6, located in the fuse block (J/B)]
- Check 10A fuse [No. 12, located in the fuse block (J/B)]
