Check Key Slot

CHECK KEY SLOT INPUT SIGNAL

Check voltage between Intelligent Key unit harness connector and ground.

VOLTAGE SPECIFICATIONS

Terminals			Condition	Voltage (V) (Approx.)
(+)		(-)
Intelligent Key unit connector	Terminal	(-)
M32	19	Ground	Intelligent Key inserted	Battery voltage
M32	19	Ground	Intelligent Key removed	0

OK or NG

OK: Key slot is OK.

NG: GO TO 2.

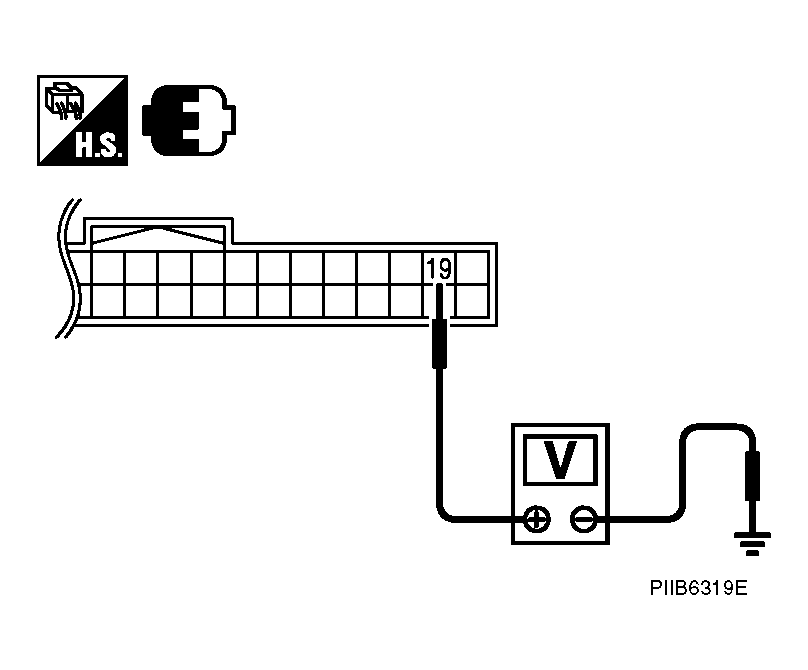

Fig 1: Checking Voltage Between Intelligent Key Unit Harness Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK KEY SLOT POWER SUPPLY CIRCUIT

Turn ignition switch OFF.
Disconnect key slot connector.
Check voltage between slot connector and ground.

VOLTAGE SPECIFICATIONS

Terminals			Voltage (V) (Approx.)
(+)		(-)
Key slot connector	Terminal	(-)
M14	1	Ground	Battery voltage

OK or NG

OK: GO TO 3.

NG: Repair or replace key slot power supply circuit.

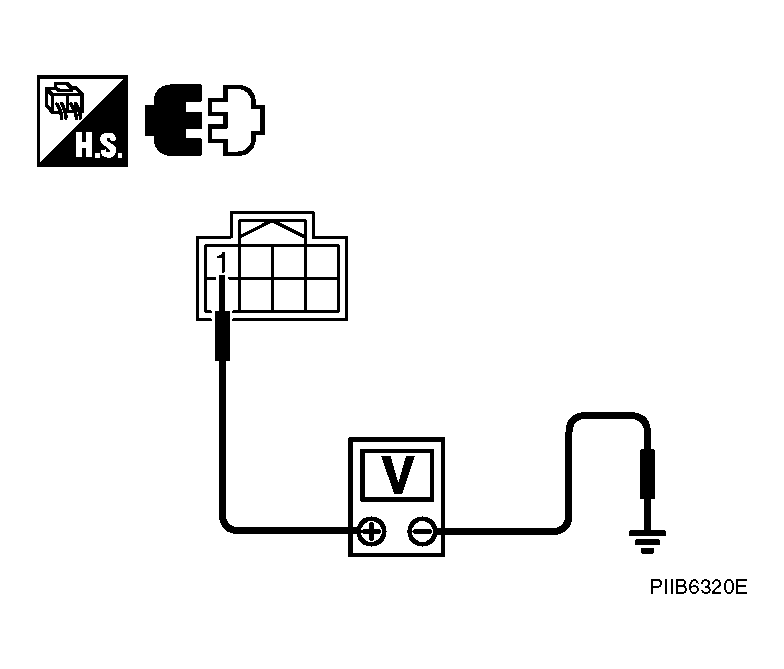

Fig 2: Checking Voltage Between Slot Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK KEY SLOT

Check key slot.

CONTINUITY CONDITIONS

Terminal		Condition	Continuity
Key slot		Condition	Continuity
1	3	Intelligent Key inserted	Yes
1	3	Intelligent Key removed	No

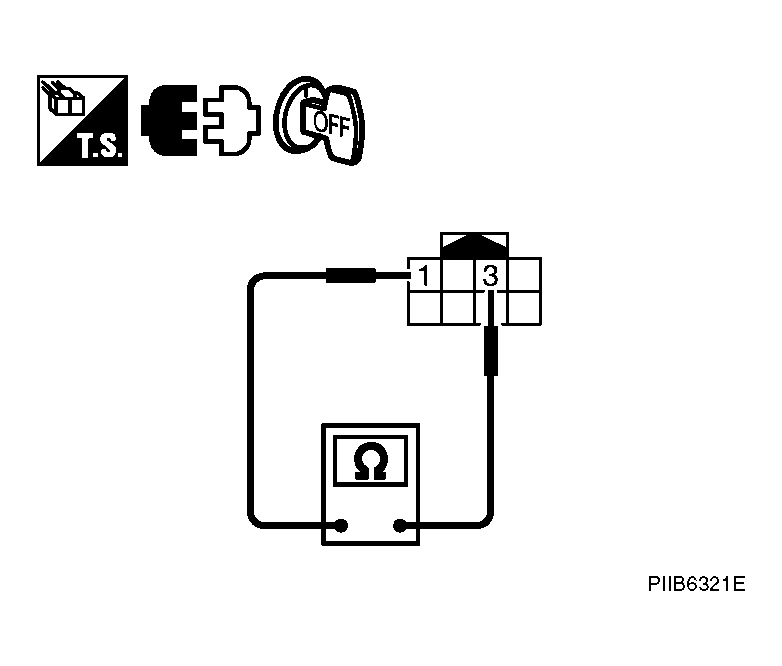

Fig 3: Checking Key Slot

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: Replace key slot.

CHECK KEY SLOT GROUND CIRCUIT

Check continuity between key slot connector and ground.

CONTINUITY CONDITIONS

Key slot connector	Terminal	Ground	Continuity
M14	8	Ground	Yes

OK or NG

OK: GO TO 5.

NG: Repair or replace key slot ground circuit.

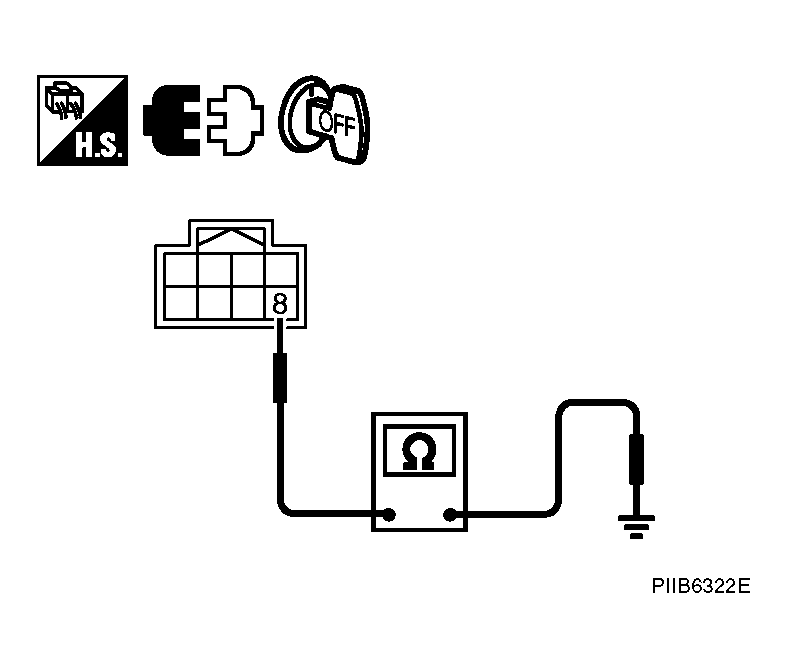

Fig 4: Checking Continuity Between Key Slot Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK KEY SWITCH CIRCUIT

Disconnect Intelligent Key unit connector.

Check continuity between Intelligent Key unit connector 7 and key slot connector.

CONTINUITY CONDITIONS

A		B		Continuity
Intelligent Key unit connector	Terminal	Key slot connector	Terminal	Continuity
M32	19	M14	2	Yes

Check continuity between Intelligent Key unit connector and ground.

CONTINUITY CONDITIONS

A		Ground	Continuity
Intelligent Key unit connector	Terminal
M32	19		No

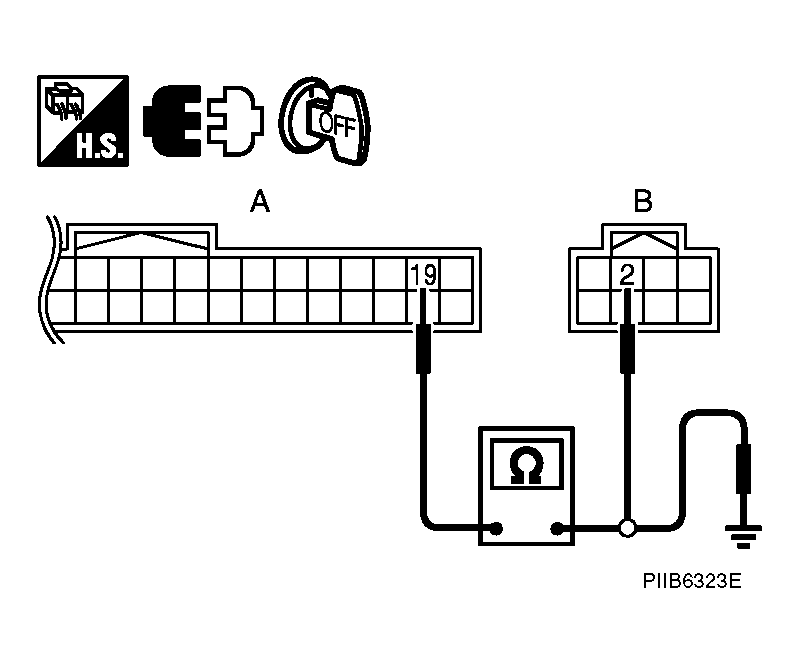

Fig 5: Checking Continuity Between Intelligent Key Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Check the condition of harness and harness connector.

NG: Repair or replace harness between Intelligent Key unit and key slot.
