Front Lifting Motor Circuit Check

  1. CHECK FRONT END SEAT LIFTING MECHANISM

    Check the following.

    • Operation malfunction caused by lifter mechanism deformation, pinched harness or other foreign materials
    • Operation malfunction caused by foreign materials adhered to the front lifting motor or lead screws
    • Operation malfunction and interference with other parts by installation

    OK or NG

    OK: GO TO 2.

    NG: Repair or replace the malfunctioning part and check again.

  2. CHECK FUNCTION

    With CONSULT-II

    Check operation with "SEAT LIFTER FR" in ACTIVE TEST.

    TEST ITEM DESCRIPTION

    Test item Description
    SEAT
    LIFTER FR
    The front lifting motor is activated by receiving the drive signal.

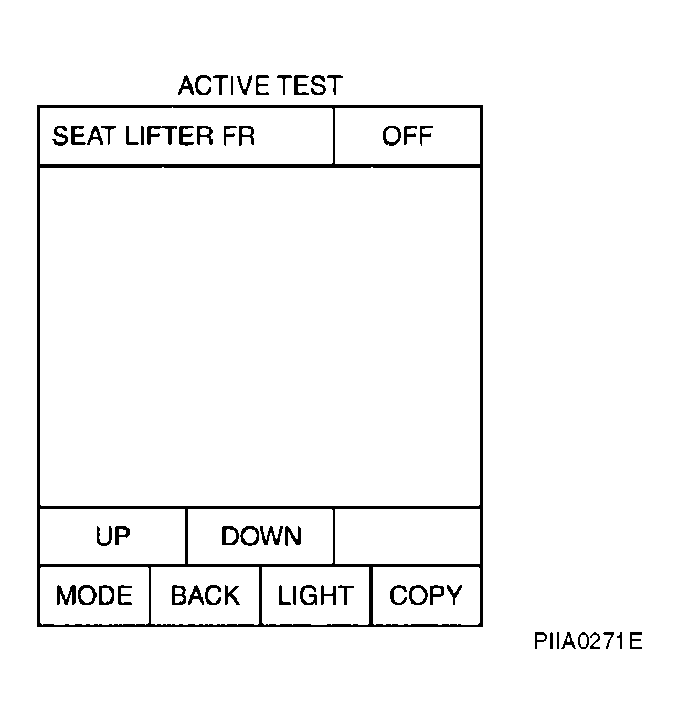

    Fig 1: CONSULT II ACTIVE TEST Screen
    G04145937Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Front lifting motor circuit is OK.

    NG: GO TO 3.

  3. CHECK FRONT LIFTING MOTOR CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect driver seat control unit and front lifting motor connector.
    3. Check continuity between driver seat control unit connector and front lifting motor connector.
      DRIVER SEAT CONTROL UNIT CONNECTOR AND FRONT LIFTING MOTOR CONNECTOR CONTINUITY

      A B Continuity
      Driver seat control unit connector Terminal Front lifting motor connector Terminal
      B205 37 B209 37 Yes
      45 45
    4. Check continuity between driver seat control unit connector and ground.
    DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND CONTINUITY

    A Ground Continuity
    Driver seat control unit connector Terminal
    B205 37 No
    45

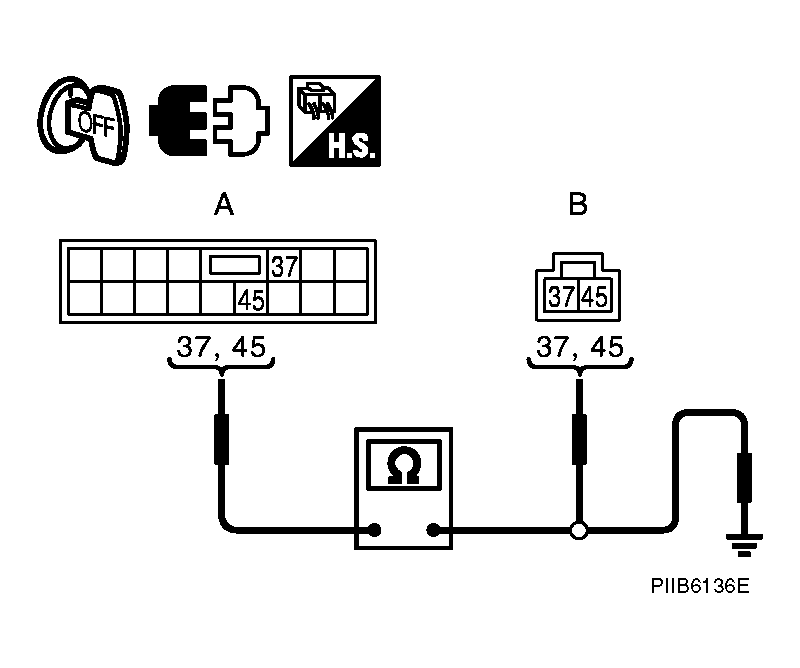

    Fig 2: Identifying Continuity Between Driver Seat Control Unit Connector And Front Lifting Motor Connector
    G04145938Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 4.

    NG: Repair or replace harness.

  4. CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL
  1. Connect the driver seat control unit connector.
  2. Check voltage between driver seat control unit connector and ground.
DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND VOLTAGE

Driver seat control unit connector Terminals Condition Voltage (V) (Approx)
(+) (-)
B205 37 Ground Lifting switch (front) ON (DOWN operation) Battery voltage
Other than above 0
45 Lifting switch (front) ON (UP operation) Battery voltage
Other than above 0

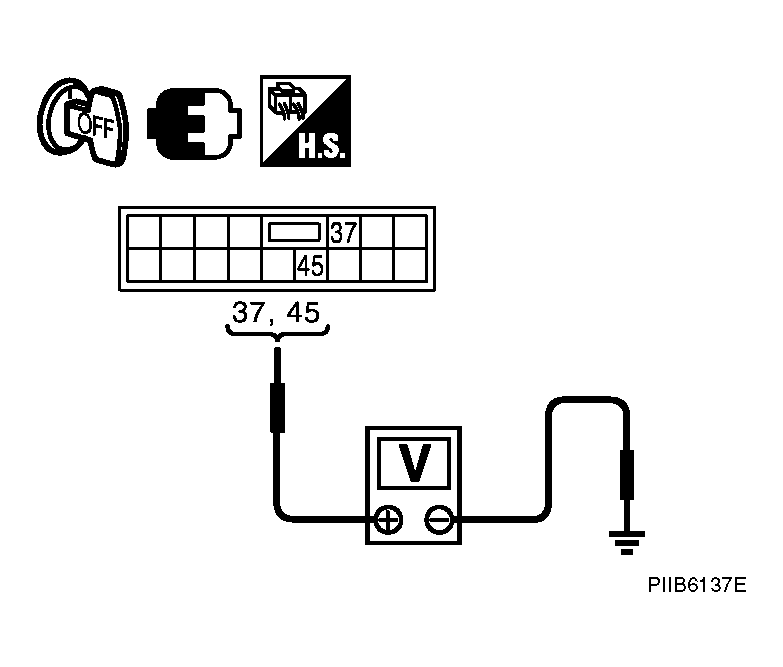

Fig 3: Identifying Voltage Between Driver Seat Control Unit Connector And Ground
G04145939Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace front lifting motor.

NG: Replace driver seat control unit.
