Front Lifting Sensor Circuit Check

  1. CHECK FUNCTION

    With CONSULT-II

    Check operation with "LIFT FR PULSE" on the DATA MONITOR to make sure the pulse changes.

    MONITOR ITEM CONTENTS

    Monitor item [OPERATION or UNIT] Contents
    LIFT FR PULSE - The front lifting position (pulse) judged from the lifting sensor (front) is displayed
    Fig 1: CONSULT II Display - Data Monitor
    G04077655Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch OFF.
    2. Check signal between driver seat control unit connector and ground, with oscilloscope.
    DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND SIGNAL

    Sliding sensor front lifting sensor Terminals Condition Signal (Reference value)
    (+) (-)
    B214 25 Ground Front lifting motor operation
    G04130142

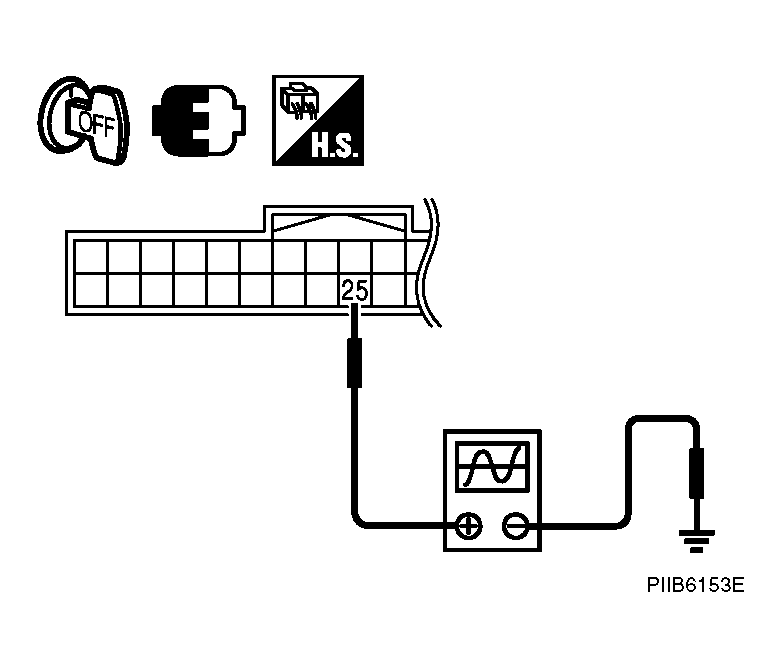

    Fig 2: Identifying Signal Between Driver Seat Control Unit Connector And Ground, With Oscilloscope
    G04145961Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Sliding sensor front lifting sensor is OK.

    NG: GO TO 2.

  2. CHECK FRONT LIFTING MOTOR SENSOR CIRCUIT HARNESS CONTINUITY
    1. Disconnect driver seat control unit and sliding sensor front lifting sensor connector.
    2. Check continuity between driver seat control unit connector and sliding sensor front lifting sensor connector.
      DRIVER SEAT CONTROL UNIT CONNECTOR AND SLIDING SENSOR FRONT LIFTING SENSOR CONNECTOR CONTINUITY

      A B Continuity
      Driver seat control unit connector Terminal Sliding sensor front lifting sensor connector Terminal
      B204 25 B214 25 Yes
      31 31B
    3. Check continuity between driver seat control unit connector and ground.
      DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND CONTINUITY

      A Ground Continuity
      Driver seat control unit connector Terminal
      B204 25 No
      31

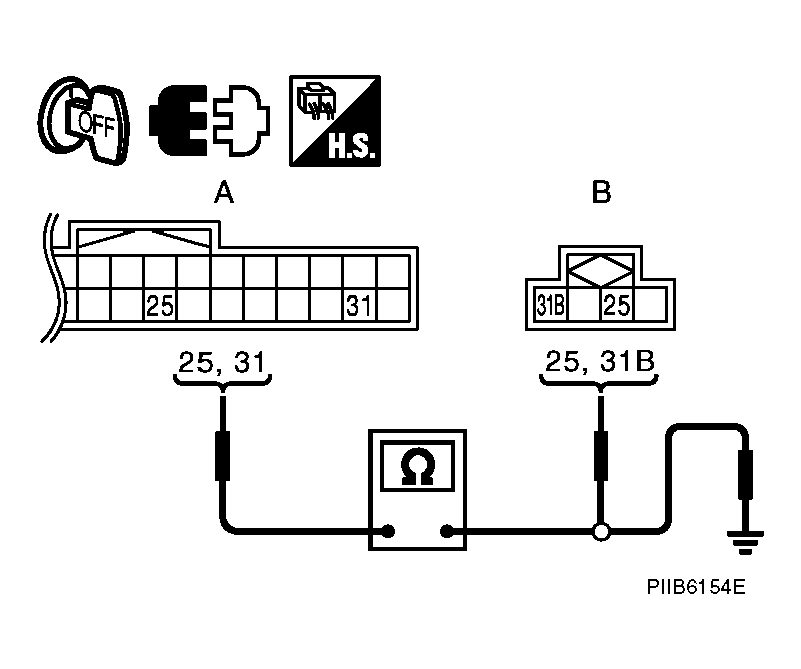

      Fig 3: Identifying Continuity Between Driver Seat Control Unit Connector And Sliding Sensor Front Lifting Sensor Connector
      G04145962Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: GO TO 3.

    NG: Repair or replace harness.

  3. CHECK DRIVER SEAT CONTROL UNIT OUTPUT
    1. Connect driver seat control unit connector.
    2. Check voltage between driver seat control unit connector and ground.
    DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND VOLTAGE

    Terminals Voltage (V) (Approx.)
    (+) (-)
    Driver seat control unit connector Terminal
    B204 25 Ground 5

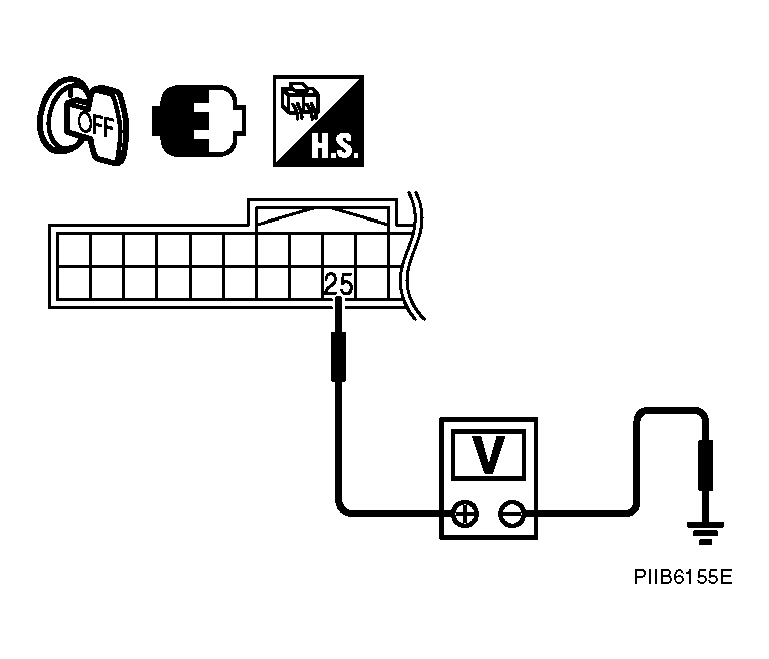

    Fig 4: Identifying Voltage Between Driver Seat Control Unit Connector And Ground
    G04145963Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK: Replace sliding sensor front lifting sensor.

    NG: Replace automatic drive positioner control unit.
