Sliding Switch Circuit Check

CHECK FUNCTION

With CONSULT-II

With "SLIDE SW-FR, SLIDE SW-RR" on the DATA MONITOR, operate the sliding switch to check ON/OFF operation.

MONITOR ITEM CONTENTS

Monitor item [OPERATION or UNIT]		Contents
SLIDE SW-FR	"ON/OFF"	ON / OFF status judged from the sliding switch (FR) signal is displayed.
SLIDE SW-RR	"ON/OFF"	ON / OFF status judged from the sliding switch (RR) signal is displayed.

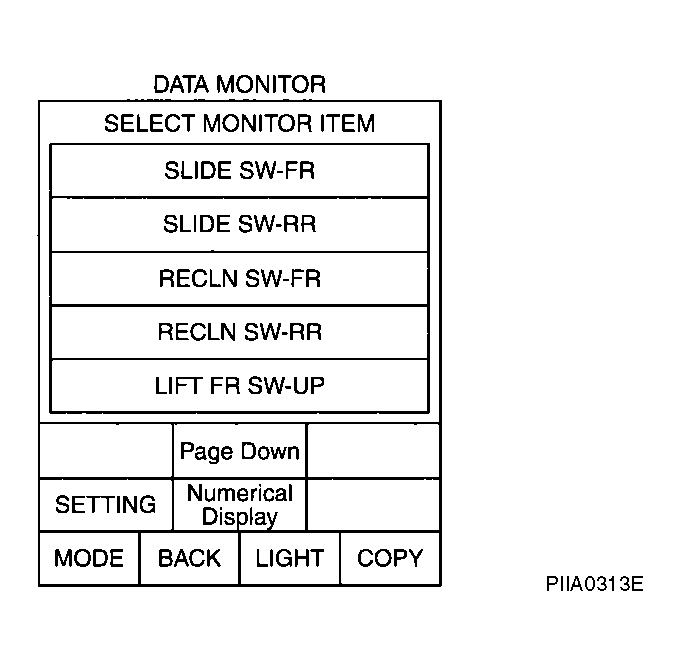

Fig 1: CONSULT II DATA MONITOR Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND VOLTAGE

Driver seat control unit connector	Terminal		Condition	Voltage (V) (Approx.)
Driver seat control unit connector	(+)	(-)	Condition	Voltage (V) (Approx.)
B204	11	Ground	Sliding switch ON (BACKWARD operation)	0
	11		Other than above	Battery voltage
	26		Sliding switch ON (FORWARD operation)	0
	26		Other than above	Battery voltage

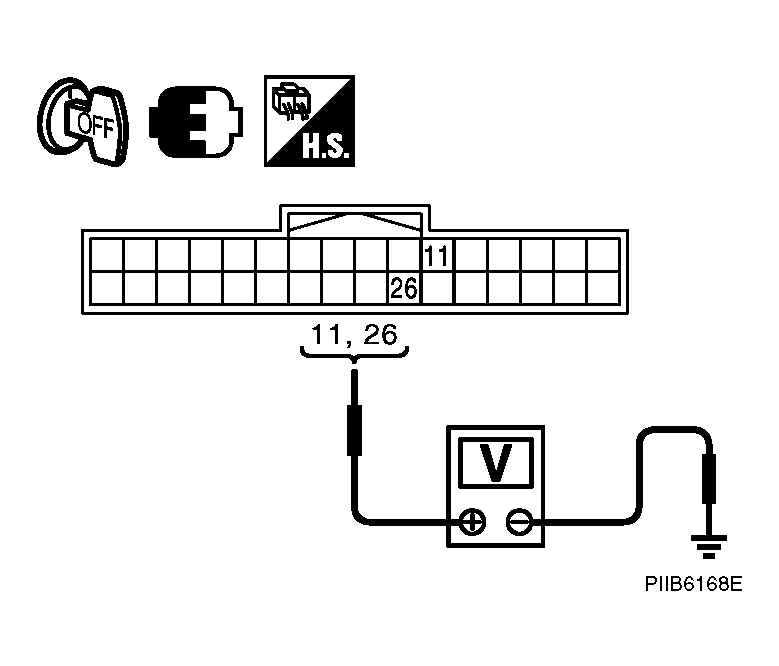

Fig 2: Identifying Voltage Between Driver Seat Control Unit Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Sliding switch circuit is OK.

NG: GO TO 2.

CHECK SLIDING SWITCH CIRCUIT HARNESS CONTINUITY

Check continuity between driver seat control unit connector and power seat switch connector.

DRIVER SEAT CONTROL UNIT CONNECTOR AND POWER SEAT SWITCH CONNECTOR CONTINUITY

A		B		Continuity
Driver seat control unit connector	Terminal	Power seat switch connector	Terminal	Continuity
B204	11	B213	11	Yes
B204	26	B213	26	Yes

Check continuity between driver seat control unit connector and ground.

DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND CONTINUITY

A		Ground	Continuity
Driver seat control unit connector	Terminal
B204	11		No
	26

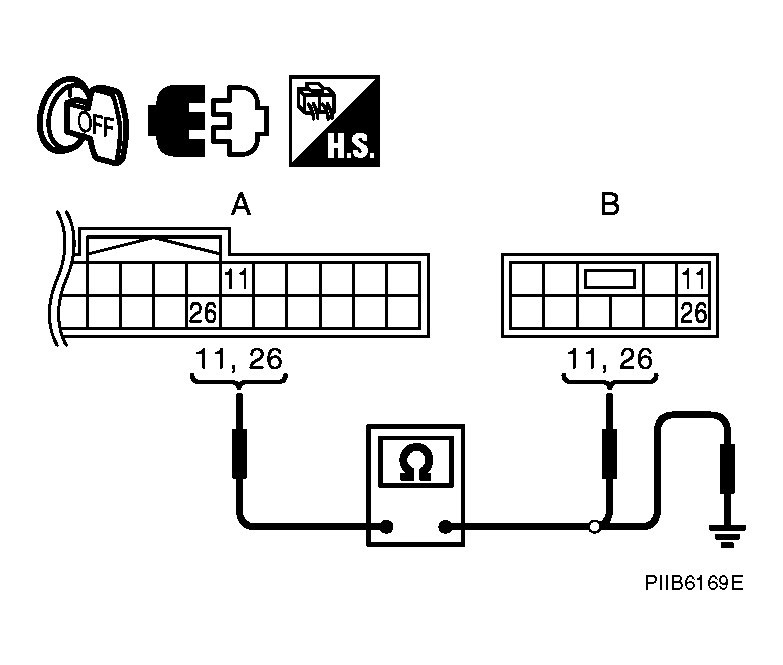

Fig 3: Identifying Continuity Between Driver Seat Control Unit Connector And Power Seat Switch Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: Repair or replace harness.

CHECK SLIDING SWITCH

Check continuity between power seat switch terminals.

POWER SEAT SWITCH TERMINALS CONTINUITY

Power seat switch	Terminal		Condition	Continuity
B213	11	32	Sliding switch ON (BACKWARD operation)	Yes
	11		Other than above	No
	26		Sliding switch ON (FORWARD operation)	Yes
	26		Other than above	No

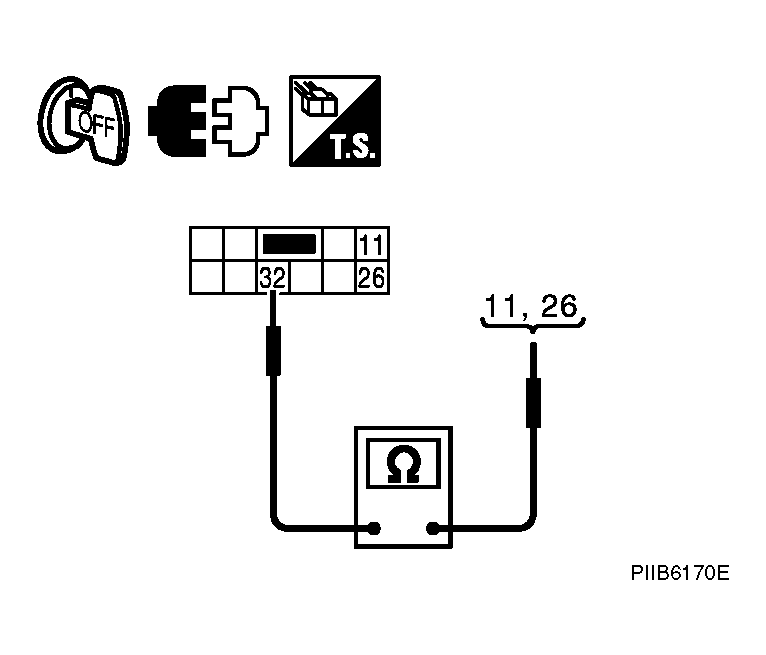

Fig 4: Identifying Continuity Between Power Seat Switch Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace driver seat control unit.

NG: Replace power seat switch.
