Special Service Tools
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOL CHART
| Tool number (Kent-Moore No.) Tool name |
Description | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

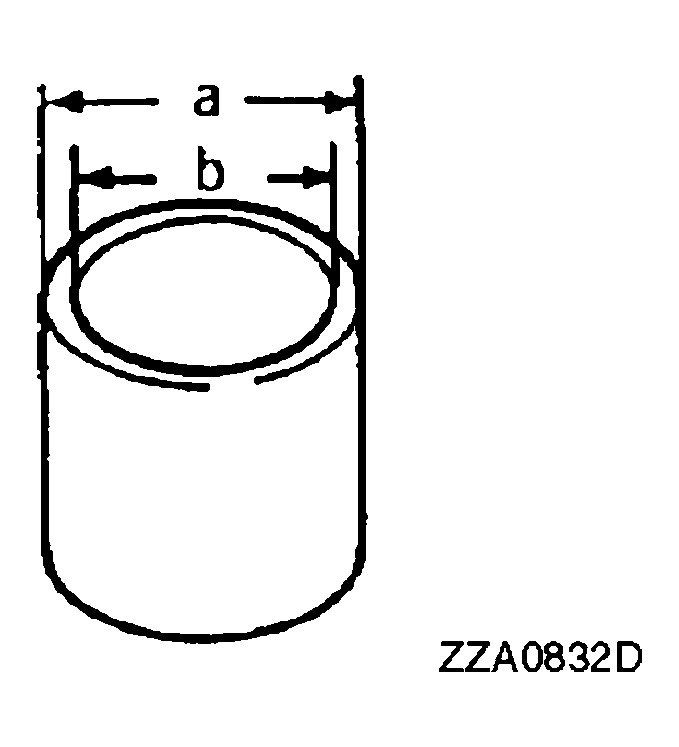

| ST30720000 (J-25405) Drift a: 77 mm (3.03 in) dia. b: 55 mm (2.17 in) dia. |
Installing rear sensor rotor | ||||||||||||||||||||||

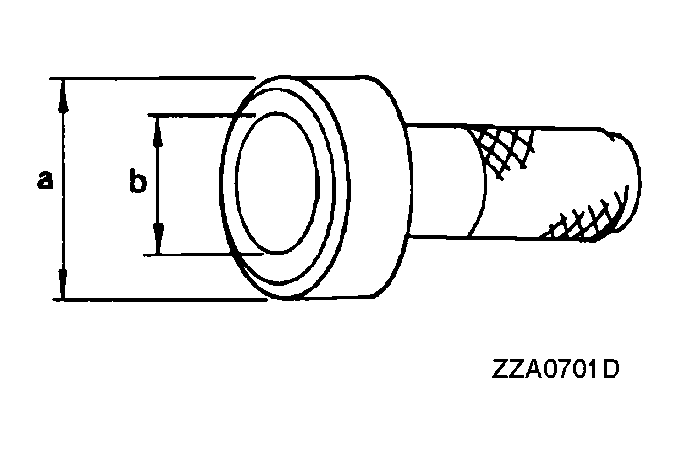

| ST27863000 ( - ) Drift a: 75 mm (2.95 in) dia. b: 62 mm (2.44 in) dia. |
|||||||||||||||||||||||
| kV40104710 ( - ) a: 76 mm (2.99 in) dia. b: 68.5 mm (2.697 in) dia. |
|||||||||||||||||||||||
