Removal and Installation: Component

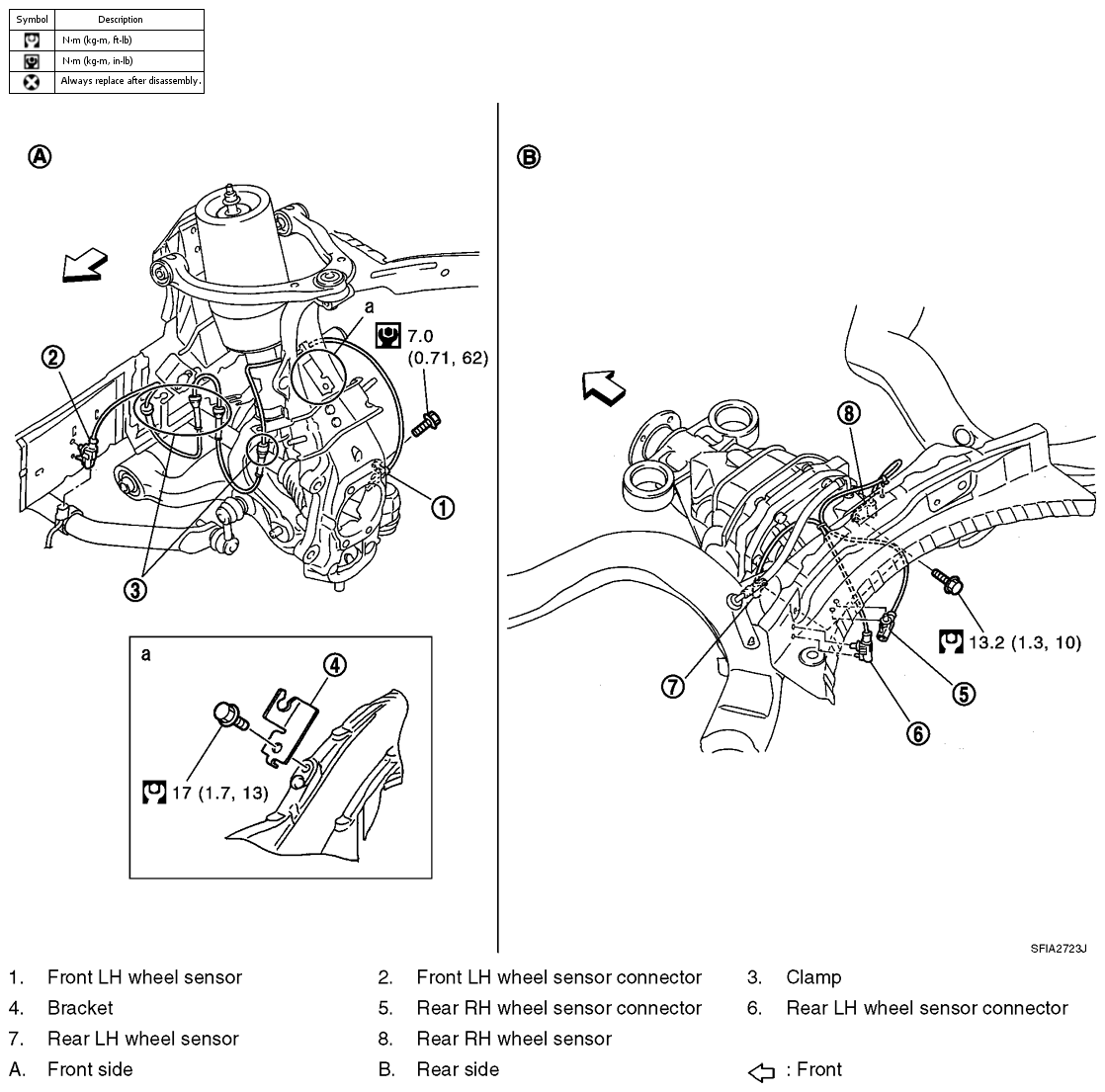

Fig 1: Wheel Sensor Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The above figure (front side) shows left side. Right side is the mirror image.
