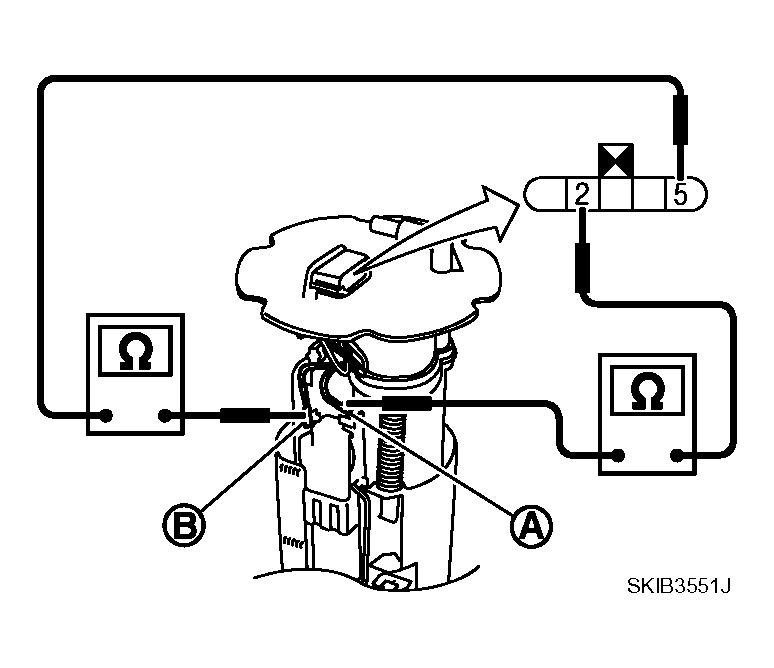

Check Fuel Level Sensor Unit and Pump (Main) Harness
Check continuity at following terminals.
CONNECTOR TERMINALS SPECIFICATIONS
| Terminal |
Continuity |
| 2 - Signal terminal (A) |
Yes |
| 5 - Ground terminal (B) |
Courtesy of NISSAN MOTOR CO., U.S.A.
- If the results of check are NG, replace fuel pump assembly. If the results of check are OK, replace fuel level sensor unit.
