Component Parts Drawing

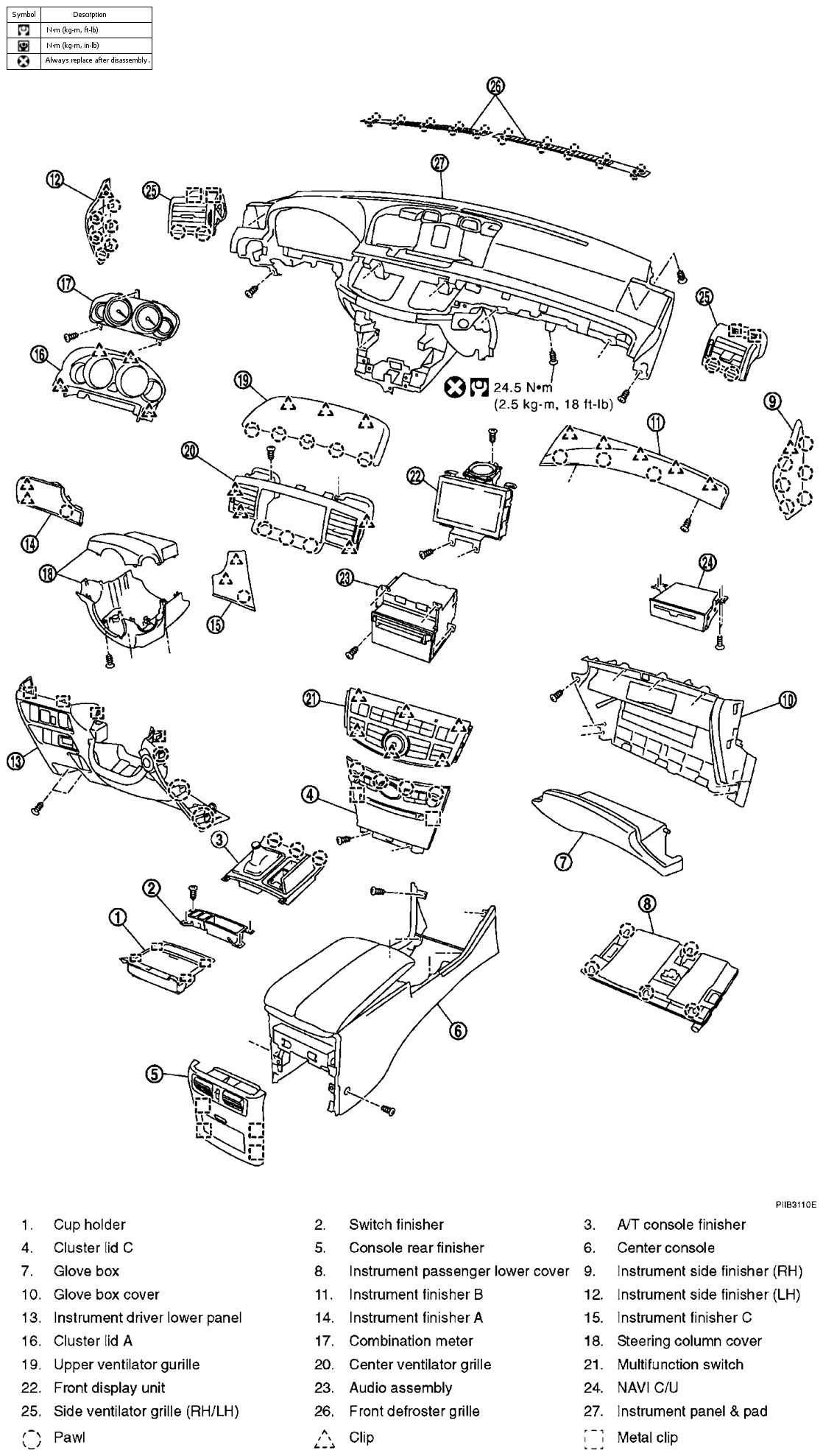

Fig 1: Instrument Panel Assembly Component Parts Drawing With Torque Specifications
G04145864Courtesy of NISSAN MOTOR CO., U.S.A.
