Exhaust System: Components

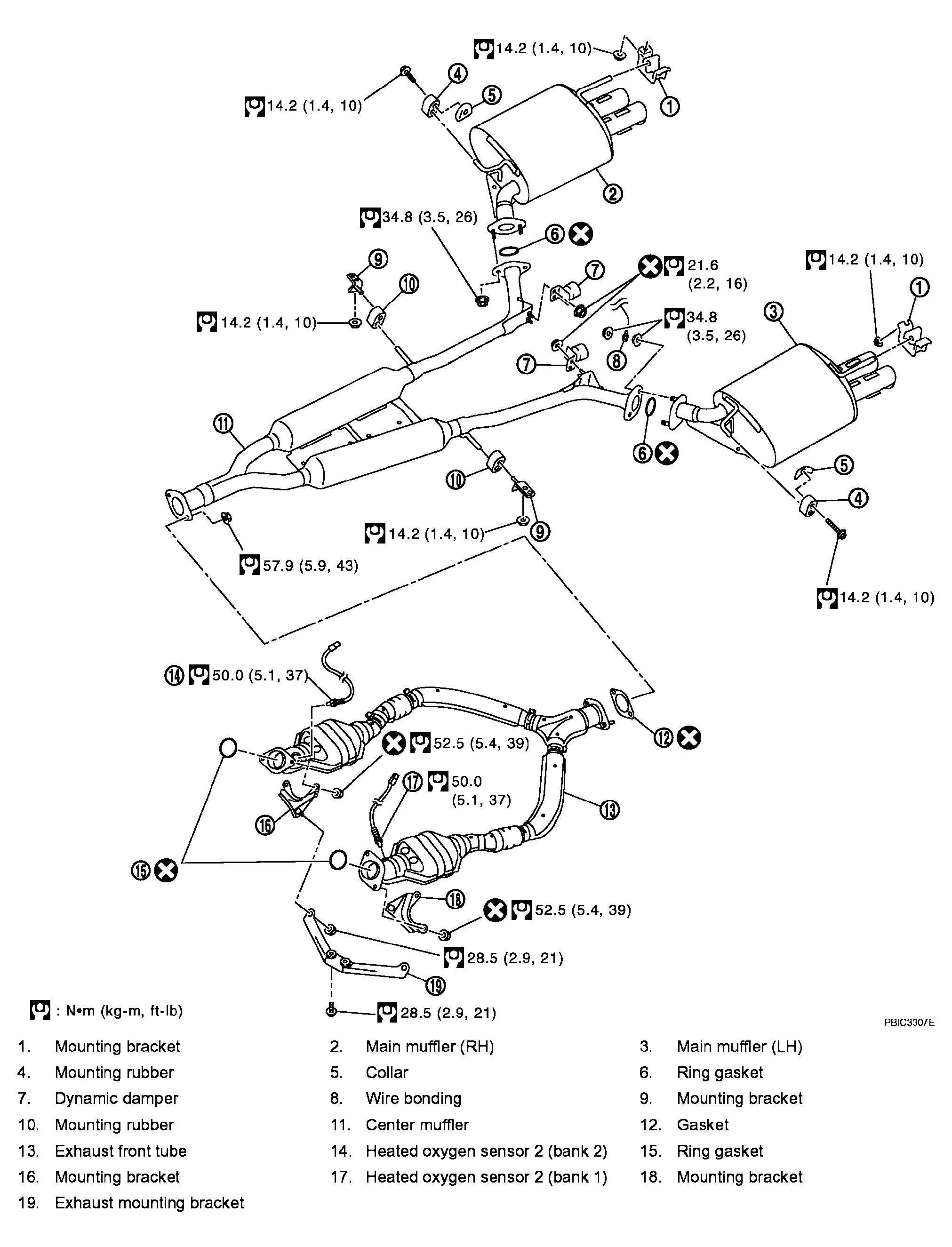

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications (VQ35DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS "for symbol marks in the figure.

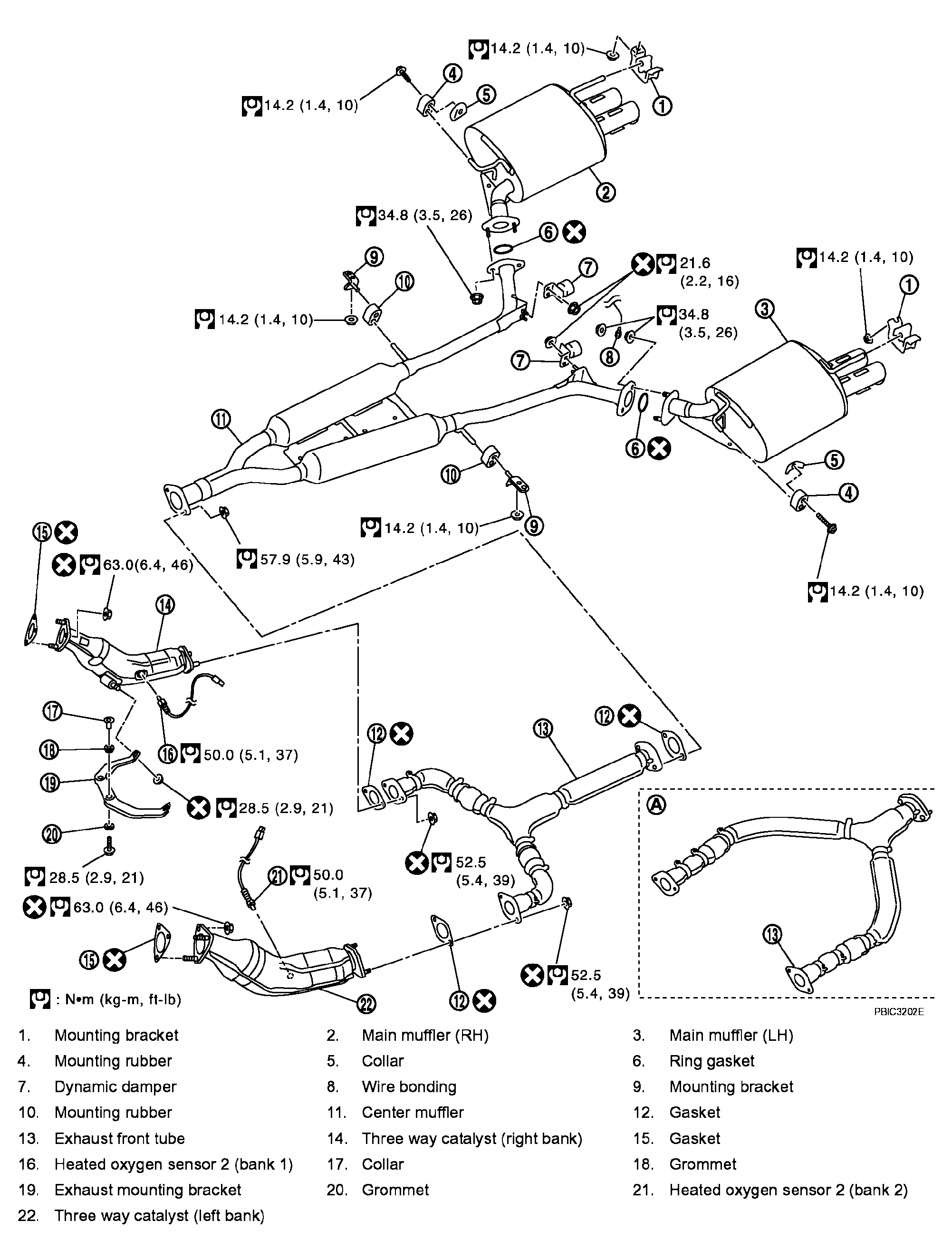

Fig 1: Exploded View Of Exhaust System Components With Torque Specifications (VK45DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in the figure.
