Fuel Injector: Wiring Diagram

For PG-POWER references, see SYSTEM WIRING DIAGRAMS (M35) or SYSTEM WIRING DIAGRAMS (M45).

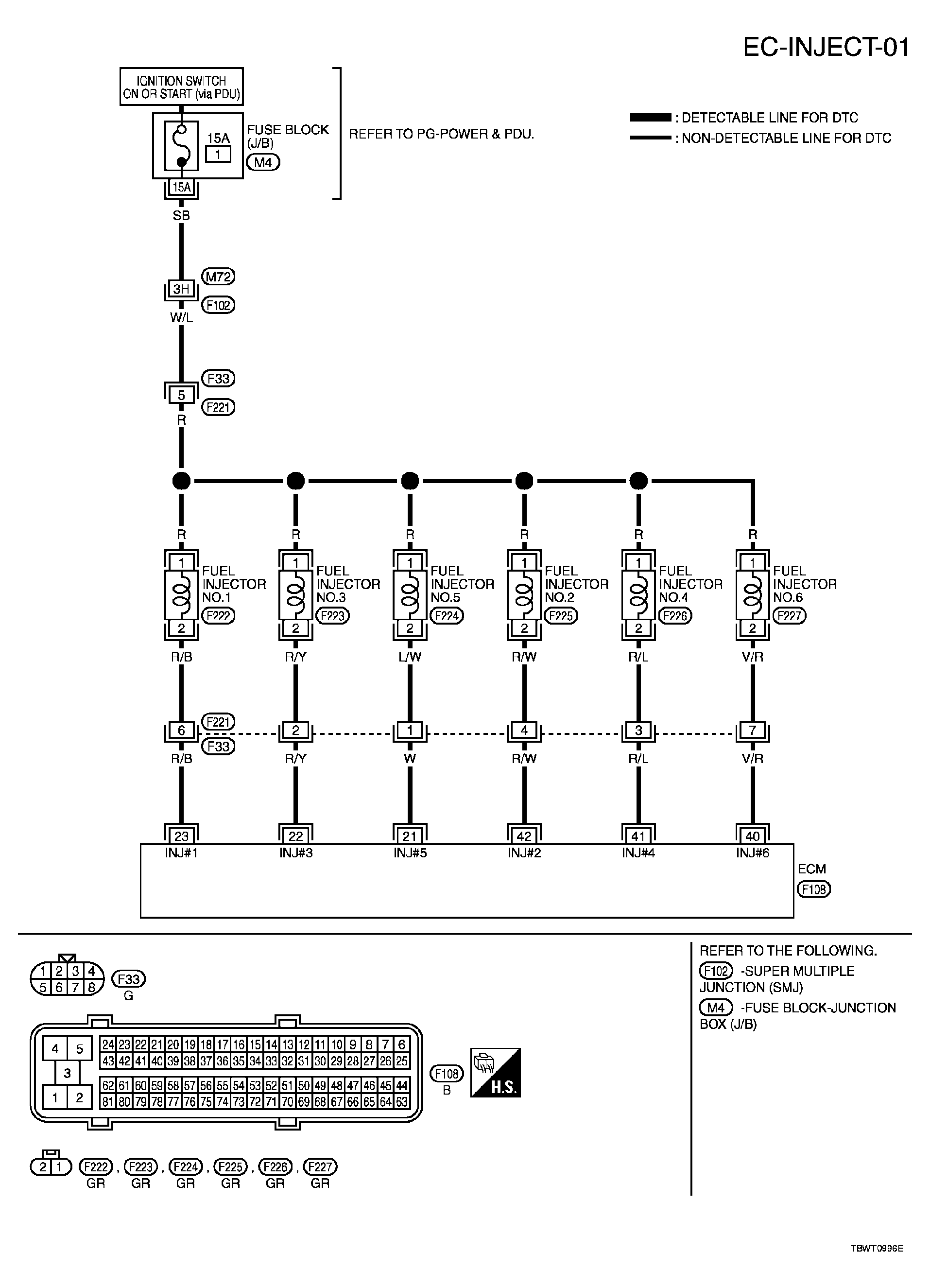

Fig 1: Wiring Diagram - EC-INJECT-01

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

ECM TERMINALS REFERENCE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)

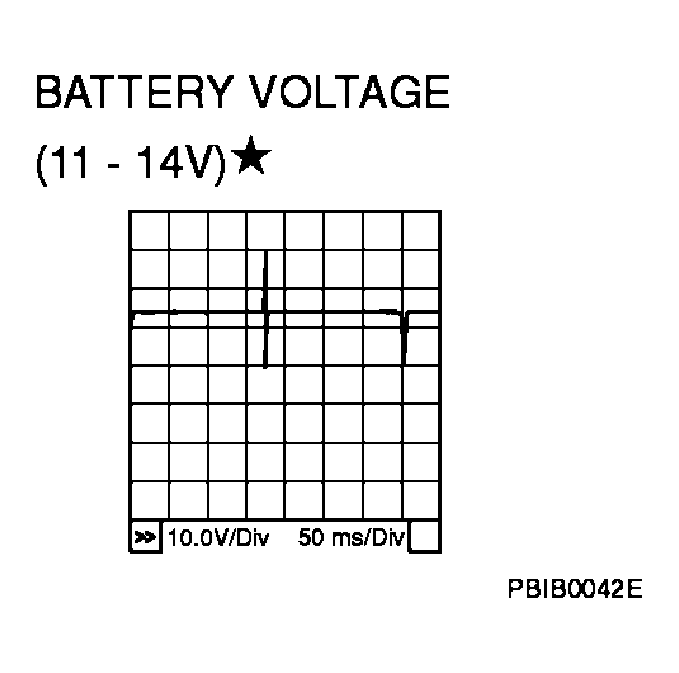

21 22 23 40 41 42	W R/Y R/B V/R R/L R/W	Fuel injector No. 5 Fuel injector No. 3 Fuel injector No. 1 Fuel injector No. 6 Fuel injector No. 4 Fuel injector No. 2	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on rpm at idle	Courtesy of NISSAN MOTOR CO., U.S.A.

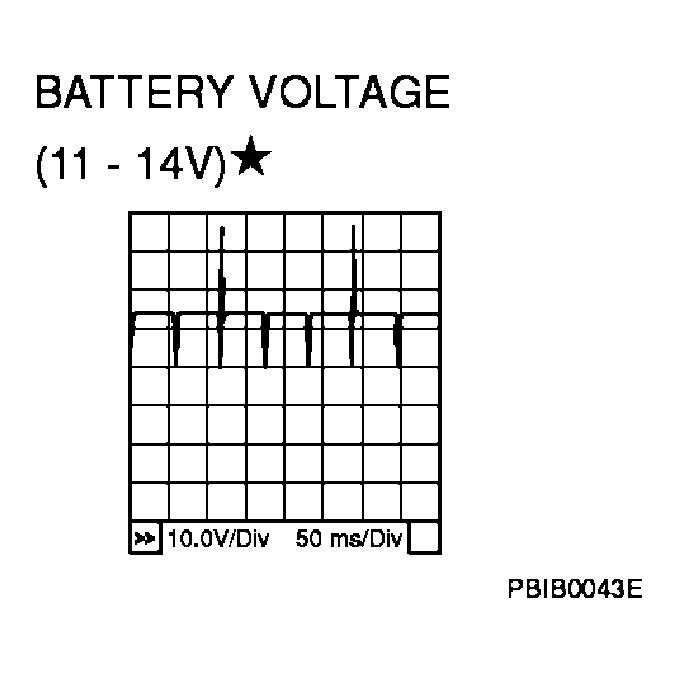

21 22 23 40 41 42	W R/Y R/B V/R R/L R/W		[Engine is running] Warm-up condition Engine speed: 2, 000 rpm	Courtesy of NISSAN MOTOR CO., U.S.A.
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
