Dropping Resistor
- Turn ignition switch OFF.
- Disconnect dropping resistor harness connector.

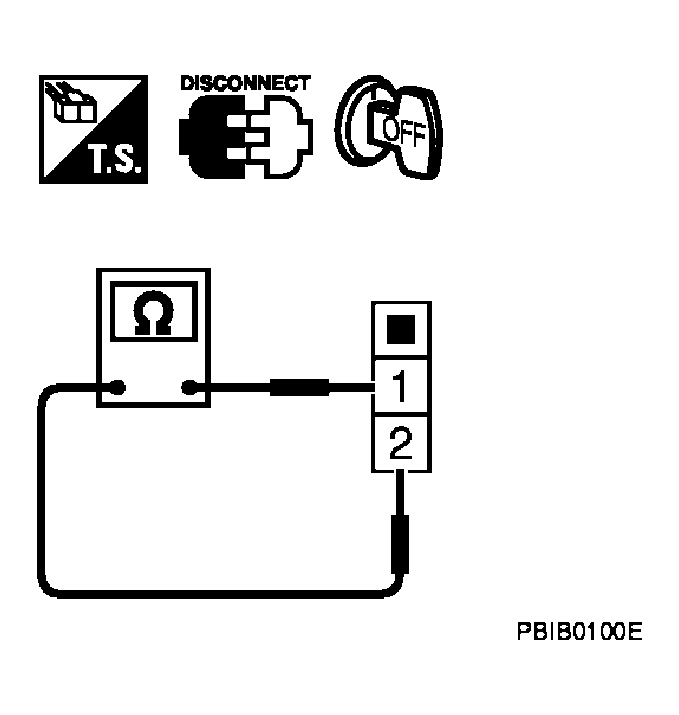

- Check resistance between dropping resistor terminals 1 and 2.
Resistance: Approximately 0.9Ω [at 20°C (68°F)]
Courtesy of NISSAN MOTOR CO., U.S.A.
