Component Description

A turbine type design fuel pump is used in the fuel tank.

• Fuel level sensor unit and fuel pump (1)
• Fuel pressure regulator (2)
• Fuel tank temperature sensor (3)

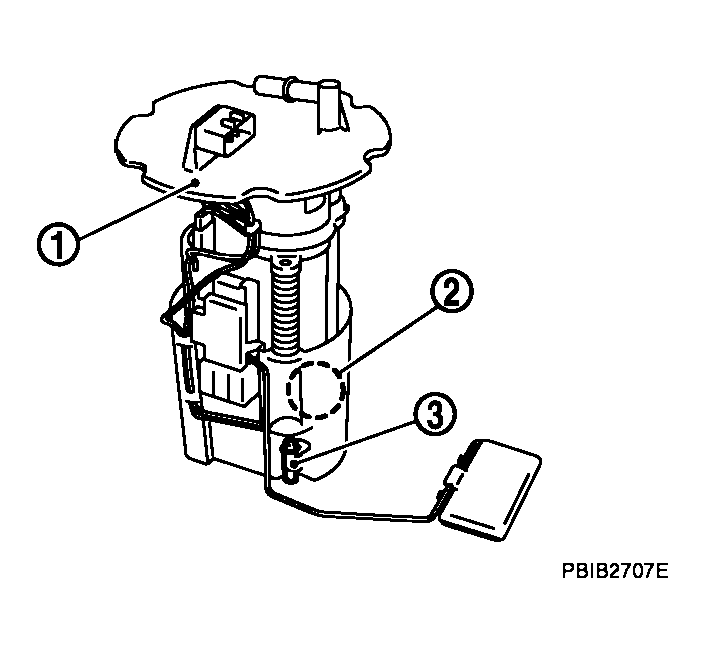

Fig 1: Identifying Fuel Level Sensor Unit And Fuel Pump

Courtesy of NISSAN MOTOR CO., U.S.A.
