Diagnostic Procedure

  1. CHECK OVERALL FUNCTION
    1. Turn ignition switch ON.
    2. Pinch fuel feed hose with two fingers.

      Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

    OK or NG

    OK: INSPECTION END

    NG: GO TO  2.

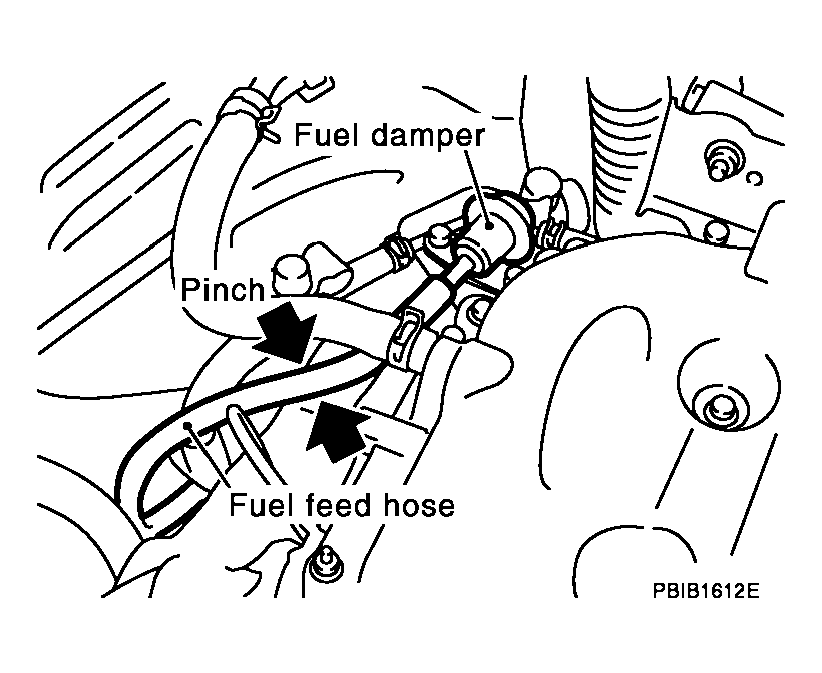

    Fig 1: Pinching Fuel Feed Hose With Two Fingers
    G04138977Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Turn ignition switch ON.
    4. Check voltage between ECM terminal 113 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    OK: GO TO  5.

    NG: GO TO  3.

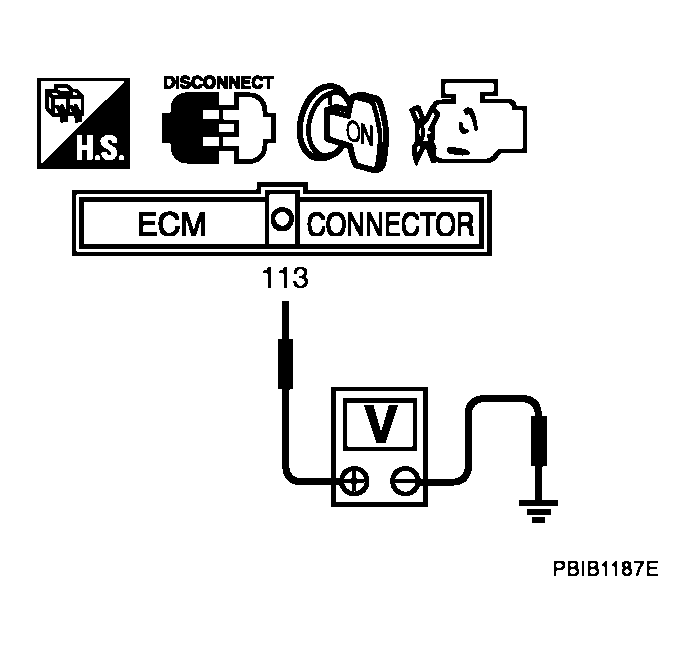

    Fig 2: Checking Voltage Between ECM Terminal 113 And Ground With CONSULT-II Or Tester
    G04138978Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II

    Check voltage between IPDM E/R terminal 40 and ground with CONSULT-II or tester.

    Voltage: Battery voltage

    OK or NG

    OK: GO TO  4.

    NG: GO TO  15.

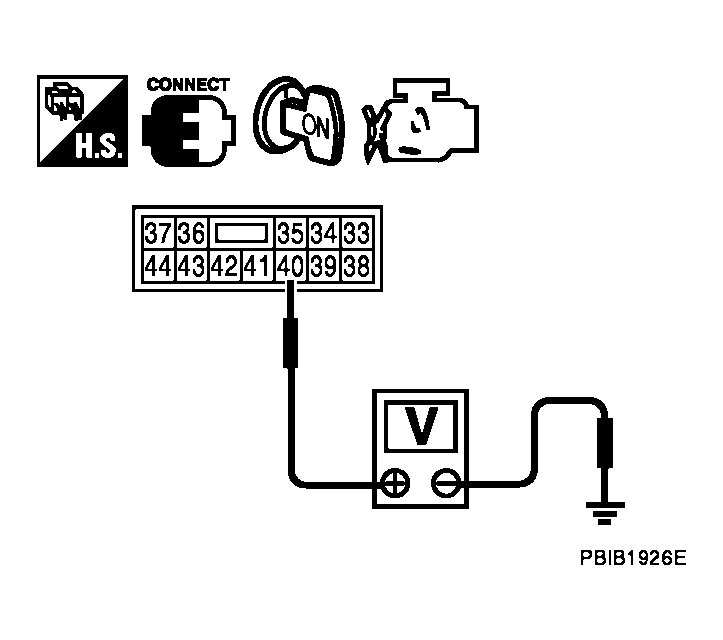

    Fig 3: Checking Voltage Between IPDM E/R Terminal 40 And Ground With CONSULT-II Or Tester
    G04138979Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E108, M15
    • Harness for open or short between IPDM E/R and ECM

    : Repair open circuit or short to ground or short to power in harness or connectors.

  5. CHECK CONDENSER POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch OFF.
    2. Reconnect all harness connectors disconnected.
    3. Disconnect condenser harness connector.
    4. Turn ignition switch ON.
    5. Check voltage between condenser terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage should exist for 1 second after ignition switch is turned ON.

    OK or NG

    OK: GO TO  9.

    NG: GO TO  6.

    Fig 4: Checking Voltage Between Terminal 1 And Ground
    G04075312Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK 15A FUSE
    1. Turn ignition switch OFF.
    2. Disconnect 15A fuse.
    3. Check 15A fuse.

    OK or NG

    OK: GO TO  7.

    NG: Replace fuse.

  7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
    1. Disconnect IPDM E/R harness connector E8.
    2. Check harness continuity between IPDM E/R terminal 39 and condenser terminal 1. Refer to Wiring Diagram .

      Continuity should exist.

    3. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  15.

    NG: GO TO  8.

  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E106, B4
    • IPDM E/R connector E8
    • Harness for open or short between IPDM E/R and condenser

    : Repair open circuit or short to power in harness or connectors.

  9. CHECK CONDENSER GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect dropping resistor harness connector.

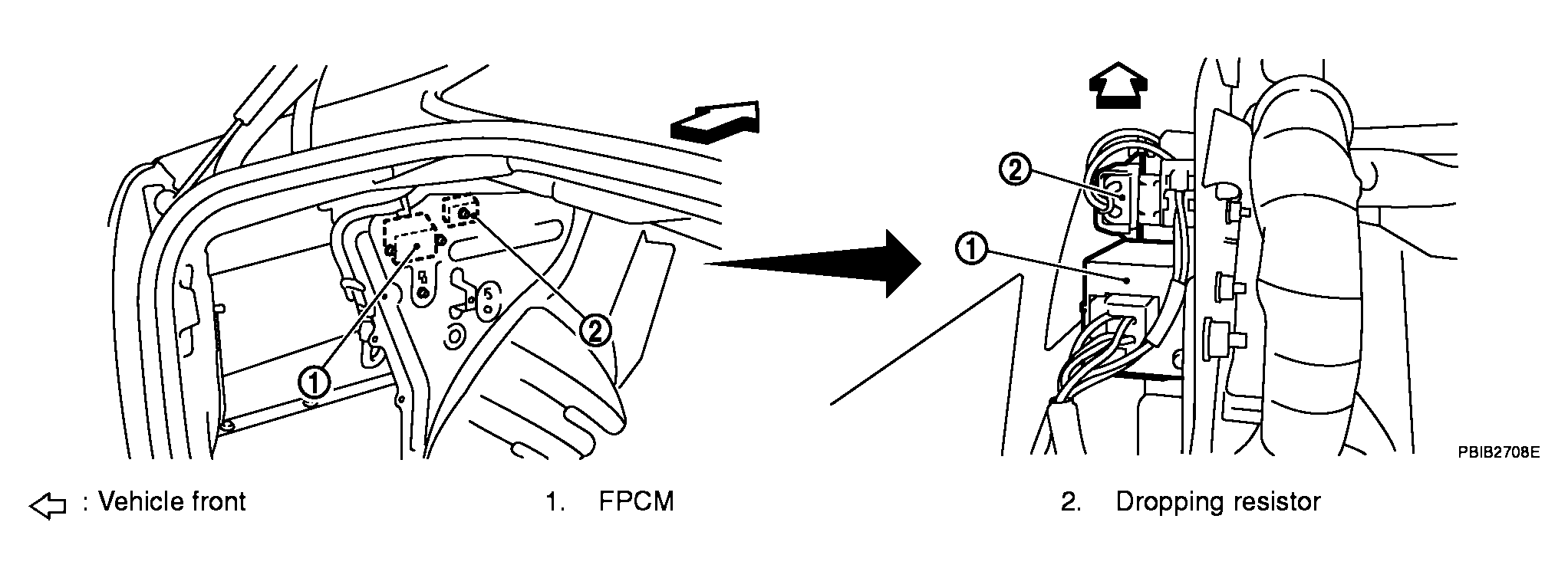

      Fig 5: Identifying Dropping Resistor Harness Connector
      G04138981Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check harness continuity between condenser terminal 2 and dropping resistor terminal 2. Refer to Wiring Diagram .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    OK: GO TO  10.

    NG: Repair open circuit or short to power in harness or connectors.

  10. CHECK CONDENSER

    Refer to , "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  11.

    NG: Replace condenser.

  11. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-III
    1. Turn ignition switch OFF.
    2. Disconnect harness connectors E106, B4.
    3. Disconnect "fuel level sensor unit and fuel pump" harness connector (1).
      • Illustration shows the view with rear seat cushion and inspection hole cover (RH) removed.
      • <-: Vehicle front

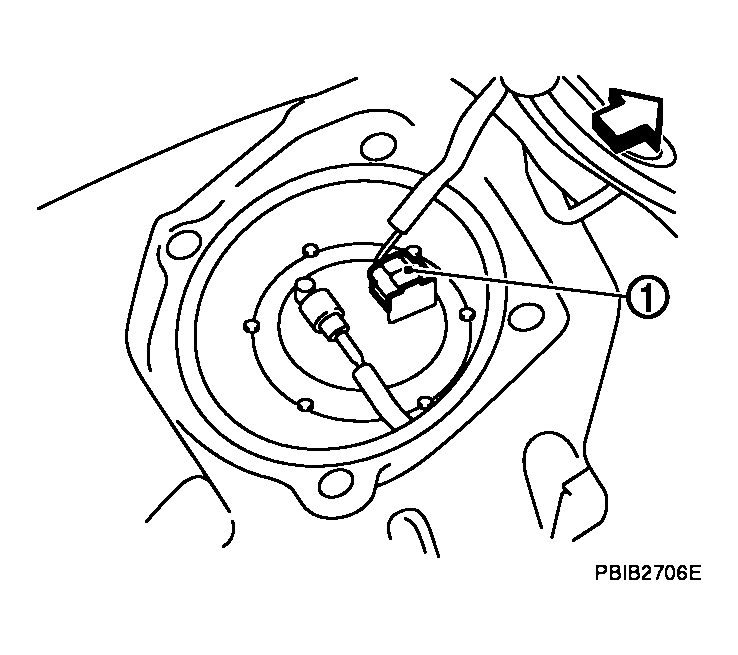

      Fig 6: Identifying Fuel Level Sensor Unit And Fuel Pump Harness Connector
      G04138982Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check harness continuity between the following; harness connector B4 terminal 4 and "fuel level sensor unit and fuel pump" terminal 1, "fuel level sensor unit and fuel pump" terminal 3 and dropping resistor terminal 2, dropping resister terminal 1 and ground. Refer to Wiring Diagram .

      Continuity should exist.

    OK or NG

    OK: GO TO  13.

    NG: GO TO  12.

  12. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connector B4
    • Harness connectors B64, B162
    • Harness for open or short between "fuel level sensor unit and fuel pump" and harness connector B4
    • Harness for open or short between "fuel level sensor unit and fuel pump" and dropping resistor
    • Harness for open or short between dropping resistor and ground

    : Repair open circuit or short to power in harness or connectors.

  13. CHECK DROPPING RESISTOR

    Refer to , "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  14.

    NG: Replace dropping resistor.

  14. CHECK FUEL PUMP

    Refer to , "COMPONENT INSPECTION ".

    OK or NG

    OK: GO TO  15.

    NG: Replace fuel pump.

  15. CHECK INTERMITTENT INCIDENT

    Refer to , "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    OK: Replace IPDM E/R.

    NG: Repair or replace harness or connectors.
