Component Description

When the brake pedal is depressed, ICC brake switch (2) is turned OFF and stop lamp switch (1) is turned ON. ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal). Refer to "DESCRIPTION " for the ICC function.

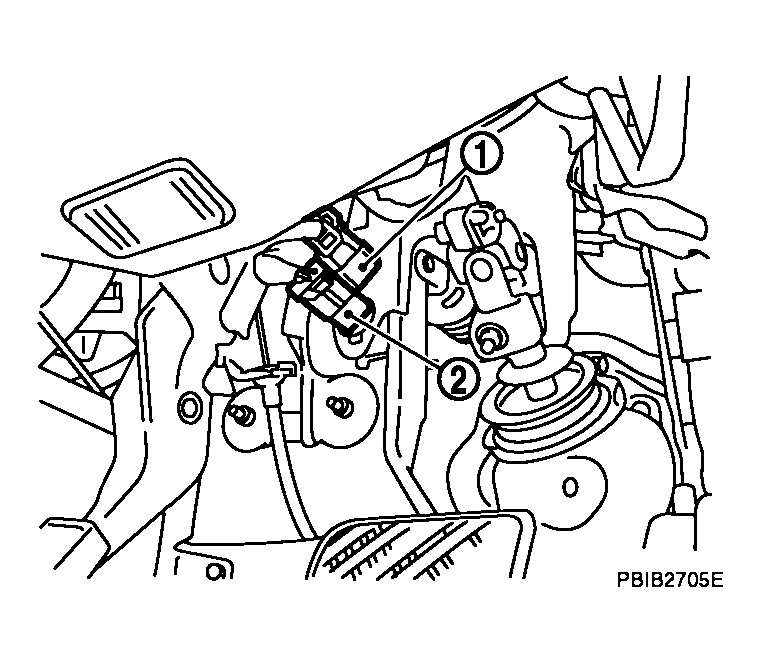

Fig 1: Identifying ICC Brake Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
