ICC Brake Hold Relay

  1. Check continuity between ICC brake hold relay terminals 3 and 5 under the following conditions.
    TERMINALS CONTINUITY CONDITIONS

    Condition Continuity
    12V direct current supply between terminals 1 and 2 Should not exist
    No current supply Should exist
  2. If NG, replace ICC brake hold relay.

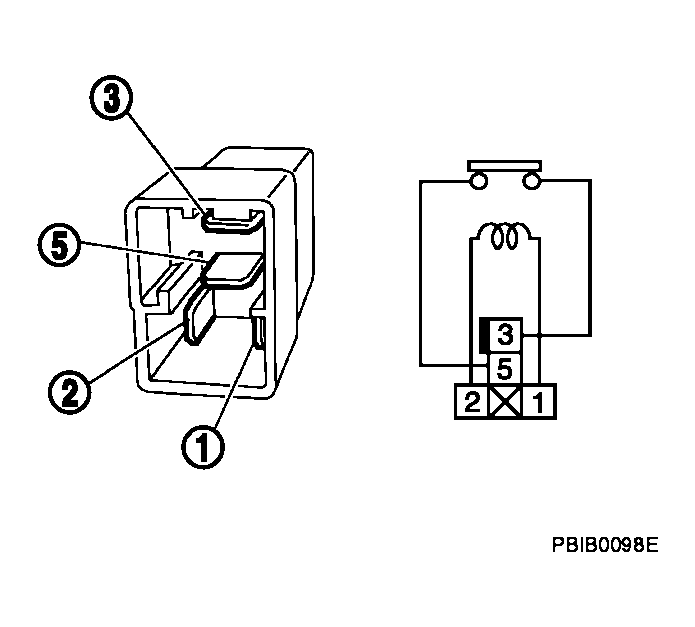

Fig 1: Checking Continuity Between ICC Brake Hold Relay Terminals 3 And 5
G04139010Courtesy of NISSAN MOTOR CO., U.S.A.
