Snow Mode Switch

  1. Check continuity between snow mode switch terminals 1 and 4 under the following conditions.
    SNOW MODE SWITCH TERMINALS 1 AND 4

    Condition CONTINUITY
    Snow mode switch: ON Should exist
    Snow mode switch: OFF Should not exist
  2. If NG, replace snow mode switch.

    If OK, go to following step.

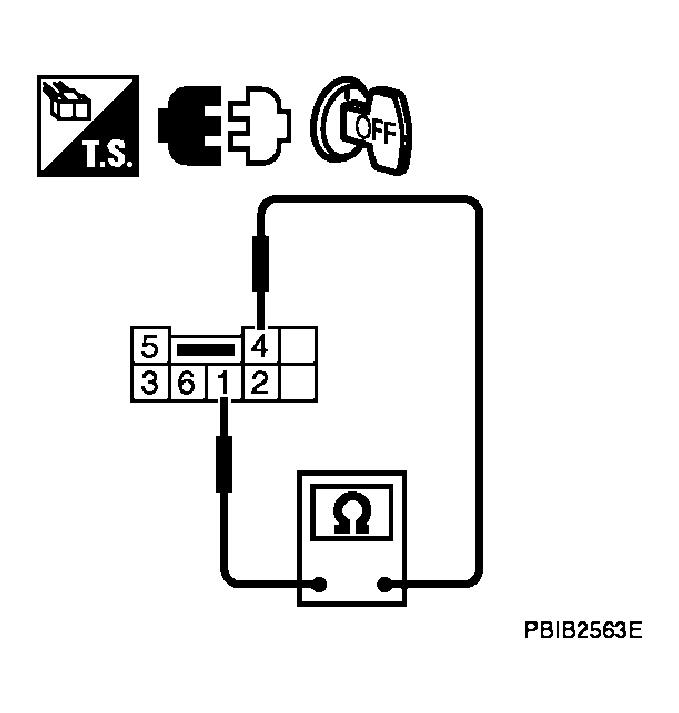

    Fig 1: Checking Continuity Between Snow Mode Switch Terminals 1 And 4
    G04139028Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check continuity between snow mode switch terminals 2 and 4 under the following conditions.
    SNOW MODE SWITCH TERMINALS 2 AND 4

    Condition CONTINUITY
    1 Should exist.
    2 Should not exist.
  4. If NG, replace snow mode switch.

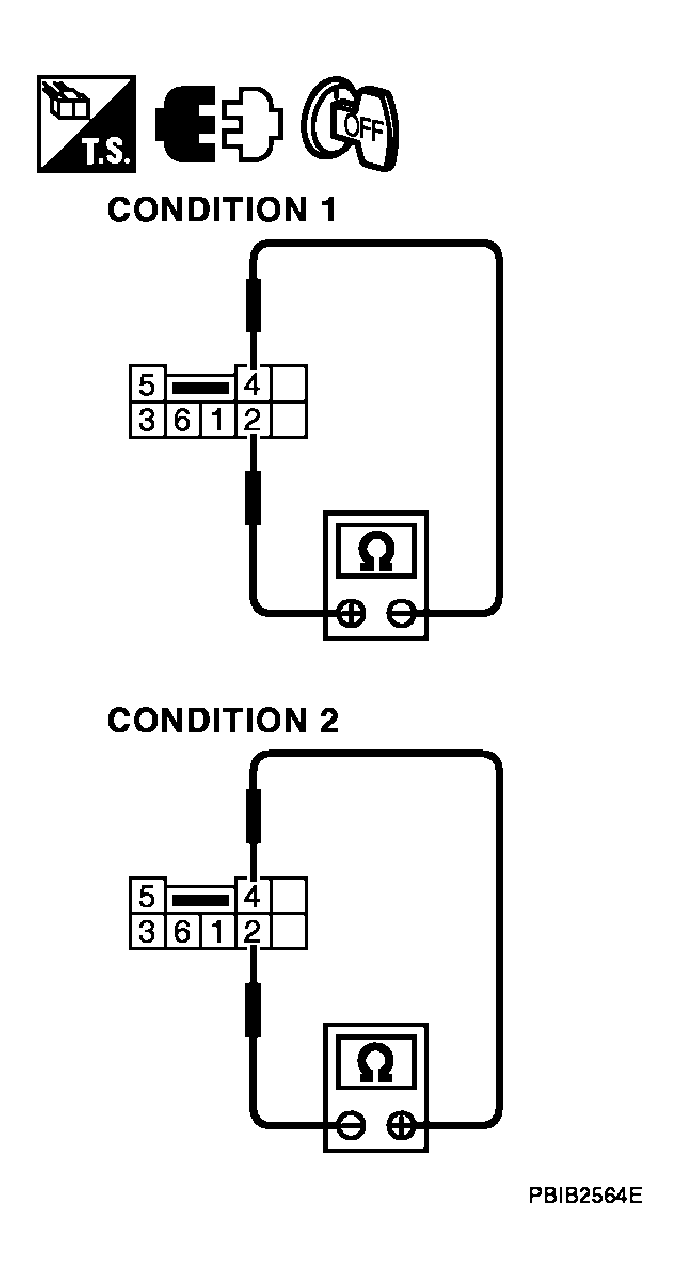

Fig 2: Checking Continuity Between Snow Mode Switch Terminals 2 And 4
G04139029Courtesy of NISSAN MOTOR CO., U.S.A.
