Normal Control

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Each clutch is adjusted to the necessary pressure to match the engine drive force.

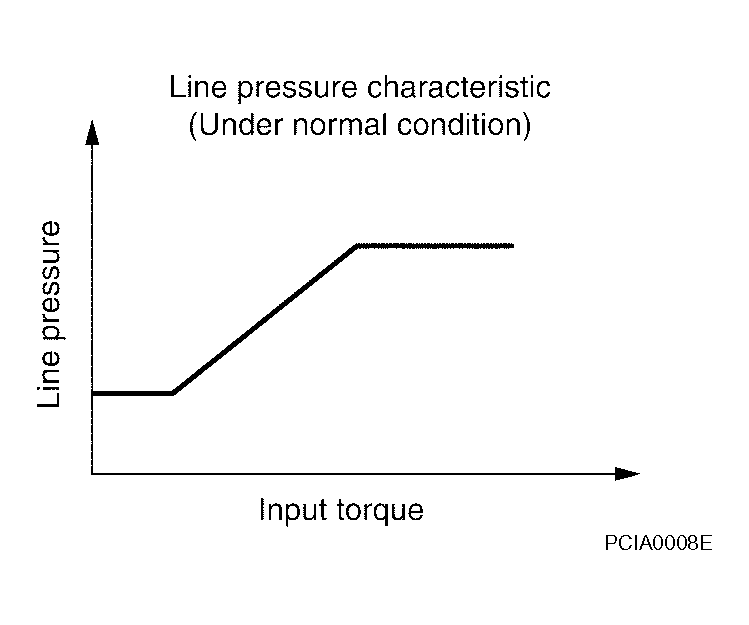

Fig 1: Line Pressure Characteristic Under Normal Condition
G04133368Courtesy of NISSAN MOTOR CO., U.S.A.
