Key Lock Solenoid

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Key lock

Check operation by applying battery voltage to key switch and key lock solenoid terminal 1 and ground to terminal 2.
CAUTION: Be careful not to cause burnout of the harness.

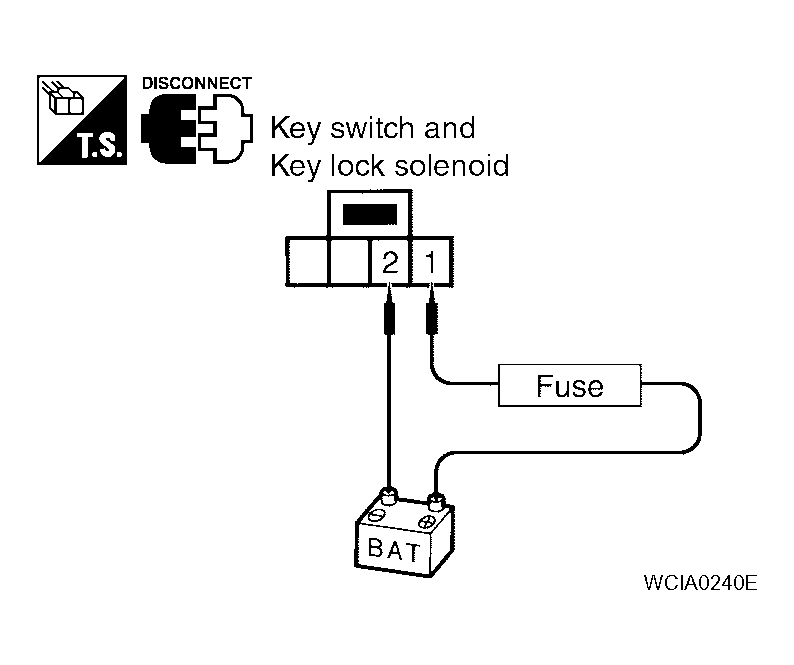

Fig 1: Identifying Key Lock Solenoid Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

Key unlock

Check operation by applying battery voltage to key switch and key lock solenoid terminal 2 and ground to terminal 1.
CAUTION: Be careful not to cause burnout of the harness.

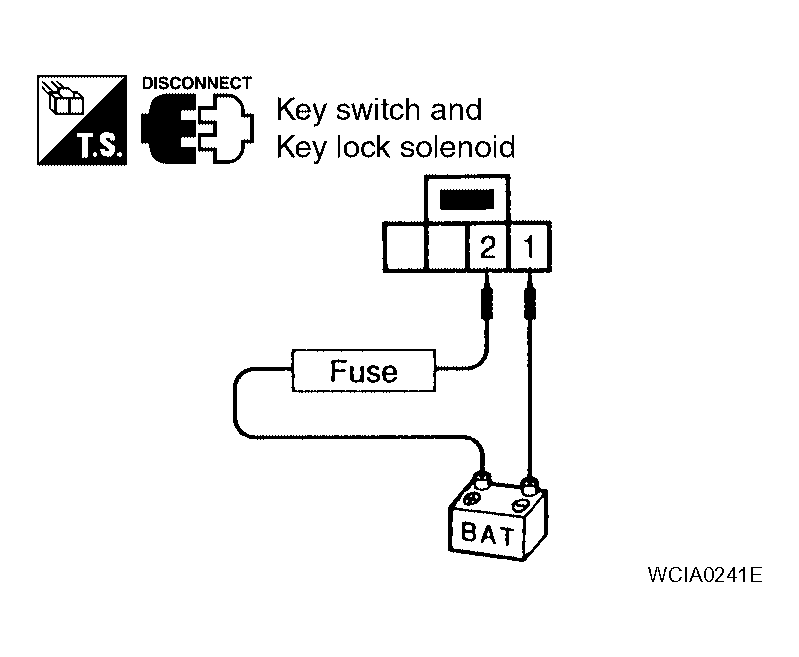

Fig 2: Identifying Key Unlock Operation
Courtesy of NISSAN MOTOR CO., U.S.A.
