Key Switch (Insert) Check

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK KEY SWITCH INPUT SIGNAL

With CONSULT-II

Check key switch "KEY ON SW" in DATA MONITOR mode with CONSULT-II. Refer to "DATA MONITOR ".

When key is inserted to ignition key cylinder:
KEY ON SW : ON
When key is removed from ignition key cylinder:
KEY ON SW : OFF

Fig 1: CONSULT II Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M18 terminal 37 and ground.

TERMINALS VOLTAGE CHART

Connector	Terminals		Condition	Voltage (V)
Connector	(+)	(-)	Condition	Voltage (V)
M18	37	Ground	Key is inserted.	Battery voltage
M18	37	Ground	Key is removed.	0

Fig 2: Identifying Voltage Between BCM Terminal 37 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Key switch (insert) circuit is OK.
NG : GO TO 2.

CHECK KEY SWITCH (INSERT)

Turn ignition switch OFF.
Disconnect key switch and key lock solenoid.

Check continuity between key switch and key lock solenoid terminals 3, 4.

TERMINALS CONTINUITY CHART

Terminals	Condition	Continuity
3 - 4	Key is inserted.	Yes
3 - 4	Key is removed.	No

OK or NG

OK : Repair or replace harness.
NG : Replace key switch.

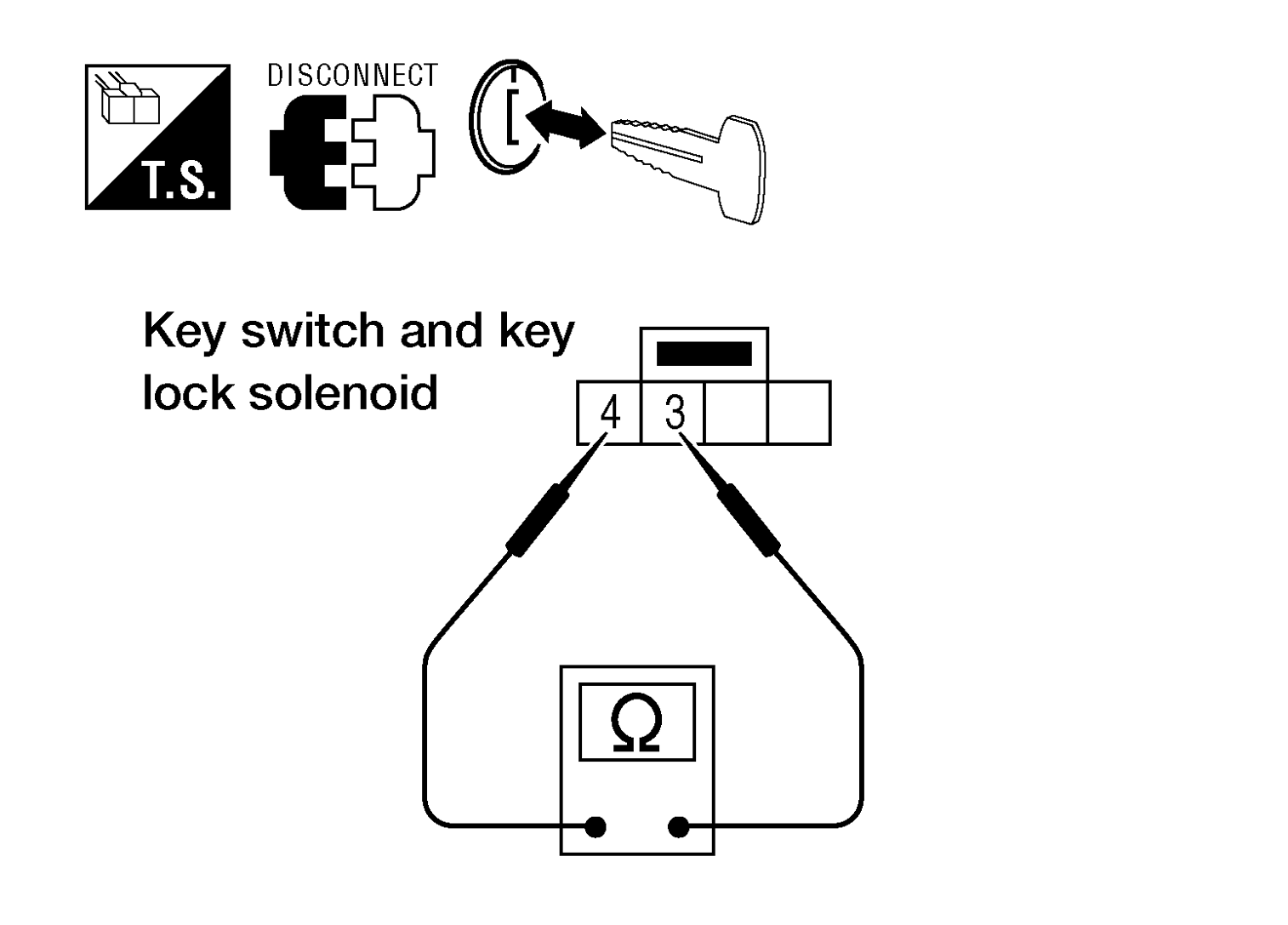

Fig 3: Identifying Continuity Between Key Switch And Key Lock Solenoid Terminals 3, 4
Courtesy of NISSAN MOTOR CO., U.S.A.
