Check On/Off Switch Operation

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine. Then, check that the following operations are performed correctly.
  2. Vehicle-to-vehicle distance control mode is displayed when ON/OFF switch is pressed ON. Vehicle-to-vehicle distance control mode goes off when ON/OFF switch is turned to OFF.
  3. Turn off the ignition switch while ON/OFF switch is ON. Turn the ignition switch back to ON and confirm that CRUISE lamp and ICC system display are OFF.

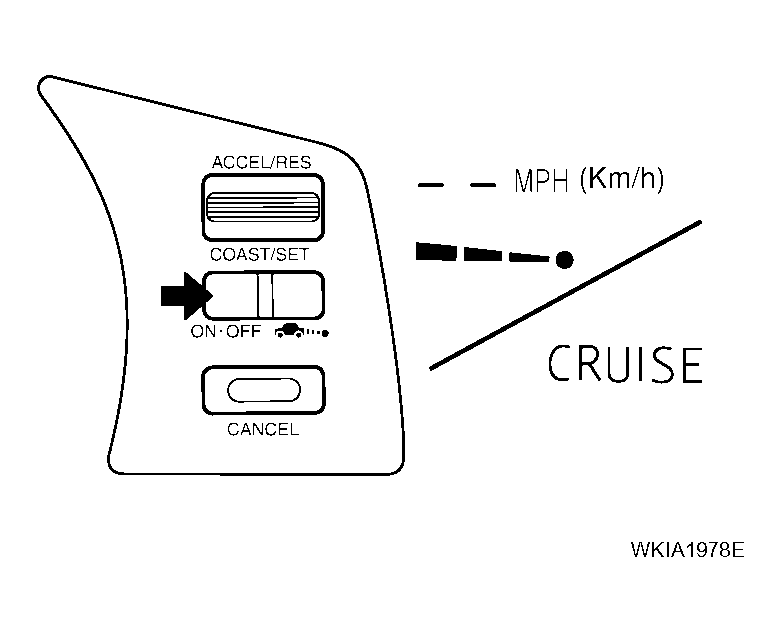

    Fig 1: Identifying ON/OFF Switch
    G04137111Courtesy of NISSAN MOTOR CO., U.S.A.
