ICC System Display
WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

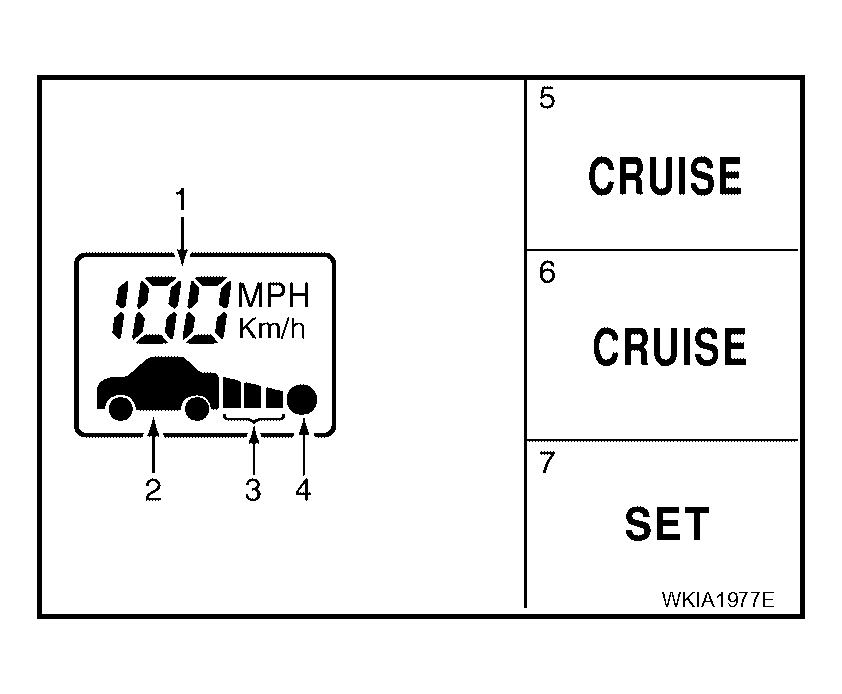

ICC SYSTEM COMPONENTS DESCRIPTION
| No. | Component | Description |
|---|---|---|
| 1 | Set vehicle speed indicator | Indicates the set vehicle speed. |
| 2 | Vehicle ahead detection indicator | Indicates whether it detects a vehicle ahead. |
| 3 | Set distance indicator | Display the selected distance between vehicles set with the DISTANCE switch. |
| 4 | Own vehicle indicator | Indicates the base vehicle. |
| 5 | ON/OFF switch indicator lamp (Green) | Indicates that the system is ON. |
| 6 | Intelligent cruise control system warning lamp (Orange) | The light comes on if there is a malfunction in the ICC system. |
| 7 | Cruise set switch indicator lamp | Indicates that the conventional cruise control mode is on. |
