Switch Operation
WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

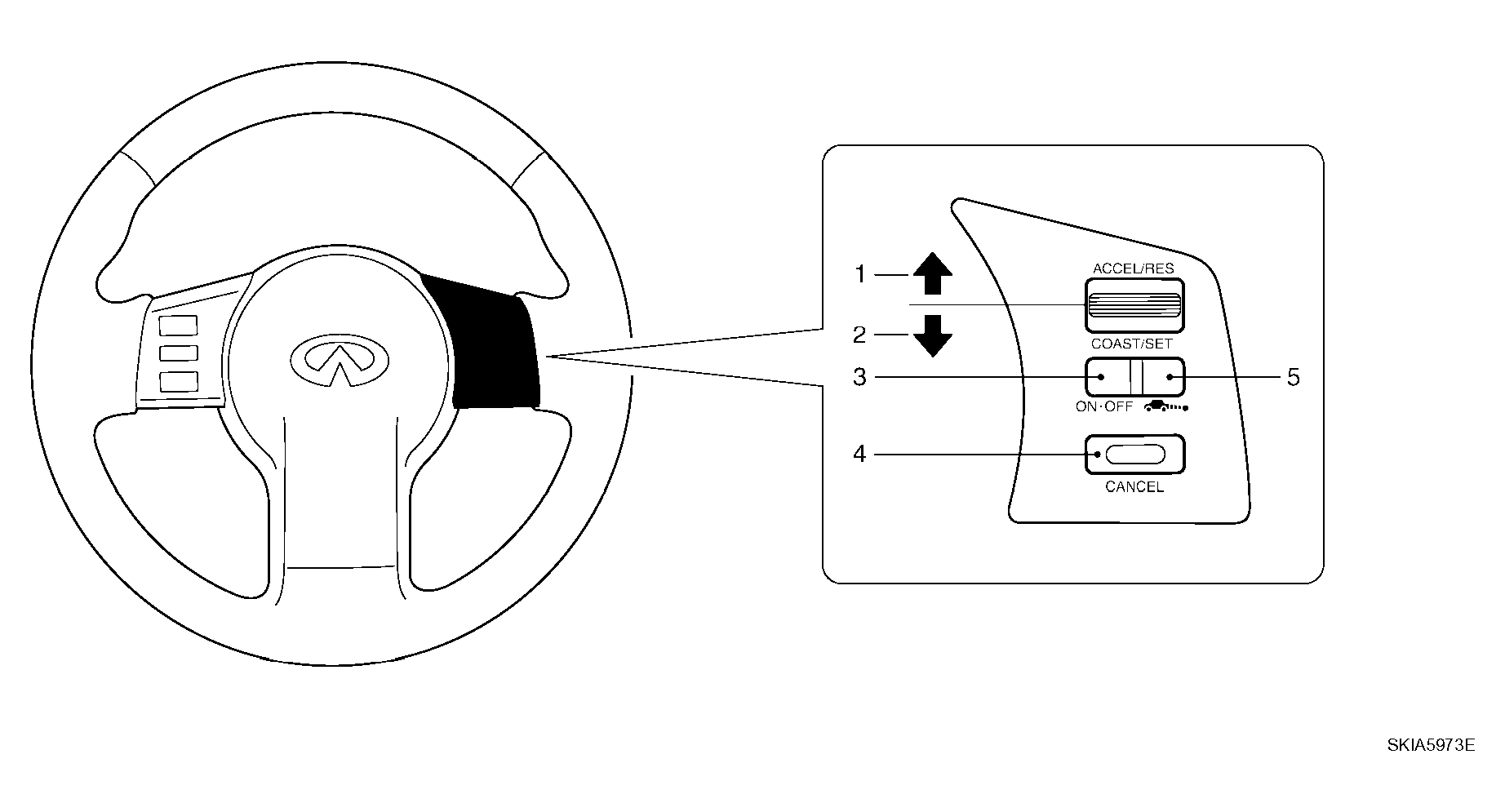

The system is operated by a master ON/OFF switch and four control switches, all mounted on the steering wheel.
SWITCHES DESCRIPTION
| No. | Switch name | Description |
|---|---|---|
| 1 | ACCEL/RES switch | Resumes set speed or increases speed incrementally. |
| 2 | COAST/SET switch | Sets desired cruise speed, reduces speed incrementally. |
| 3 | ON/OFF switch | Master switch to activate the system. |
| 4 | CANCEL switch | Deactivates system without erasing set speed. |
| 5 | DISTANCE switch | Changes the following distance from: Long, Middle, Short. |
