TERMINALS AND REFERENCE VALUES FOR ICC UNIT

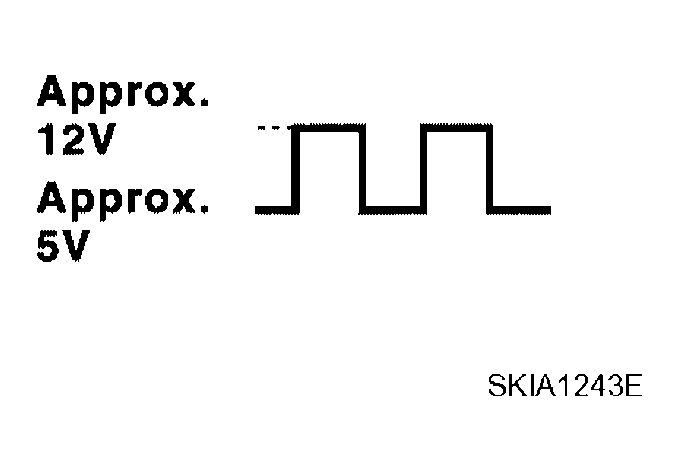

| Terminal | Wire color | Item | Condition | Voltage (V) (Approx.) | ||
|---|---|---|---|---|---|---|
| Ignition switch | Operation | |||||
| 1 | W/L | Battery power supply | OFF | - | Battery voltage | |
| 2 | W/L | |||||
| 5 | P | CAN-L | - | - | - | |
| 7 | B/R | N-P RANGE | ON | A/T selector lever in "P" or "N" | Battery voltage | |
| 10 | V/R | Brake booster signal | ON | - | ||
| 14 | L | CAN-H | - | - | - | |
| 19 | B | Ground | ON | - | - | |
| 20 | B | |||||
| 29 | BR/W | ICC brake switch (normally closed) | Selector lever: Not in "N" or "P" position | Depress the brake pedal | 0 | |
| Release the brake pedal | Battery voltage | |||||
| 30 | L | DDL-TX | - | - | - | |
| 33 | R/B | Ignition switch power supply | ON | - | Battery voltage | |
| 38 | R/G | Stop lamp switch (normally open) | OFF | Depress the brake pedal | ||
| Release the brake pedal | 0 | |||||
| 39 | V/W | DDL-RX | - | - | - | |
| 40 | G | Parking brake signal | ON | Parking brake is ON | 0 | |
| Parking brake is OFF | Battery voltage | |||||
| 42 | R/B | Ignition switch power supply | - | Battery voltage | ||
| 46 | B | Ground | - | - | ||
| 47 | BR | Stop lamp drive output signal | Brake operating with ICC system | Battery voltage | ||
| Brake not operating with ICC system | 0 | |||||
