Color of RGB Image is Not Proper (Only NAVI Screen Looks Reddish)

1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector B152 and display control unit connector M95.
3. Check continuity between NAVI control unit and display control unit.
4. Check continuity between NAVI control unit and ground.
   • When the screen looks reddish.
     TERMINALS CONTINUITY DESCRIPTION



     Terminals				Continuity
     B		A
     Connector	Terminal	Connector	Terminal
     NAVI control unit: B152	45	Display control unit: M95	46	Yes
     	47		45

     TERMINALS CONTINUITY DESCRIPTION



     Terminals			Continuity
     B		-
     Connector	Terminal
     NAVI control unit: B152	45	Ground	No
     	47

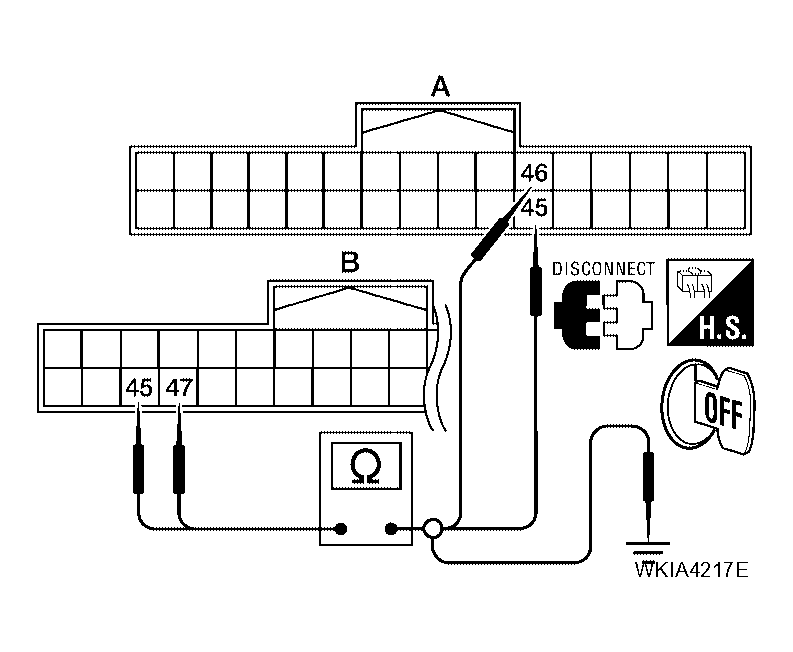

     Fig 1: Identifying Continuity Between NAVI Control Unit And Ground

     Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : GO TO 2.
• NG : Repair harness or connector.

1. Connect NAVI control unit connector and display control unit connector.
2. Turn ignition switch ON.
3. Display "Color bar" by "CONFIRMATION/ADJUSTMENT" mode.
4. Check signal between NAVI control unit connector B152 terminal 45 and 47 with CONSULT-II or oscilloscope.
   • When the screen looks reddish.

     Voltage signal between NAVI control unit connector B152 terminal 45 and 47.

     45 - 47 : Refer to " TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT  ".

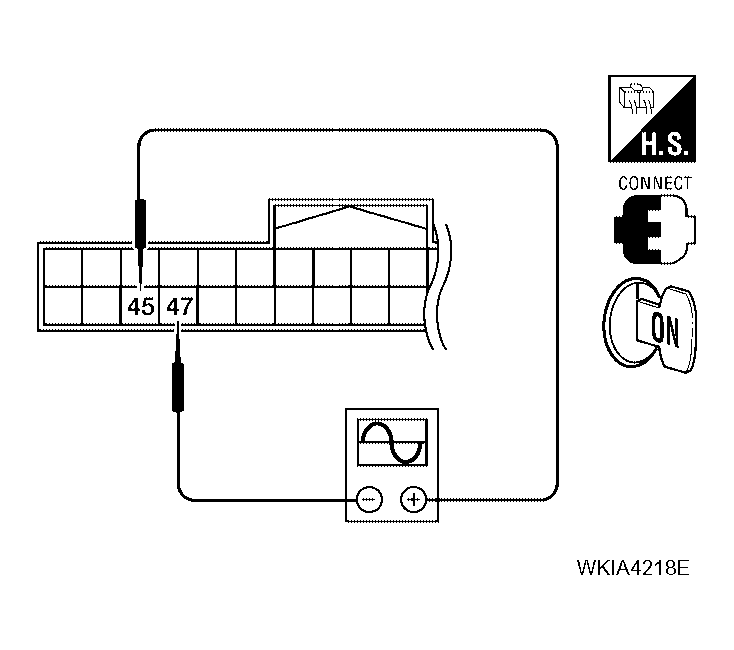

     Fig 2: Identifying Signal Between NAVI Control Unit Connector B152 Terminal 45 And 47

     Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : Replace display control unit. Refer to "DISPLAY CONTROL UNIT ".
• NG : Replace NAVI control unit. Refer to "NAVI CONTROL UNIT ".
