Power Supply and Ground Circuit Check for NAVI Control Unit

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE

Make sure the following fuses of the NAVI control unit are not blown.

FUSE TERMINALS DESCRIPTION

Terminals		Power source	Fuse No.
Connector	Terminal	Power source	Fuse No.
B151	2	Battery power	31
B151	5	ACC/ON power	4

OK or NG

OK : GO TO 2.
NG : If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to "POWER SUPPLY ROUTING CIRCUIT ".

CHECK POWER SUPPLY CIRCUIT

Disconnect NAVI control unit connector B151.

Check voltage between connector terminals and ground as follows.

CONNECTOR TERMINALS AND GROUND VOLTAGE DESCRIPTION

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Connector	Terminal	(-)	OFF	ACC	ON
B151	2	Ground	Battery voltage	Battery voltage	Battery voltage
B151	5	Ground	0V	Battery voltage	Battery voltage

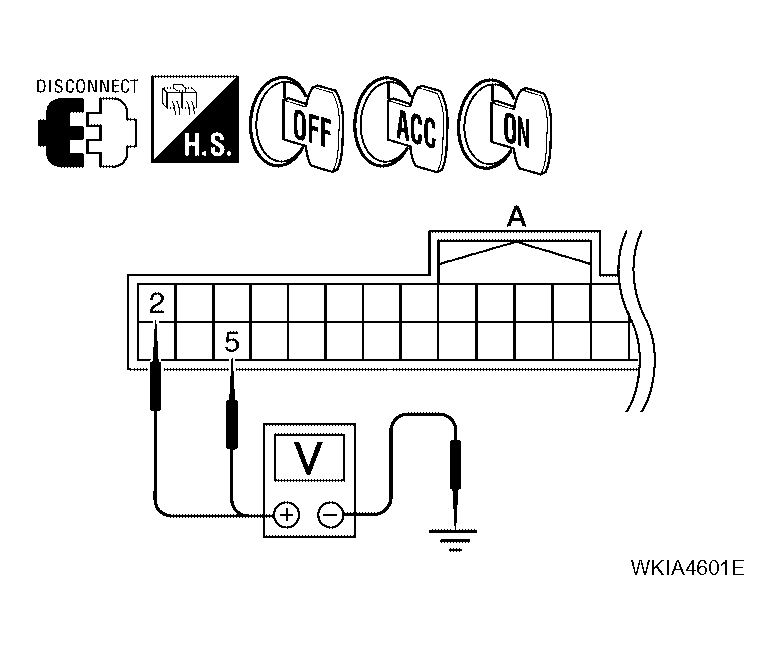

Fig 1: Identifying Voltage Between Connector Terminals And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.
NG : Check harness for open between NAVI control unit and fuse.

CHECK GROUND CIRCUIT

Turn ignition switch OFF.

Check continuity between the following NAVI control unit connector terminals and ground.

TERMINALS CONTINUITY DESCRIPTION

Terminals			Ignition switch	Continuity
Connector	Terminal	-	Ignition switch	Continuity
B151	1	Ground	OFF	Yes

OK or NG

OK : Inspection End.
NG : Repair or replace harness.

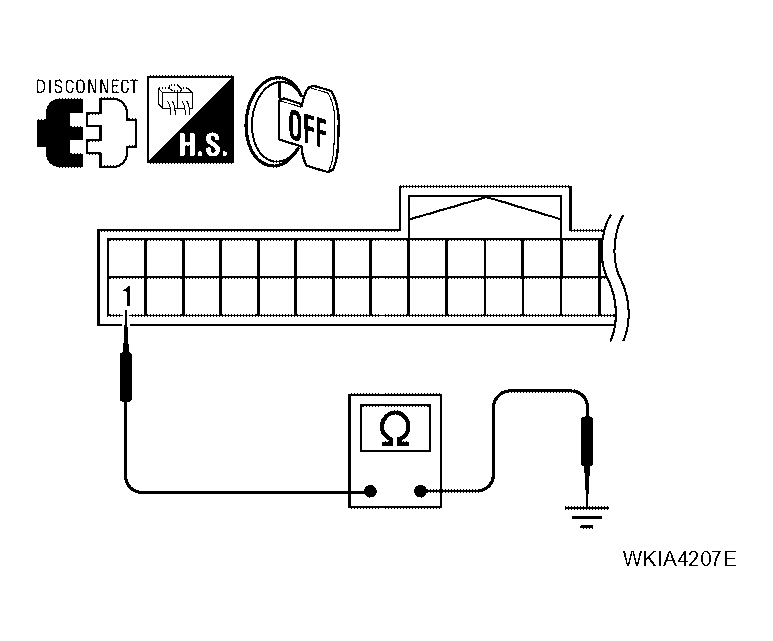

Fig 2: Identifying Continuity Between NAVI Control Unit Connector Terminals And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
