Display Control Unit: Removal

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove display unit. Refer to "DISPLAY UNIT ".
  2. Remove display control unit.

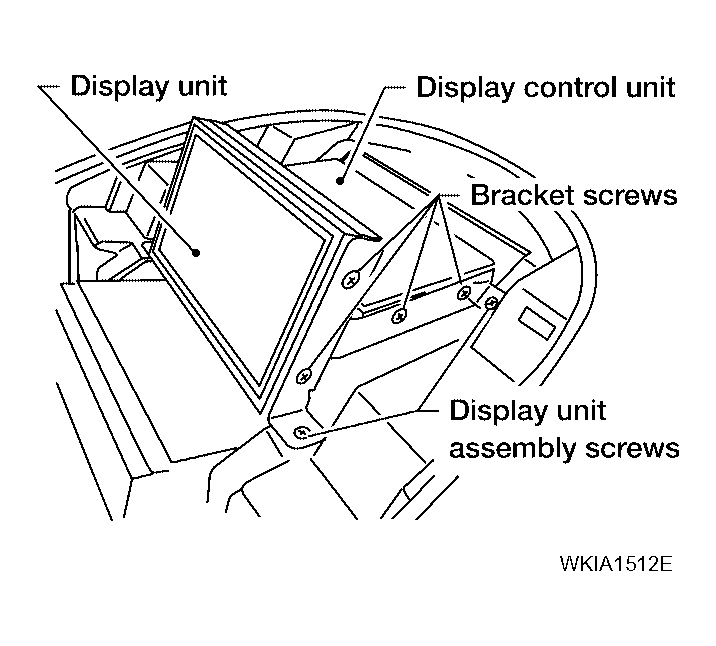

    Fig 1: Identifying Display Control Unit
    G04137102Courtesy of NISSAN MOTOR CO., U.S.A.
