Display Unit: Removal

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove center console. Refer to "CENTER CONSOLE ".
  2. Remove cluster lid D. Refer to "CLUSTER LID D ".
  3. Disconnect center speaker connector.
  4. Disconnect display unit connectors.

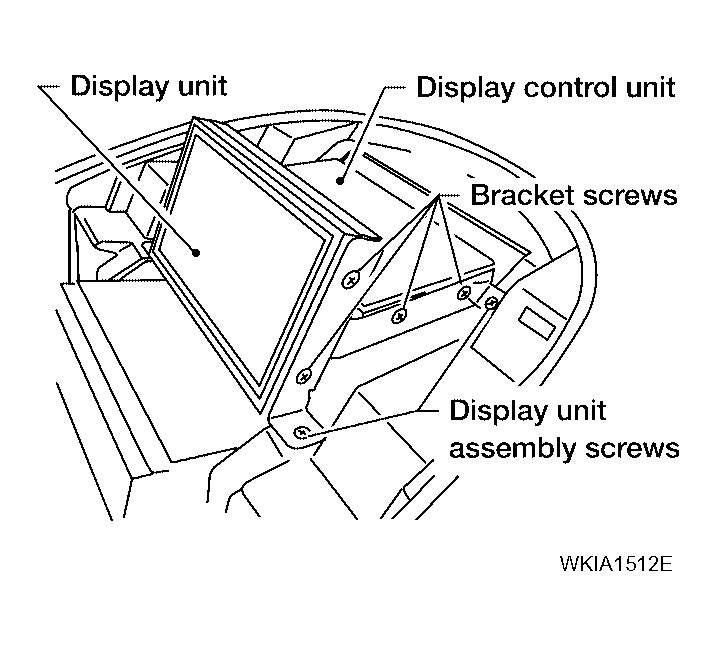

    Fig 1: Identifying Display Control Unit
    G04137103Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove display unit.
  6. Remove display unit brackets.
