Removal and Installation: Removal
WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Move the accelerator and brake pedals to the front most position.
- Turn the ignition switch OFF and disconnect the negative battery terminal.
- Disconnect the adjustable brake pedal cable from the adjustable brake pedal.
- Unlock, then pull the adjustable brake pedal cable to disconnect it from the adjustable brake pedal.

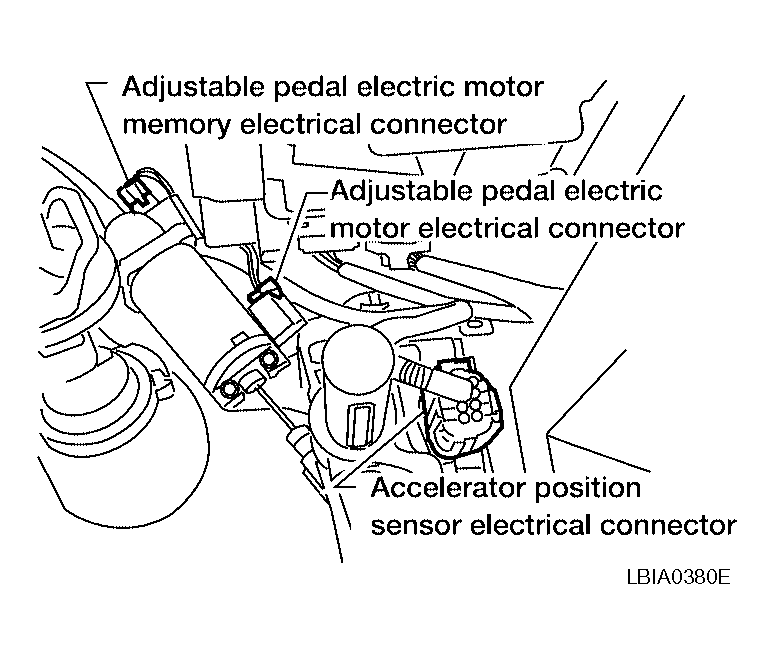

- Disconnect the adjustable pedal electric motor electrical connector.
- Disconnect the adjustable pedal electric motor memory electrical connector, if equipped.
- Disconnect the accelerator position sensor electrical connector.
- Remove the two upper and one lower accelerator pedal nuts.
- Remove the adjustable accelerator pedal assembly.
CAUTION:
- Do not disassemble the accelerator pedal assembly.
- Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
- Do not disassemble the accelerator pedal adjusting mechanism.
- Avoid damage from dropping the accelerator pedal assembly during handling.
- Keep the accelerator pedal assembly away from water.
