Combination Switch Inspection

1. Referring to table below, check which system the malfunctioning switch belongs.
   MALFUNCTIONING SWITCH BELONGS



   System 1	System 2	System 3	System 4	System 5
   -	FR WASHER	FR WIPER LO	TURN LH	TURN RH
   FR WIPER HI	-	FR WIPER INT	PASSING	HEAD LAMP1
   INT VOLUME 1	RR WASHER	-	HEAD LAMP2	HI BEAM
   RR WIPER INT	INT VOLUME 3	AUTO LIGHT	-	TAIL LAMP
   INT VOLUME 2	RR WIPER ON	-	FR FOG	-

• : GO TO 2.

With CONSULT-II

1. Connect CONSULT-II, and select "COMB SW" on "SELECT TEST ITEM" screen.
2. Select "DATA MONITOR".
3. Select "START", and confirm that other switches in malfunctioning system operate normally.

Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER INT" in System 3, to which the auto light switch belongs, turn ON-OFF normally.

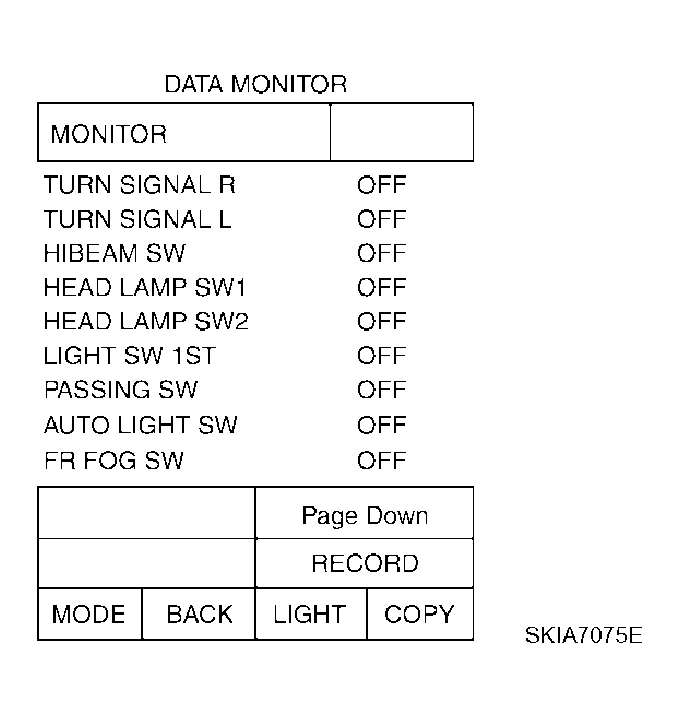

Fig 1: Consult-II Screen Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Operate combination switch, and confirm that other switches in malfunctioning system operate normally.

Example: When auto light switch is malfunctioning, confirm that "FRONT WIPER LOW" and "FRONT WIPER INT" in System 3, to which the auto light switch belongs, operate normally.

Check results

• Other switches in malfunctioning system operate normally.: Replace lighting switch or wiper switch.
• Other switches in malfunctioning system do not operate normally. : GO TO 3.

1. Turn ignition switch OFF.
2. Disconnect BCM and combination switch connectors.
3. Check for continuity between BCM harness connector of the suspect system and the corresponding combination switch connector terminals.
   SUSPECT SYSTEM TERMINAL CONTINUITY



   Suspect system	Terminals					Continuity
   	BCM			Combination switch
   	Connector	Terminal		Connector	Terminal
   1	M18	Input 1	6	M28	6	Yes
   		Output 1	36		1
   2		Input 2	5		7
   		Output 2	35		2
   3		Input 3	4		10
   		Output 3	34		3
   4		Input 4	3		9
   		Output 4	33		4
   5		Input 5	2		8
   		Output 5	32		5

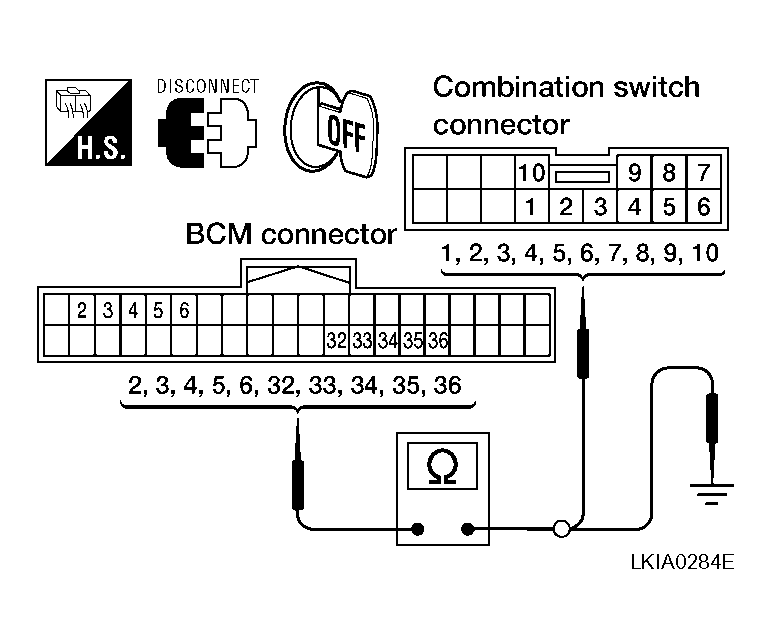

   Fig 2: Identifying Continuity Between BCM Connector Of Suspect System And Corresponding Combination Switch Connector Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check for continuity between each terminal of BCM harness connector in suspect malfunctioning system and ground.
   SUSPECT SYSTEM TERMINAL CONTINUITY



   Suspect system	Terminals				Continuity
   	BCM
   	Connector	Terminal
   1	M18	Input 1	6	Ground	No
   		Output 1	36
   2		Input 2	5
   		Output 2	35
   3		Input 3	4
   		Output 3	34
   4		Input 4	3
   		Output 4	33
   5		Input 5	2
   		Output 5	32

OK or NG

• OK : GO TO 4.
• NG : Check harness between BCM and combination switch for open or short circuit.

1. Turn lighting switch and wiper switch to OFF.
2. Set wiper dial to position 4.
3. Connect BCM and combination switch connectors.
4. Turn ignition switch on.
5. Check BCM output terminal voltage waveform of suspect malfunctioning system.
   SUSPECT SYSTEM TERMINAL CONTINUITY



   Suspect system	Terminals
   	Combination switch (+)
   	Connector	Terminal
   1	M28	Input 1	1
   2		Input 2	2
   3		Input 3	3
   4		Input 4	4
   5		Input 5	5

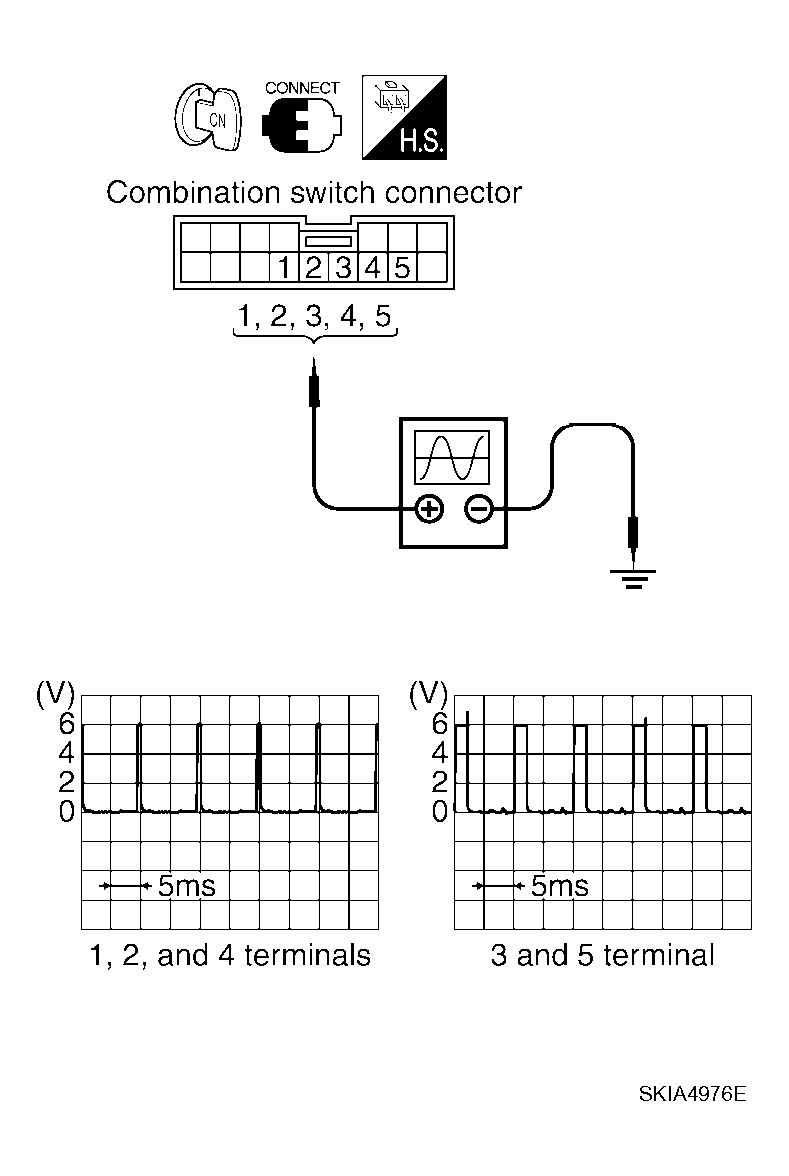

   Fig 3: Identifying BCM Output Terminal Voltage Waveform Of Suspect Malfunctioning System

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : Open circuit in combination switch, GO TO 5.
• NG : Replace BCM. Refer to "BCM ".

Referring to table below, perform combination switch inspection.

• : Inspection End.
