Write Configuration Procedure

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.
    Fig 1: Locating Data Link Connector
    G04187192Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.
    Fig 4: Consult-II SELECT TEST ITEM Display Screen
    G04136565Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.
    Fig 5: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "JA60" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model. Refer to "MODEL VARIATION ".

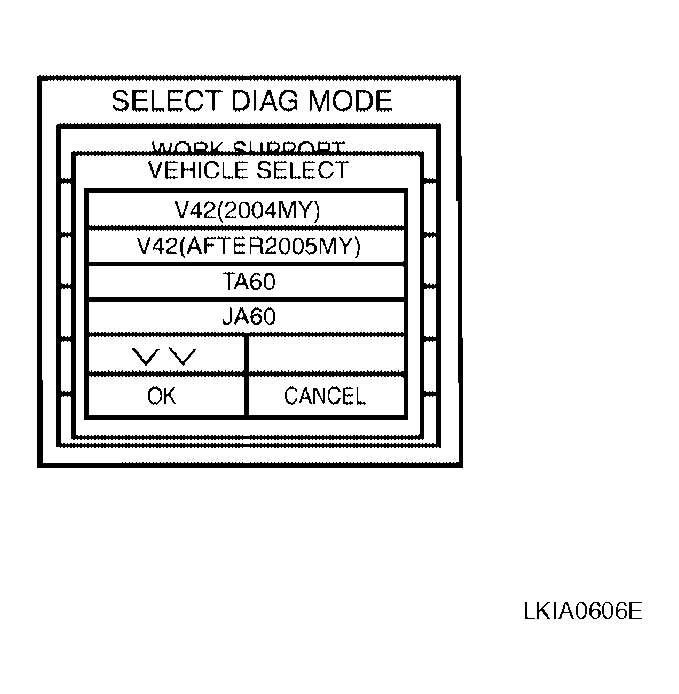

    Fig 6: Display VEHICLE SELECT Screen
    G04136580Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.

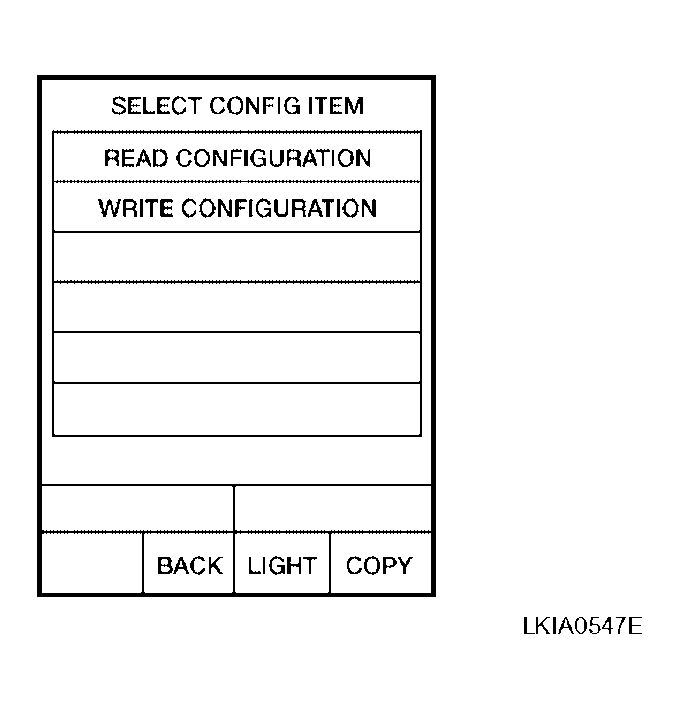

    Fig 7: Display SELECT CONFIG ITEM Screen
    G04136581Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "YES".

    For canceling, touch "NO".

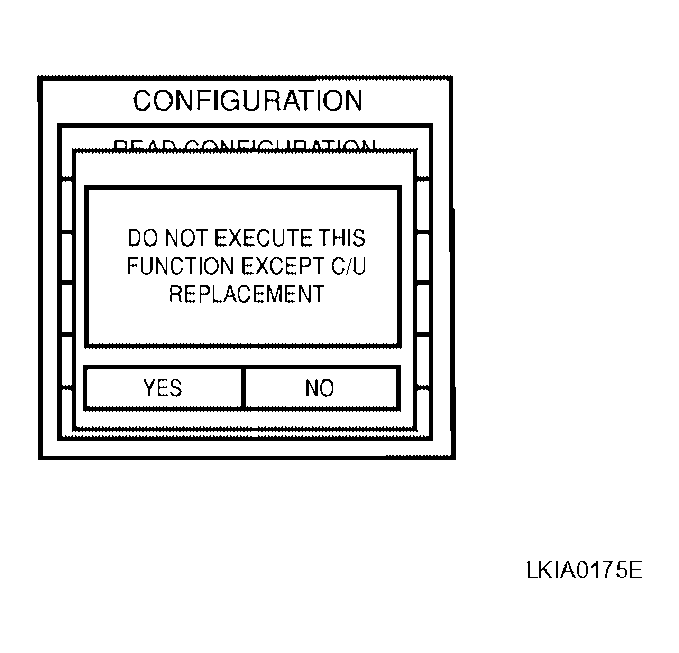

    Fig 8: Display CONFIGURATION Screen
    G04136582Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "WITH" or "WITHOUT" on "WRITE CONFIGURATION" screen based on the following ITEM LIST.
    • Depending on CONSULT-II software version being used, some or all of the write configuration items shown in the following configuration lists may be displayed. If an item does not appear on the CONSULT-II "WRITE CONFIGURATION" screen(s), then it is an auto setting item and it cannot be manually set or changed.
      ITEM LIST

      ITEM SET VAL
      DTRL WITH <=> WITHOUT
      NOTE: Confirm vehicle model. Refer to "MODEL VARIATION ".
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of new BCM is same as the desirable configuration.

    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.

  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

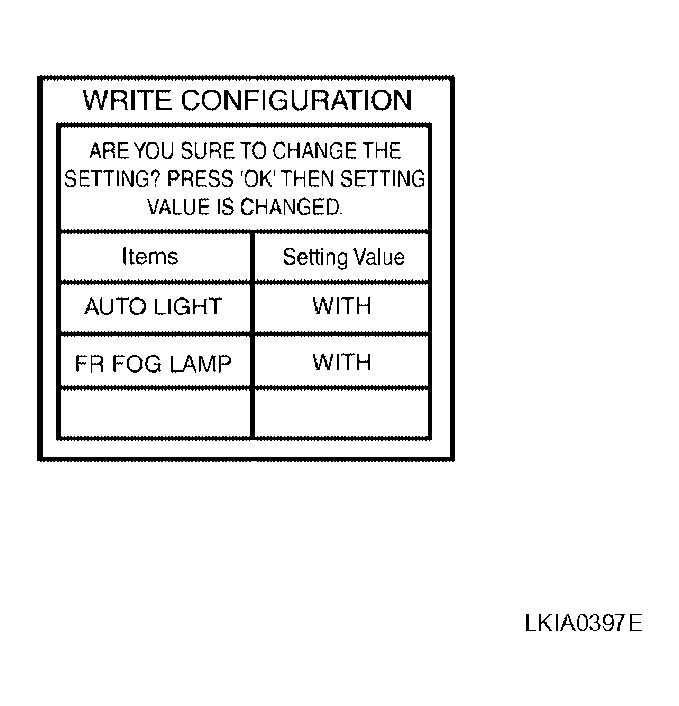

    Fig 9: Display WRITE CONFIGURATION Screen (1 Of 4)
    G04136583Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.

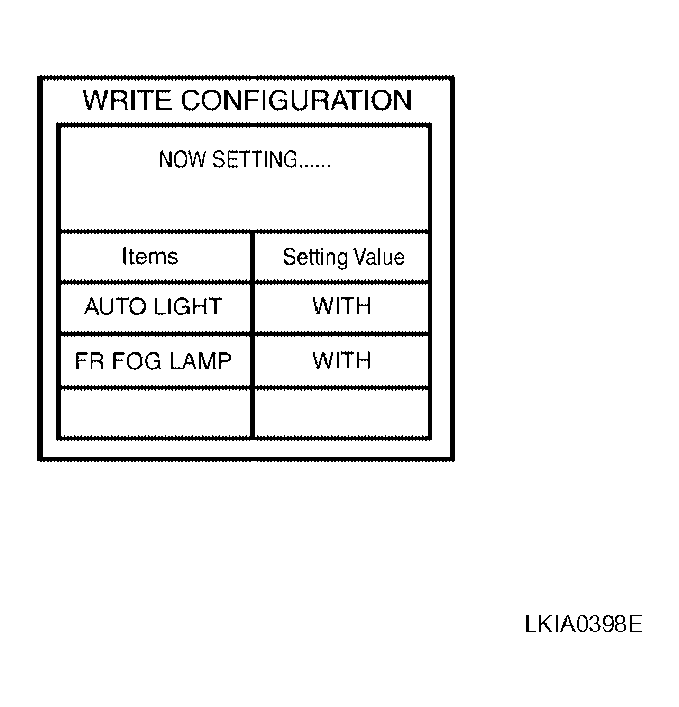

    Fig 10: Display WRITE CONFIGURATION Screen (2 Of 4)
    G04136584Courtesy of NISSAN MOTOR CO., U.S.A.
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step  9.

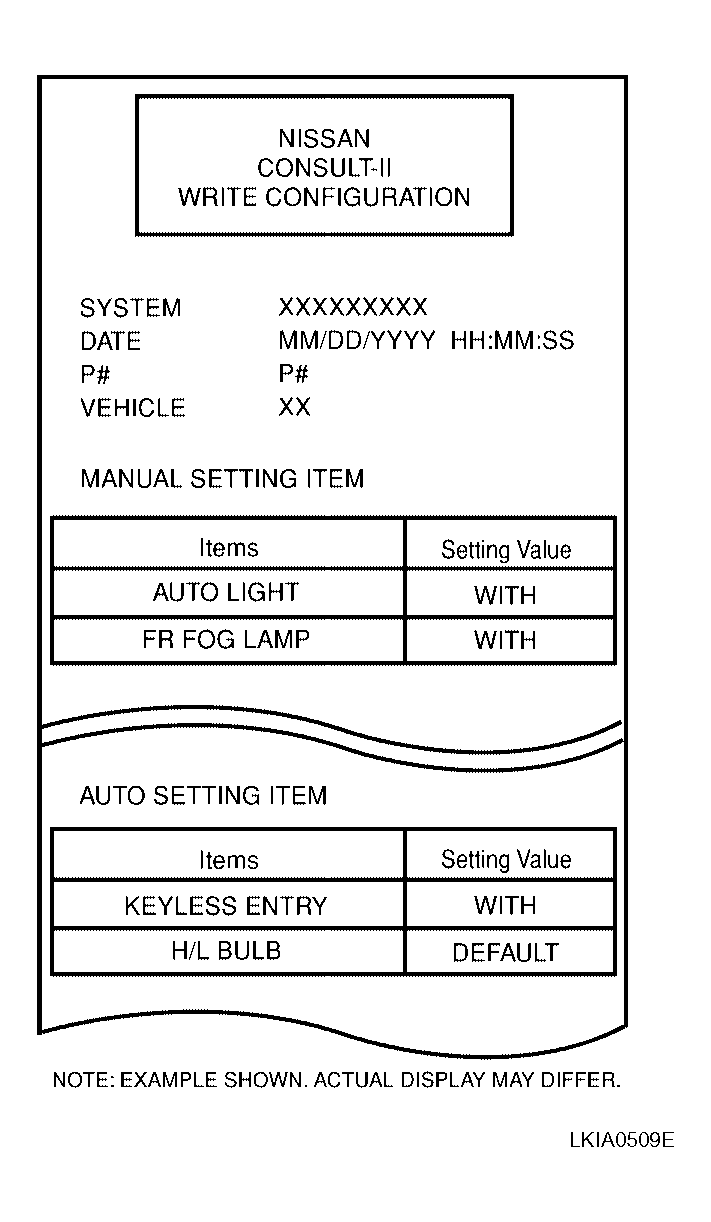

    Fig 11: Display WRITE CONFIGURATION Screen (3 Of 4)
    G04136585Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.

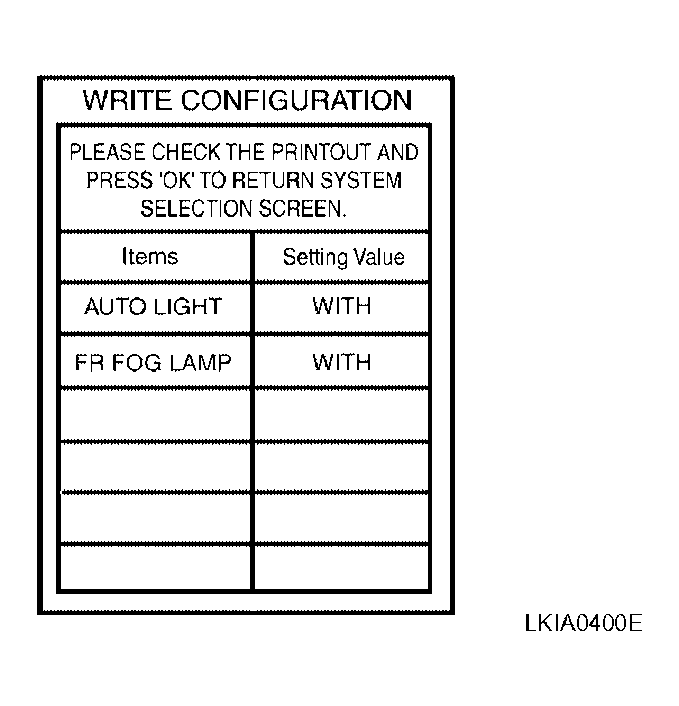

    Fig 12: Display WRITE CONFIGURATION Screen (4 Of 4)
    G04136586Courtesy of NISSAN MOTOR CO., U.S.A.
