CAN Communication Unit: Notes
WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Go to CAN system, when selecting your CAN system type from the following table.
CAN COMMUNICATION SYSTEM DESCRIPTION CHART
| Body type | Wagon | |||
| Axle | 2WD | 4WD | ||
| Engine | VK56DE | |||
| Transmission | A/T | |||
| Brake control | VDC | |||
| ICC system | x | x | ||
| CAN system type | 1 | 2 | 3 | 4 |
| CAN system trouble diagnosis | CAN SYSTEM (TYPE 1) | CAN SYSTEM (TYPE 2) | CAN SYSTEM (TYPE 3) | CAN SYSTEM (TYPE 4) |
| x: Applicable | ||||
NOTE:

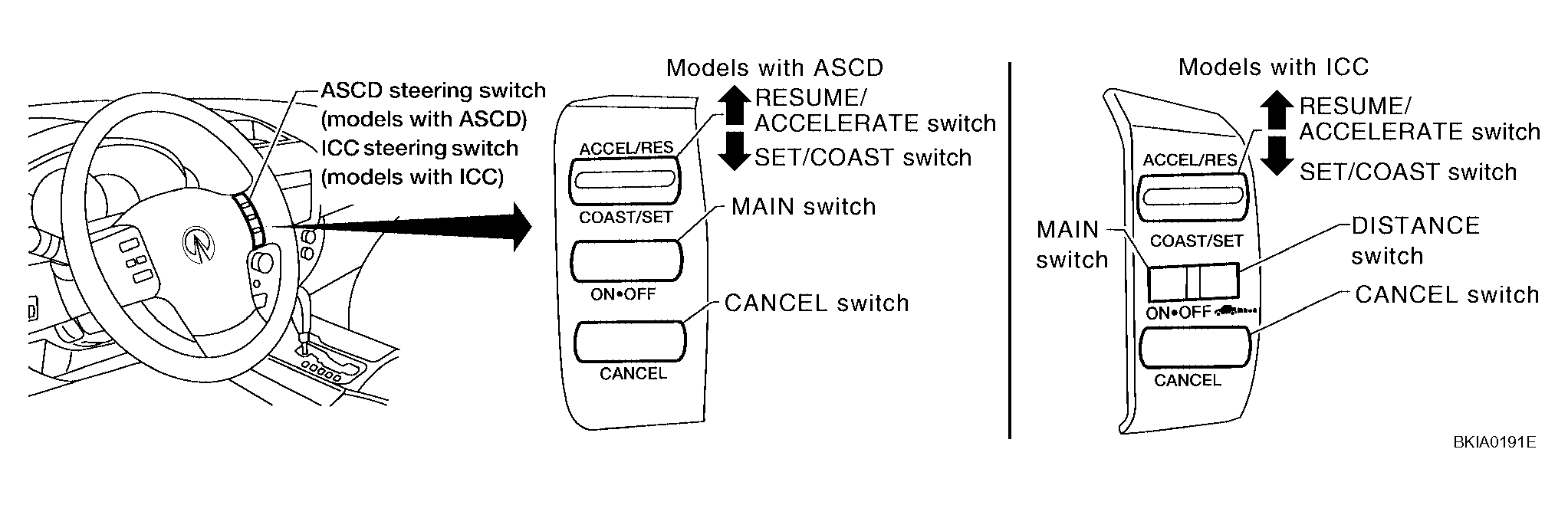

Vehicles equipped with ICC can be identified by the presence of a ICC switch.
