ASCD Indicator: Wiring Diagram

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For PG, go to SYSTEM WIRING DIAGRAMS .

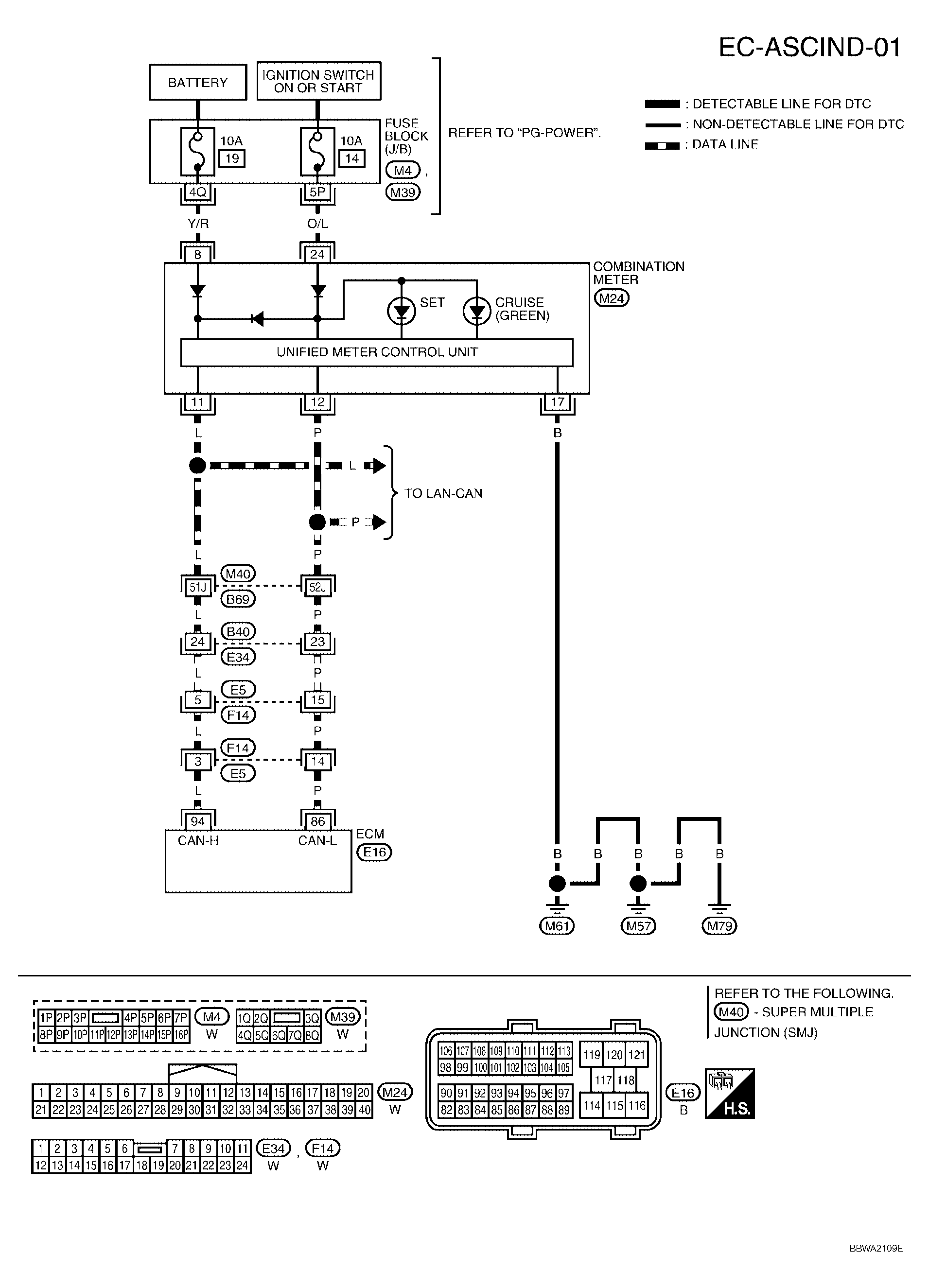

Fig 1: EC-ASCIND-01 - Wiring Diagram
G04133227Courtesy of NISSAN MOTOR CO., U.S.A.
