VQ35DE 2WD Models: Notes

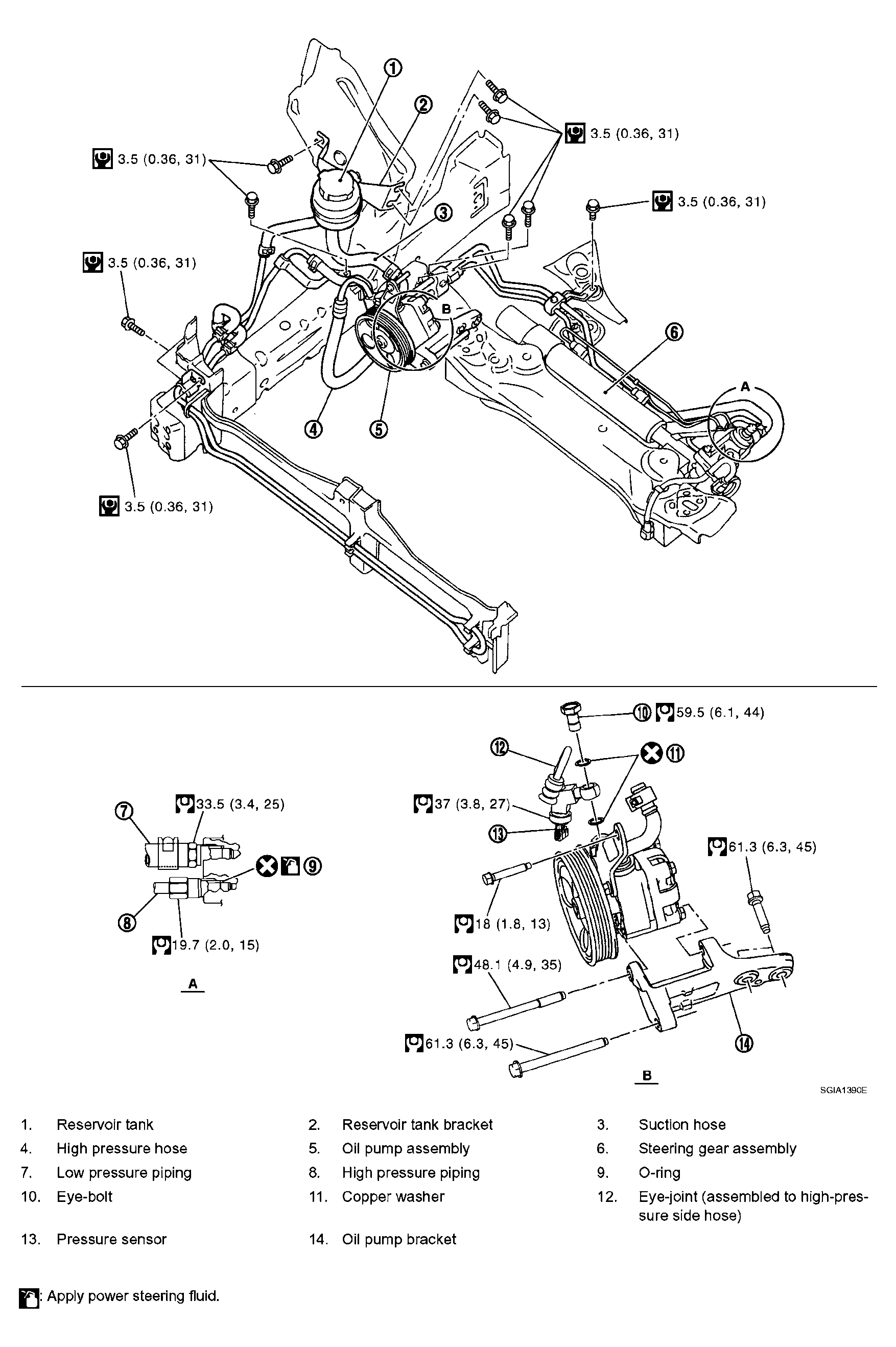

Fig 1: Hydraulic Line Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
