Disassembly and Assembly: Components

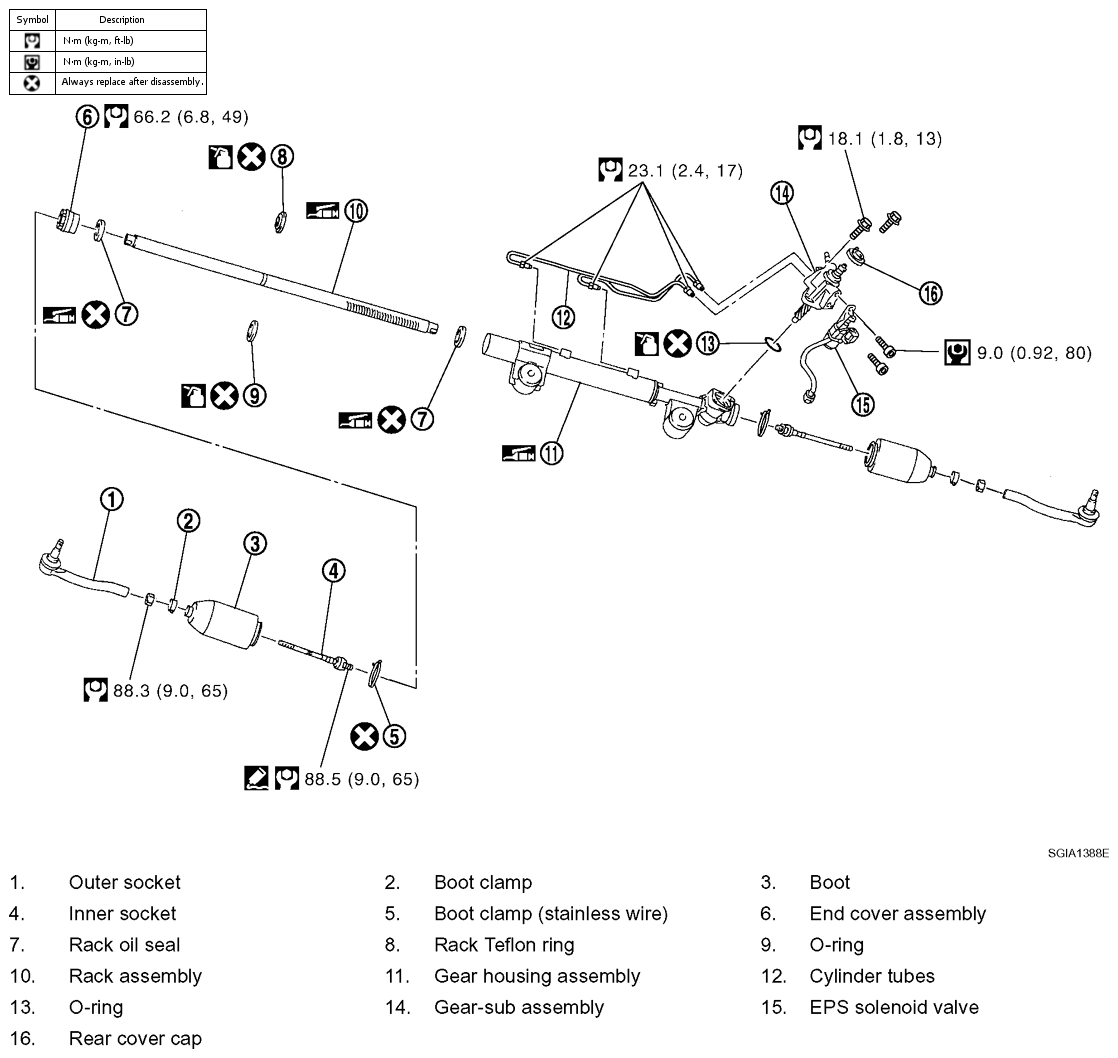

Fig 1: Power Steering Gear Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Disassemble and assemble steering gear assembly by securing the mounting area in a vise using copper plates.
Clean steering gear assembly with kerosene before disassembling. Be careful to avoid splashing or applying any kerosene over connector of discharge port or return port.
