Steering Column

STEERING COLUMN SPECIFICATION

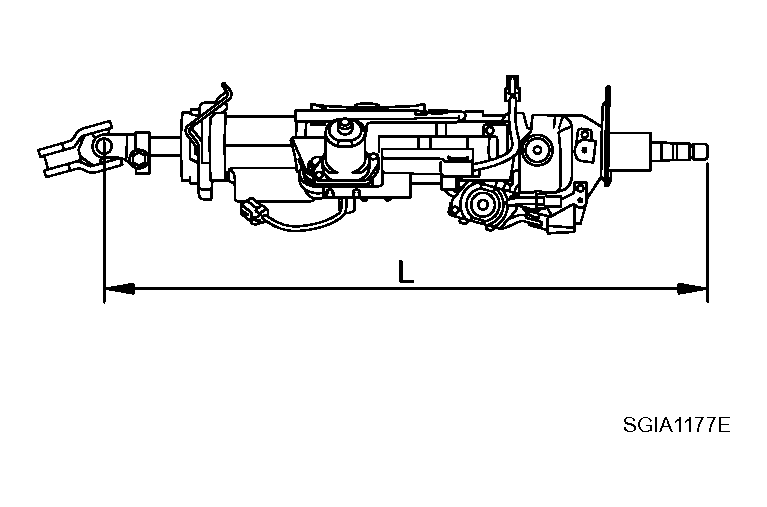

Steering column length "L"  Telescopic maximum  551 - 555 mm (21.69 - 21.85 in)
Telescopic minimum  591 - 595 mm (23.27 - 23.43 in)
G04144895
