Steering Gear

STEERING GEAR SPECIFICATION

Steering gear model PR26AF
Drive type 2WD AWD

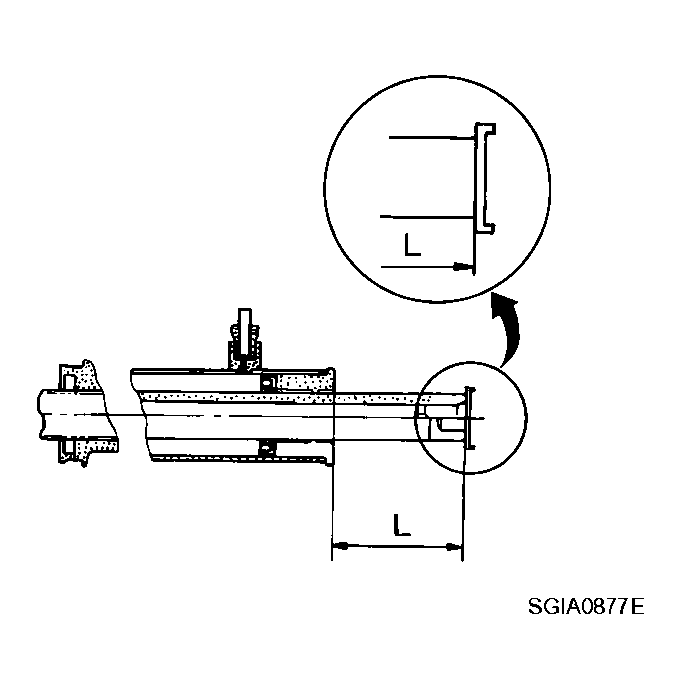

Rack neutral position, dimension "L" (rack stroke) 68.5 mm (2.697 in) 67.0 mm (2.638 in)
G04144897
