Inspection After Assembly

Check tilt and telescopic mechanism operating range "L¹ ", "L² " as shown in Fig 1 .

Tilt operating range "L ¹  ": 37.5 mm (1.476 in)

Telescopic operating range "L ²  ": 40 mm (1.57 in)

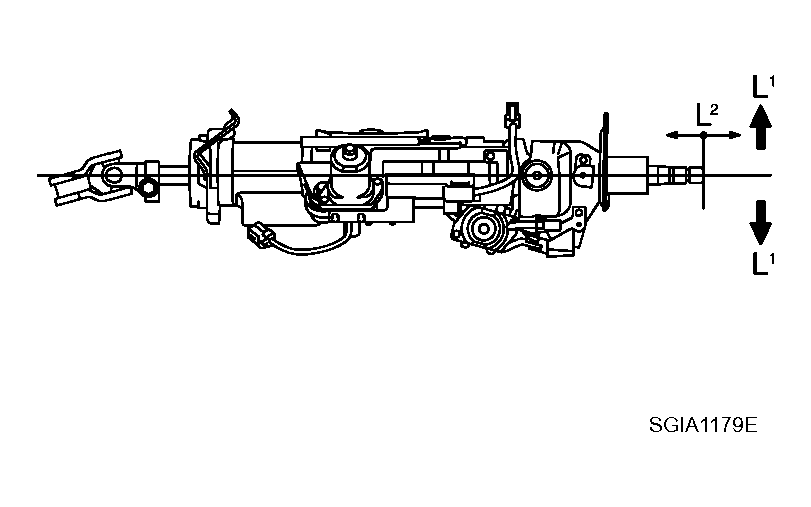

Fig 1: Measuring Tilt And Telescopic Mechanism Operating Range

Courtesy of NISSAN MOTOR CO., U.S.A.
