Removal and Installation: Components

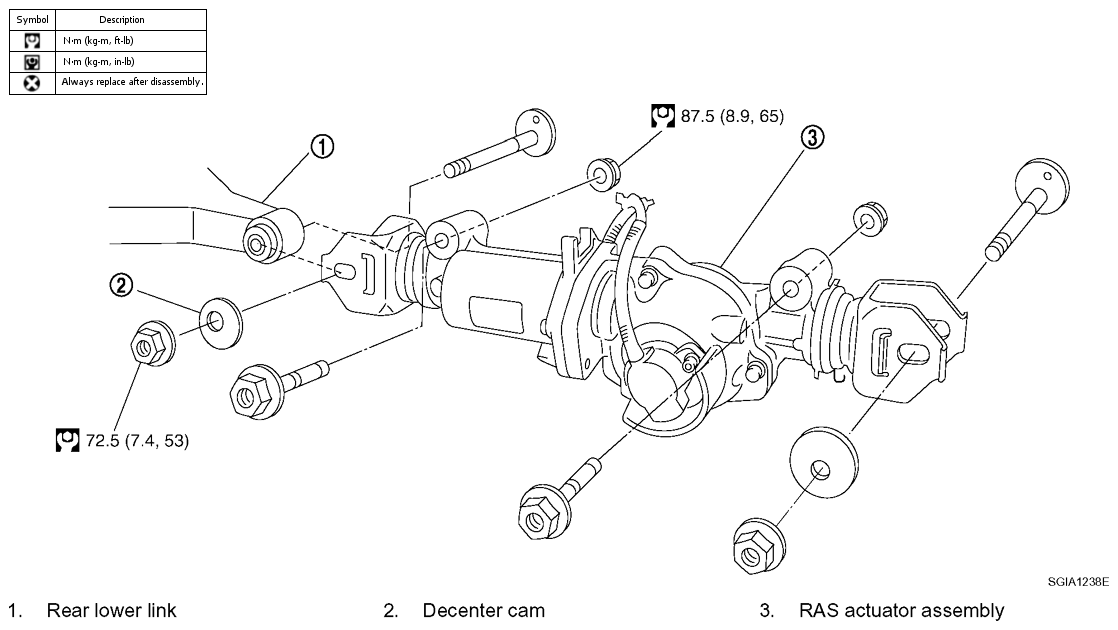

Fig 1: Rear Active Steer Replacement Components With Torque Specifications
G04144922Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS ", for the symbols in the figure.
