Components (Models with Rear Active Steer)

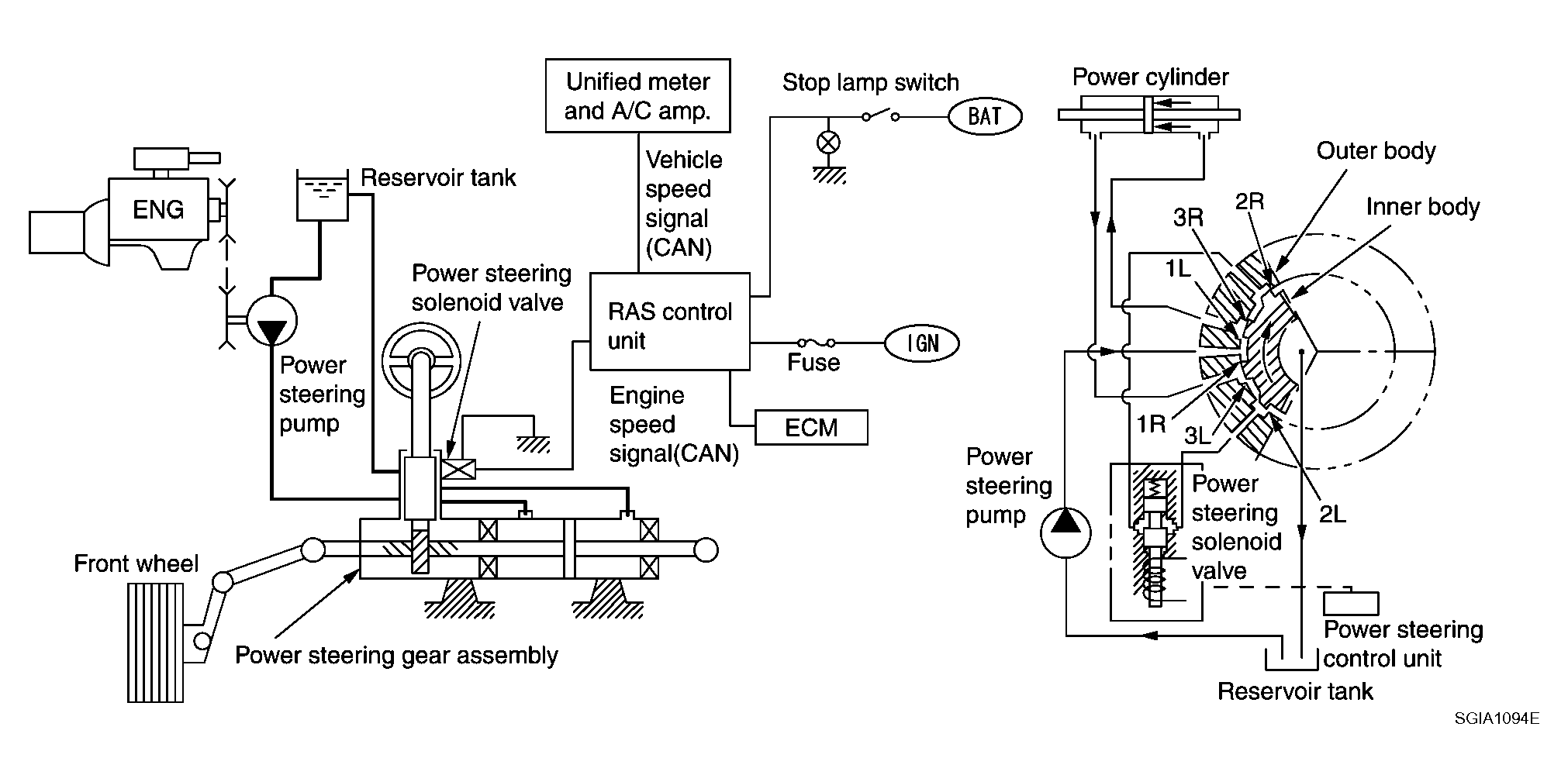

Fig 1: Identifying Steering Control System Components (Models With Rear Active Steer)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
