Front Suspension Assembly: Components

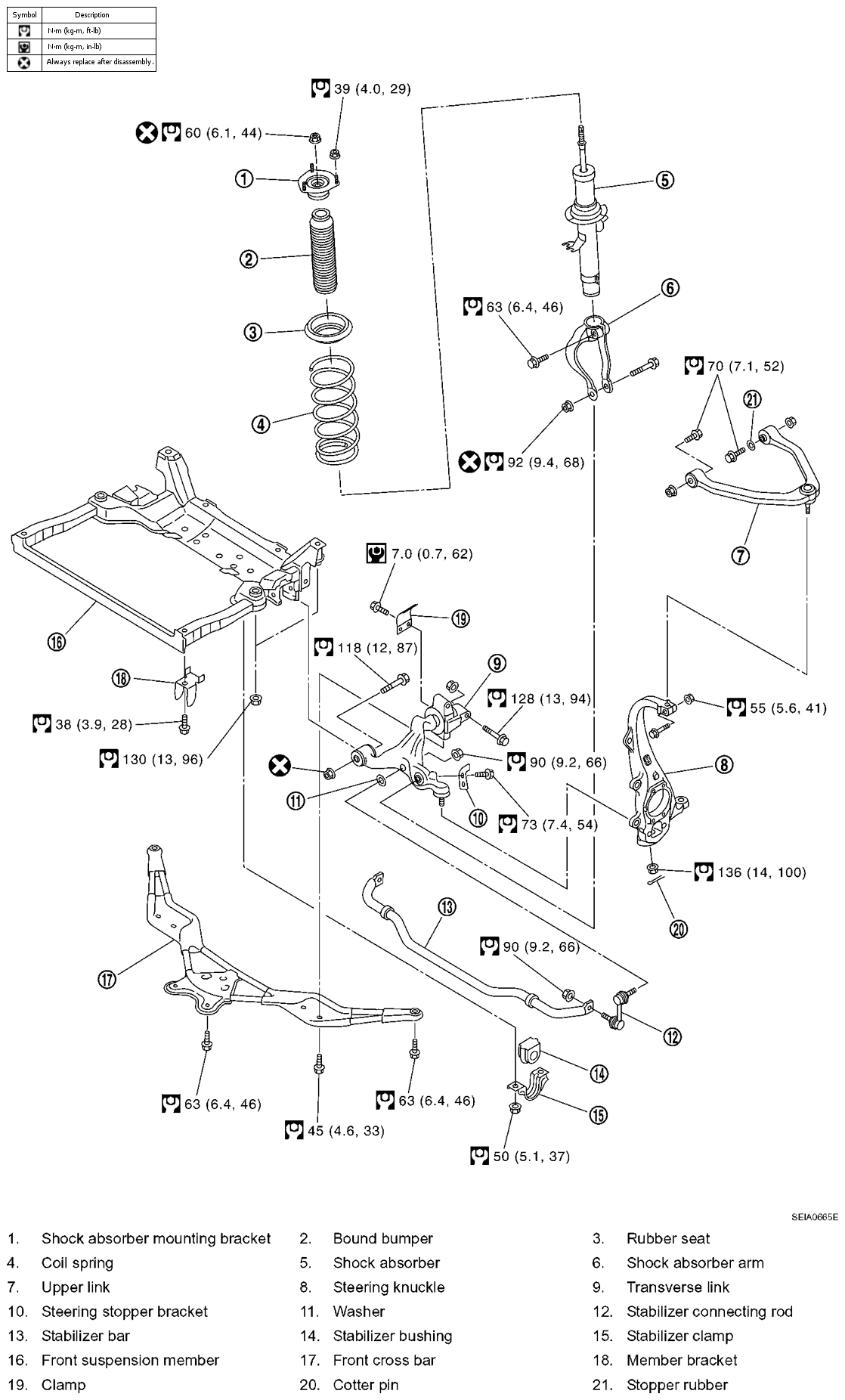

Fig 1: Exploded View Of Front Suspension Components With Torque Specifications
G04144613Courtesy of NISSAN MOTOR CO., U.S.A.
