Clutch And Band Chart

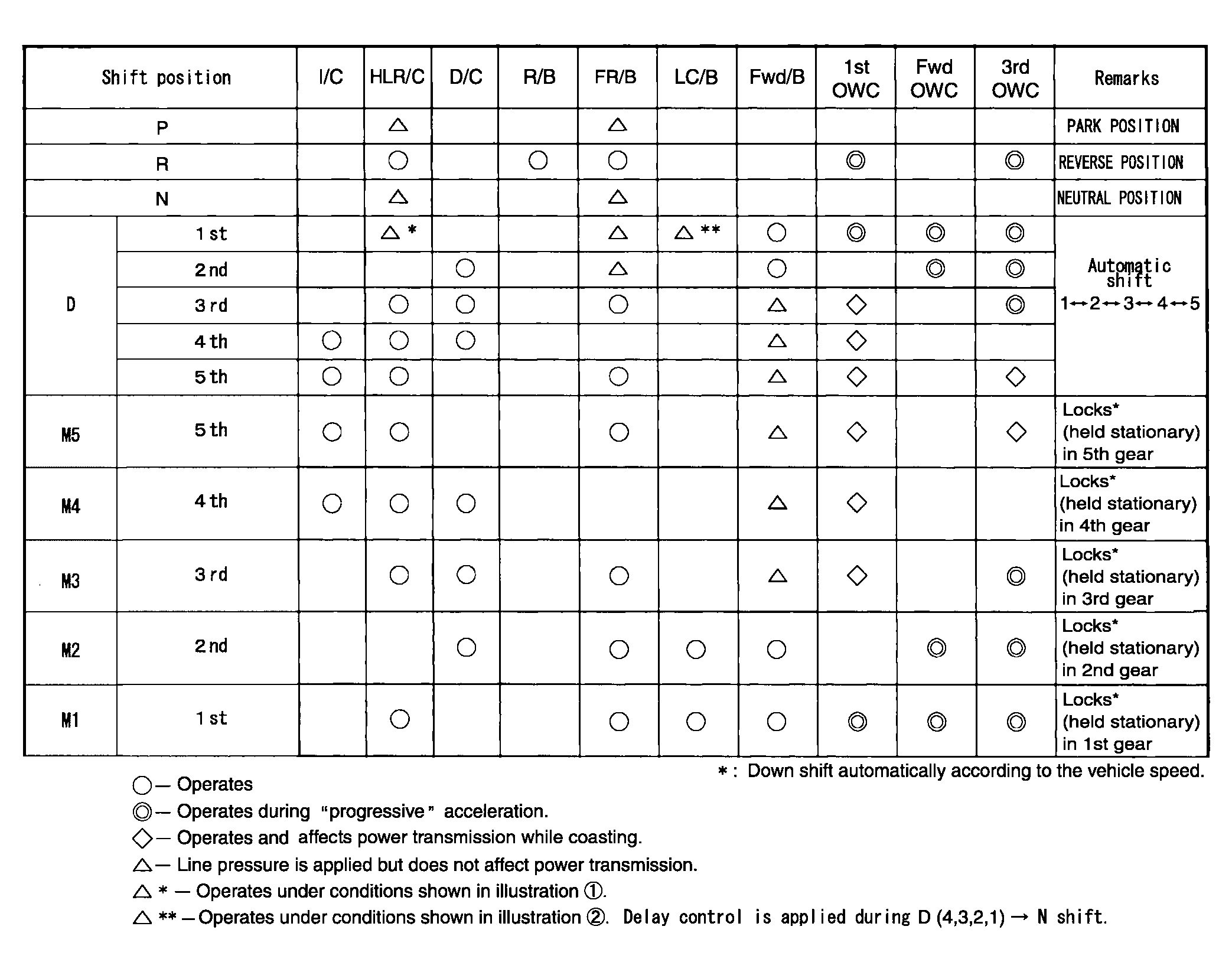

Fig 1: Clutch And Band Chart
G04139096Courtesy of NISSAN MOTOR CO., U.S.A.

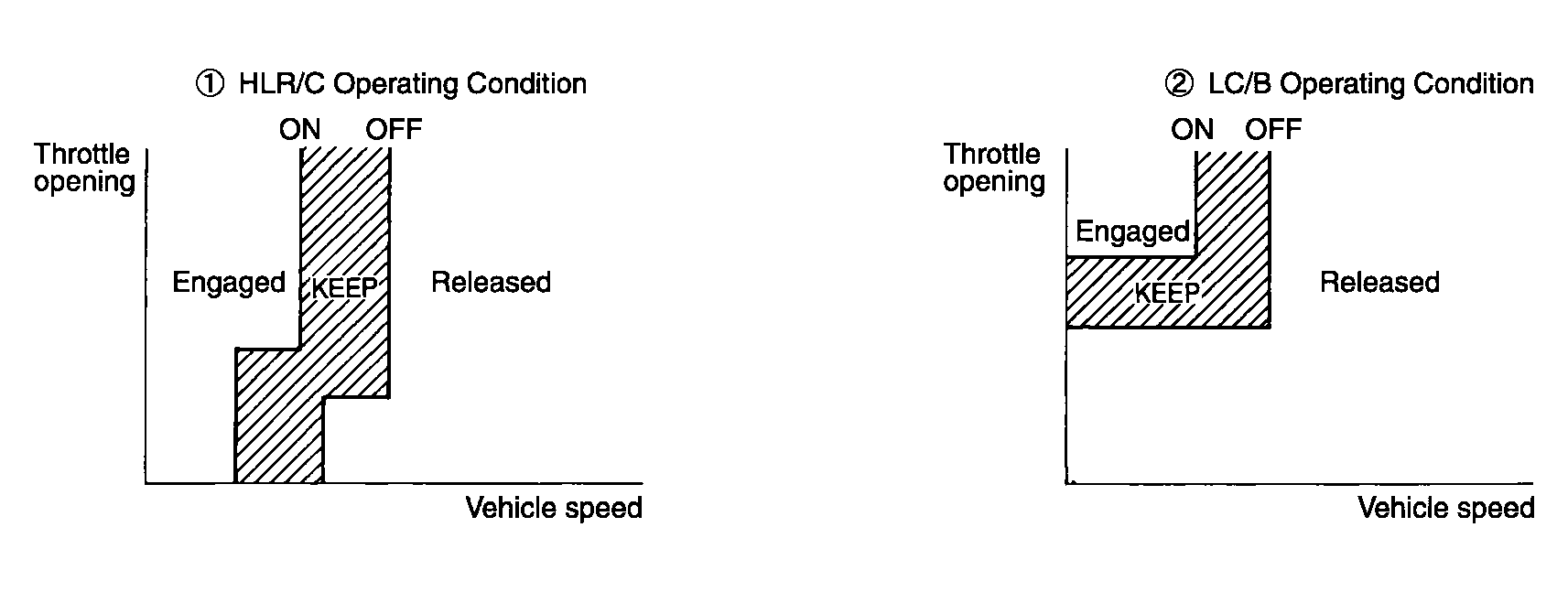

Fig 2: Throttle Opening Angle/Vehicle Speed Graph
G04139097Courtesy of NISSAN MOTOR CO., U.S.A.
