Removal and Installation (AWD Models): Components

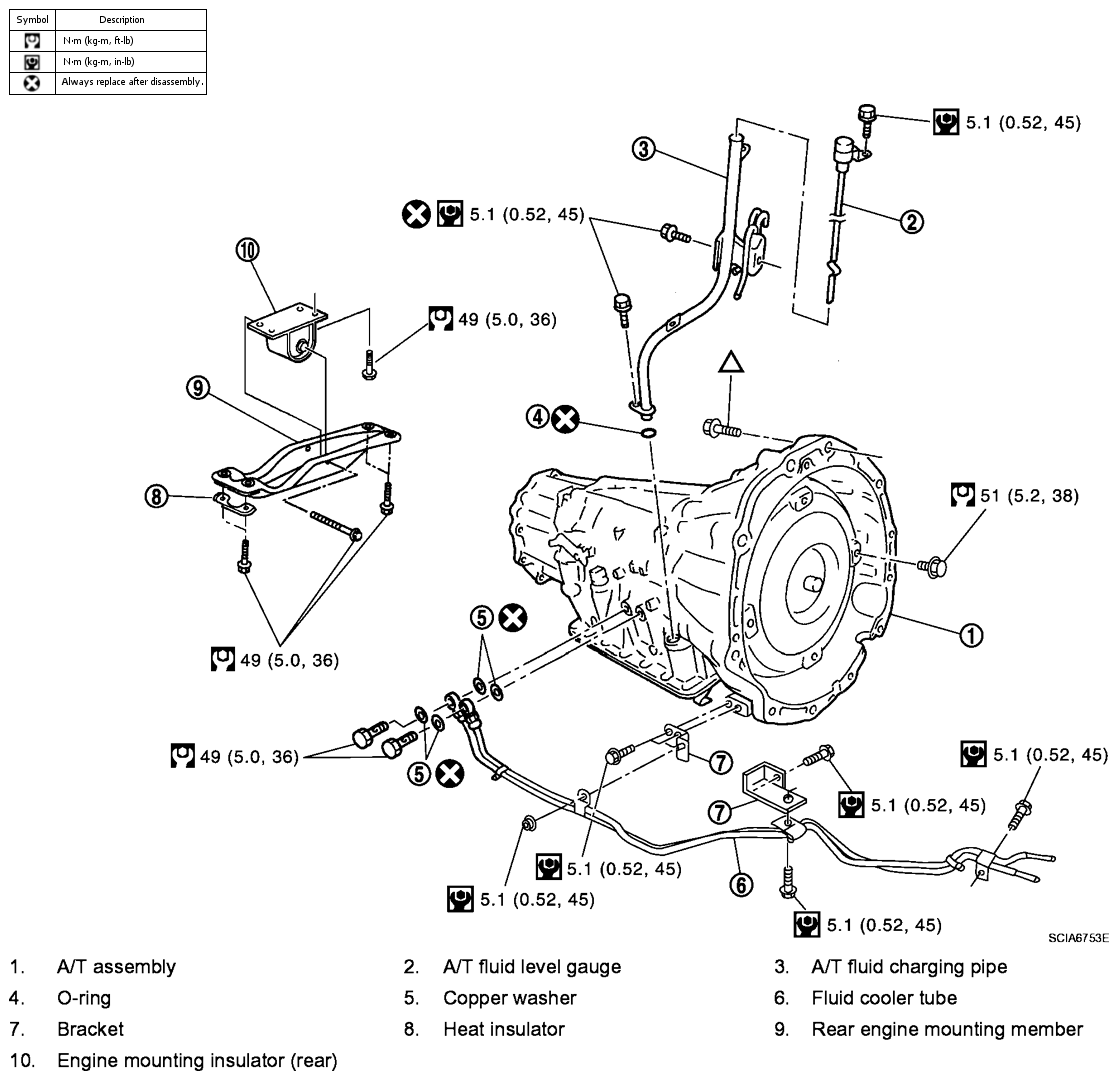

Fig 1: Transmission Assembly With Torque Specifications (AWD Models)
G04139410Courtesy of NISSAN MOTOR CO., U.S.A.
